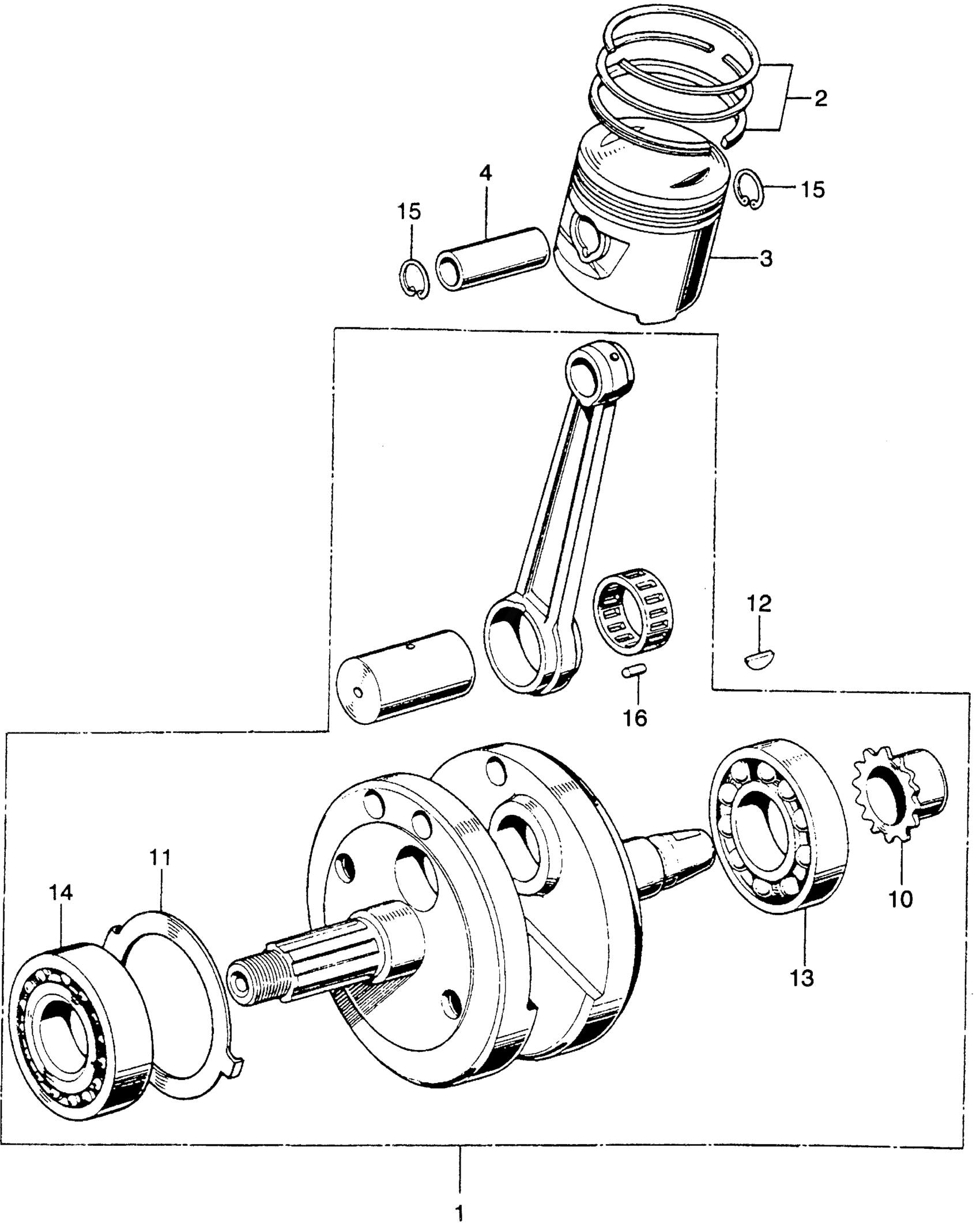

Honda SL125A MOTORCYCLE, JPN, VIN# SL125S-1000001 TO SL125S-1038068 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE) This part replaces 13000-324-000.

13000-331-770

Unavailable

1

CRANKSHAFT (NOT AVAILABLE)

13000-331-770

Unavailable

2

RING SET, PISTON (STD) (TEIKOKU) This part replaces 13011-324-014.

13011-330-005

Unavailable

2

RING SET, PISTON (STD) (TEIKOKU)

13011-330-005

Unavailable

2

RING SET, PISTON (OS 0.25) (TEIKOKU) This part replaces 13021-324-014.

13021-330-005

Unavailable

2

RING SET, PISTON (OS 0.25) (TEIKOKU)

13021-330-005

Unavailable

2

RING SET, PISTON (OS 0.50) (TEIKOKU) This part replaces 13031-324-014.

13031-330-005

$70.03

2

RING SET, PISTON (OS 0.50) (TEIKOKU)

13031-330-005

$70.03

2

RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE) This part replaces 13041-324-014.

13041-330-005

Unavailable

2

RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE)

13041-330-005

Unavailable

2

RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE) This part replaces 13051-324-014.

13051-330-005

Unavailable

2

RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE)

13051-330-005

Unavailable

3

PISTON This part replaces 13101-324-000.

13101-323-405

Unavailable

3

PISTON This part replaces 13101-330-000.

13101-323-405

Unavailable

3

PISTON (OS 0.25)

13102-323-405

Unavailable

3

PISTON (OS 0.25) This part replaces 13102-324-000.

13102-323-405

Unavailable

3

PISTON (OS 0.25) This part replaces 13102-330-000.

13102-323-405

Unavailable

3

PISTON (0.50) This part replaces 13103-324-000.

13103-323-405

Unavailable

3

PISTON (0.50) This part replaces 13103-330-000.

13103-323-405

Unavailable

3

PISTON (0.75) This part replaces 13104-324-000.

13104-330-000

Unavailable

3

PISTON (0.75)

13104-330-000

Unavailable

3

PISTON (1.00) This part replaces 13105-324-000.

13105-330-000

Unavailable

3

PISTON (1.00)

13105-330-000

Unavailable

4

PIN, PISTON

13111-286-000

$26.03

4

PIN, PISTON

13111-440-000

$24.55

10

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$41.06

10

SPROCKET, TIMING (16T)

14311-958-000

$41.06

11

WASHER, THRUST (30MM) (NOT AVAILABLE)

90451-324-300

Unavailable

12

KEY, WOODRUFF

90741-253-000

Unavailable

13

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-071-000.

91001-071-003

$46.05

13

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

14

BEARING, ROLLER

91011-107-760

Unavailable

14

BEARING, ROLLER This part replaces 91011-324-000.

91011-107-760

Unavailable

15

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

16

ROLLER (3X10) (NOT AVAILABLE)

96220-30100

Unavailable
