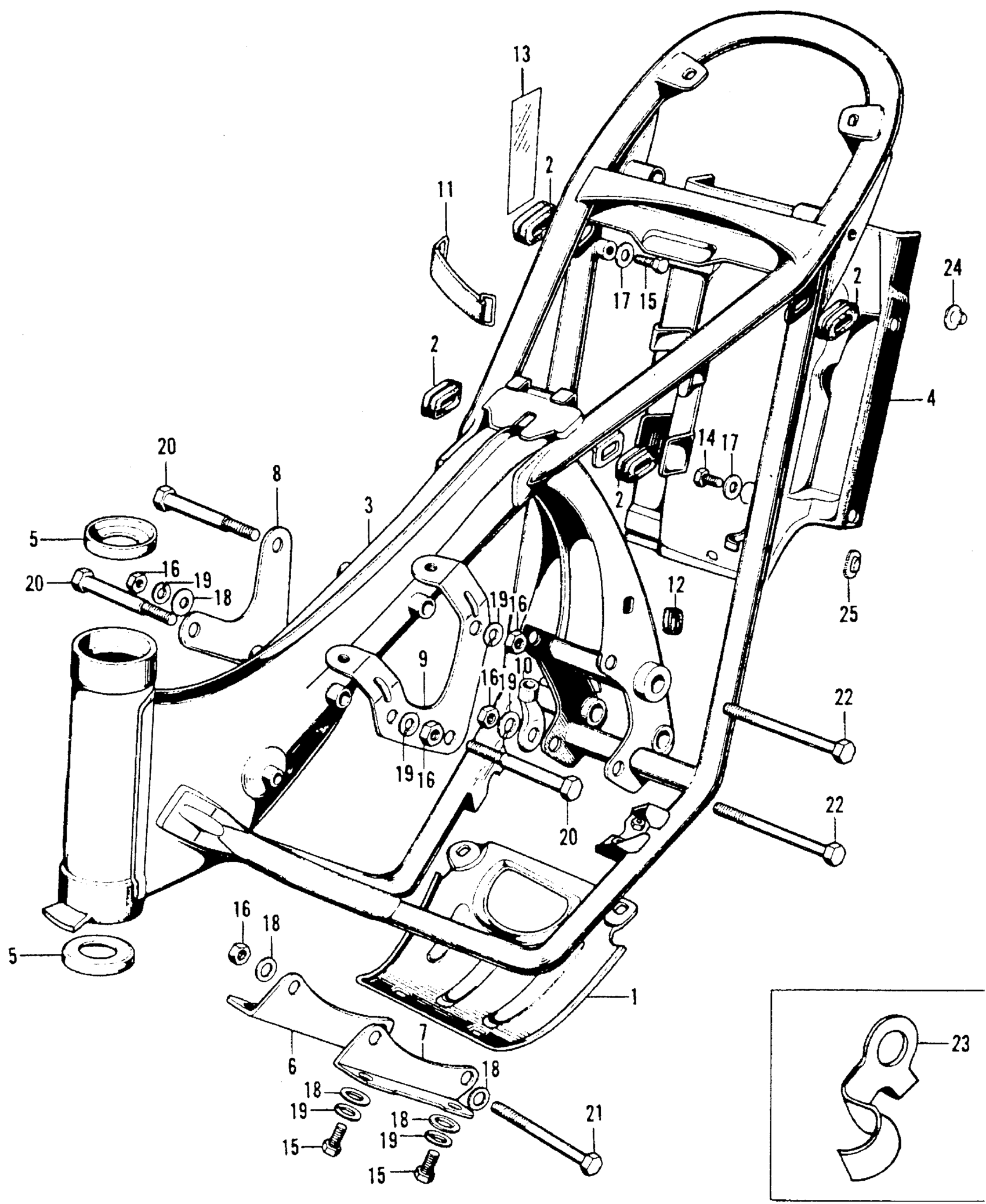

Honda SL100K1A MOTORCYCLE, JPN, VIN# SL100-200001 FRAME K0-K1 Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-331-670

Unavailable

2

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

3

FRAME

50010-110-671Z

Unavailable

3

FRAME This part replaces 50100-110-671Z.

50010-110-671Z

Unavailable

3

FRAME *NH35* (CLOUD SILVER)

50100-110-673AU

Unavailable

4

FENDER B, RR. This part replaces 80120-331-000.

80120-331-010

Unavailable

5

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

5

RACE, STEERING TOP BALL

50301-041-010

$12.39

5

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

6

PLATE, L. ENGINE HANGER (NOT AVAILABLE)

50351-110-030Z

Unavailable

7

PLATE, R. ENGINE HANGER (NOT AVAILABLE)

50352-110-030Z

Unavailable

8

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50353-107-000

Unavailable

9

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE) This part replaces 50354-107-010.

50354-330-000

Unavailable

10

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-107-000

Unavailable

12

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

13

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

14

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

15

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

15

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

16

NUT, HEX. (8MM)

94030-08000

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, PLAIN (8MM)

94101-08000

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49

20

BOLT, HEX. (8X70) This part replaces 95300-08070.

95301-08070-00

$2.47

20

BOLT, HEX. (8X70) This part replaces 95300-08070-00.

95301-08070-00

$2.47

21

BOLT, HEX. (8X90) (NOT AVAILABLE) This part replaces 95300-08090.

95300-08090-00

Unavailable

22

BOLT, HEX. (8X111) This part replaces 95300-08111.

95300-08111-00

$2.92

22

BOLT, HEX. (8X111)

95300-08111-00

$2.92

23

CLIP, ALTERNATOR WIRE

32907-331-000

Unavailable

24

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

25

WASHER, DISTANCE (7X10) (NOT AVAILABLE)

90554-028-000

Unavailable
