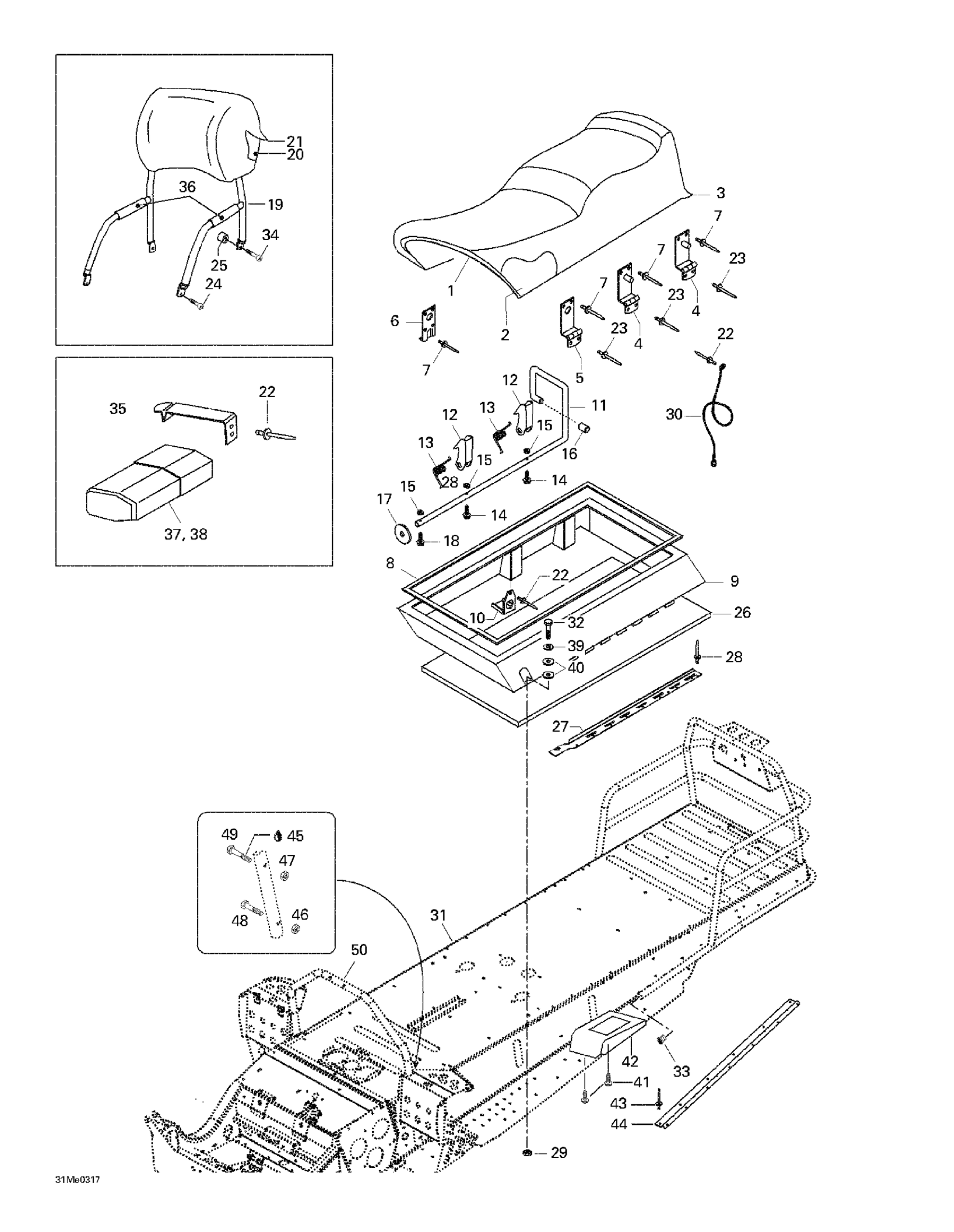

Ski-Doo Skandic SUV 600, 2003 09- Cab, Console, Seat Diagram

#

Description
Price

1

Sub Seat

M519394

Unavailable

2

Foam Seat | Skandic 500F. Skandic 600.

M5244982

Unavailable

3

Cover Seat | Skandic 500F. Skandic 600.

605148631

Unavailable

4

HINGE - Call your local BRP dealership

M549874

Unavailable

5

HINGE - Call your local BRP dealership

M5440581

Unavailable

6

Lock Plate

M549732

Unavailable

7

Rivet

M36071

Unavailable

8

SEALING STRIP PROFIL - Call your local BRP dealership

M5440059

Unavailable

9

Welded Seat Base Weld

M5142066

Unavailable

10

Support

M5443661

Unavailable

11

Pivot Pin

M5344987

Unavailable

12

Lock Tongue

M5443664

Unavailable

13

SPRING - Call your local BRP dealership

M5444439

Unavailable

14

Screw

M40146

Unavailable

15

Elastic Stop Nut M4

232541414

$0.58

16

Cap

M28019

Unavailable

17

Flat Washer 8 mm

234081410

$0.83

18

Screw M4 X 16

M40144

Unavailable

19

Backrest

M5245664

Unavailable

20

Backrest Foam

M539399

Unavailable

21

COVER-BACKREST - Call your local BRP dealership This part replaces M5340917.

5340917

Unavailable

22

Rivet This part replaces M36009.

36009

$1.15

23

Rivet

M36489

Unavailable

24

SCREW-SOCKET - Call your local BRP dealership

M40388

Unavailable

25

Spacer

M5440665

Unavailable

26

Foam | SUV 600

M5346079

Unavailable

27

RH Support

M5144029

Unavailable

LH Support

M5144028

Unavailable

28

Rivet

36108

$1.90

29

NUT M6 - Call your local BRP dealership

M33066

Unavailable

30

Retainer Cable | SUV 600

M5447746

Unavailable

31

Frame Ass'y

M5148299

Unavailable

32

Socket Head Screw M6 X 20

M40052

Unavailable

33

PLUG - Call your local BRP dealership

M28136

Unavailable

34

Allen Screw

M40389

Unavailable

35

SPRING-HOLDER - Call your local BRP dealership

M5344443

Unavailable

36

RH Grip, 250 mm

415050300

Unavailable

37

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

38

TOOL KIT - Call your local BRP dealership

529035500

Unavailable

39

Lock Washer M6, Black

234161471

$0.53

40

Flat Washer 6 mm

234062410

$0.77

41

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

42

RH Rear Footrest | Europe

414975300

Unavailable

LH Rear Footrest | Europe

414975400

Unavailable

43

RIVET - Call your local BRP dealership

M36097

Unavailable

44

ANTISLIPERRY RUNNING BAND - Call your local BRP dealership

605348881

Unavailable

45

Loctite 243, 10 ml

293800060

$21.49

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Hex. Nut M6

232061414

$0.53

48

Hex. Screw M6 X 40

207064044

$1.48

49

Hex. Screw M6 X 30

207063044

$1.26

50

Handle Support

M5143873

Unavailable
