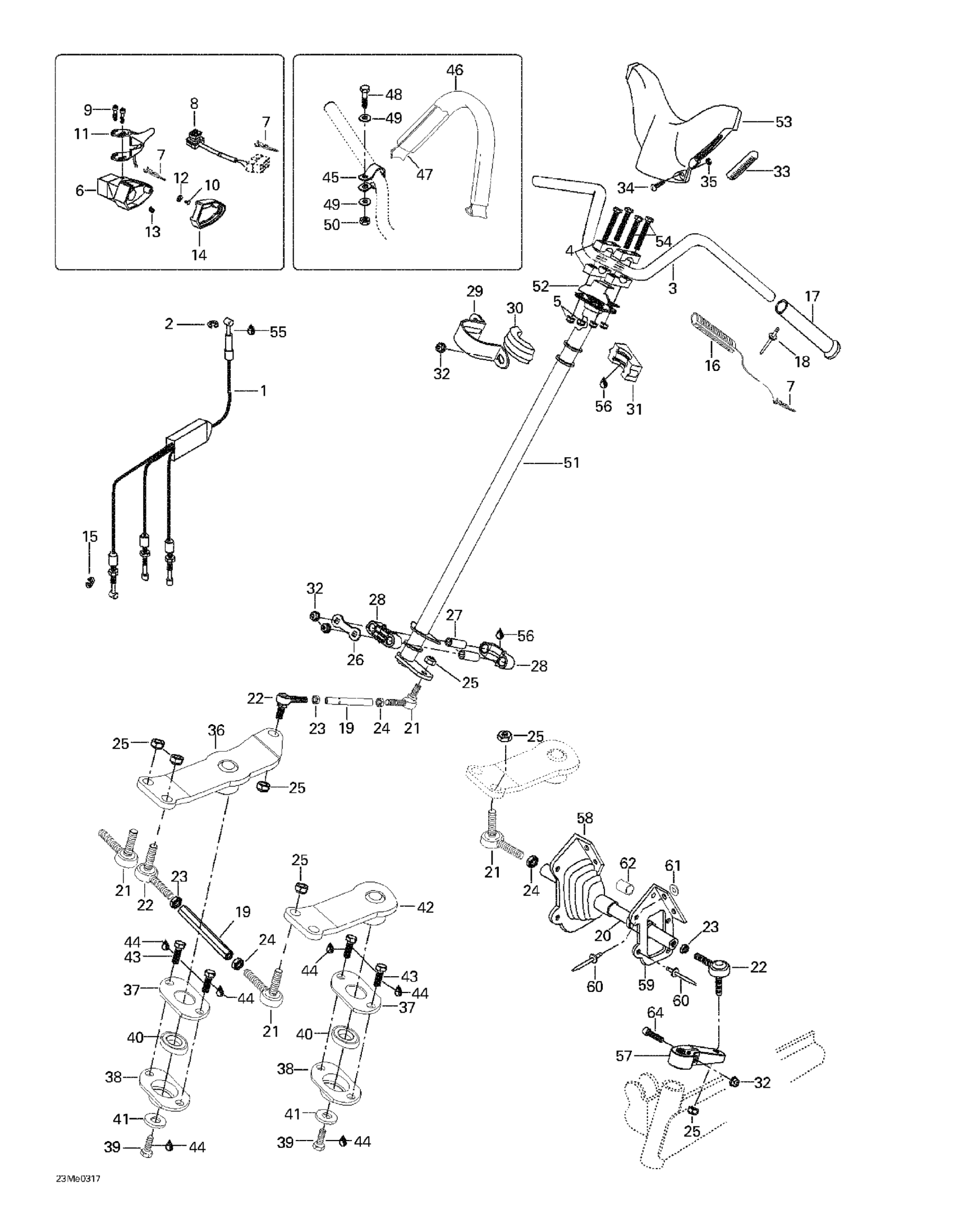

Ski-Doo Skandic SUV 600, 2003 07- Steering System Diagram

#

Description
Price

1

THROTTLE CABLE - Call your local BRP dealership

M5246328

Unavailable

2

Circlip

M31038

Unavailable

3

BAR-HANDLE - Call your local BRP dealership

M529751

Unavailable

4

Support Guidon *Support-Steer.

M548448

Unavailable

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

7

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

8

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

9

Flange Screw

732601143

$4.12

10

Screw

414473200

Unavailable

11

Handle Ass'y

512059348

$93.99

12

Washer | Skandic 600.

M20026

Unavailable

13

Socket Set Screw M8 X 10

414440800

$4.12

14

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

15

Circlip

414753500

$0.71

16

Heating Grip

515175664

$71.99

17

Grip | WAKE This part replaces M5340464.

506152483

$12.17

18

Rivet

36005

$2.11

19

SHORT TIE ROD - Call your local BRP dealership

605448308

Unavailable

20

ROD_LINK - Call your local BRP dealership

605448307

Unavailable

21

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

22

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

23

RH NUT - Call your local BRP dealership

M33019

Unavailable

24

LH NUT - Call your local BRP dealership

M33017

Unavailable

25

Elastic Flange Nut M10

232501416

$1.48

26

Stopper Plate

506150600

$4.39

27

Housing Bushing

506150500

$7.99

28

Housing Half

506150400

$7.62

29

Retaining Support

M5343381

Unavailable

30

BUSHING - Call your local BRP dealership

572064500

Unavailable

31

Bushing

572064400

Unavailable

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Key Way

572023900

Unavailable

34

Screw

M40156

Unavailable

35

NUT M5 - Call your local BRP dealership

M33062

Unavailable

36

RH WELDED LEVER - Call your local BRP dealership

605348402

Unavailable

37

Cover

M5345380

Unavailable

38

Bearing Support

605350644

$40.99

39

Hex. Screw

M40337

Unavailable

40

Ball Bearing

293350115

$12.11

41

WASHER - Call your local BRP dealership

M5446279

Unavailable

42

LH WELDED LEVER - Call your local BRP dealership

605348403

Unavailable

43

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

44

Loctite 243, 10 ml

293800060

$21.49

45

Support Plate

506148200

Unavailable

46

Strap Ass'y | Package XMR

506152115

$44.49

47

Strap Ass'y | Package XMR

506152115

$44.49

48

Hex. Screw M6 X 25

207162544

$1.15

49

Flat Washer 6 mm

234061410

$1.36

50

Elastic Stop Nut M6

232561414

$0.55

51

Main Tube

605248864

Unavailable

52

Support

M5444196

Unavailable

53

Steering Padding

605348925

Unavailable

54

Socket Head Screw M8 X 45

M40286

Unavailable

55

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

56

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

57

Steering Arm

M5348261

Unavailable

58

RH Tie Rod Cap

570024800

Unavailable

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

59

RH Cap Plate

517241200

Unavailable

LH CAP PLATE - Call your local BRP dealership

517241300

Unavailable

60

Black, Rivet

M36036

$1.69

61

Washer 5,3 mm

20008

$0.74

62

BUSHING - Call your local BRP dealership

572036500

Unavailable

63

Screw

414473200

Unavailable

64

Allen Screw M8 X 45

M40828

Unavailable
