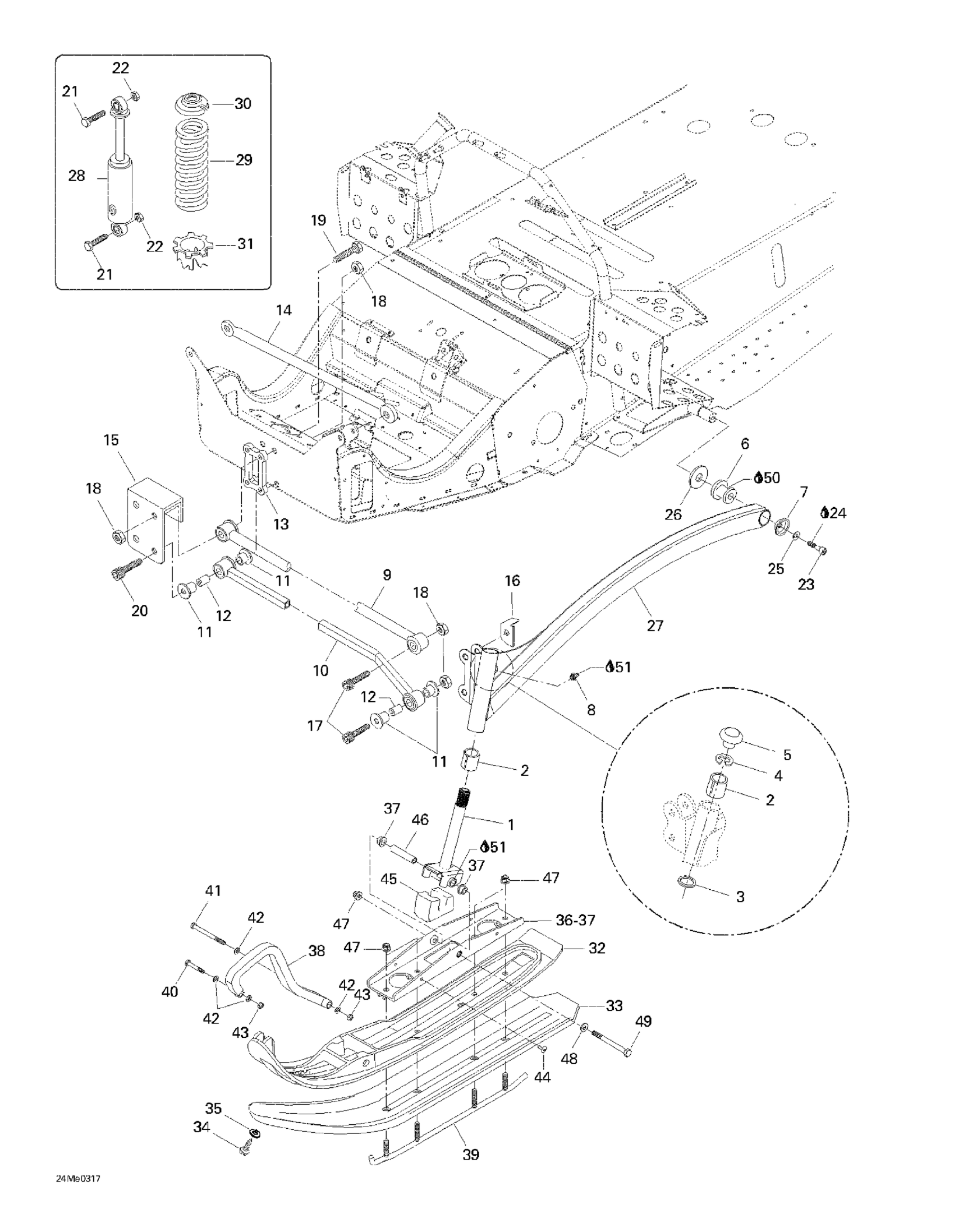

Ski-Doo Skandic SUV 600, 2003 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski Leg

506151234

Unavailable

2

Cushion

505070003

$9.23

3

WASHER - Call your local BRP dealership

505070004

Unavailable

4

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

5

Cap

572091300

$12.99

6

DAMPER - Call your local BRP dealership

570062200

Unavailable

7

Cup | Package Hunter

705007171

$7.89

8

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

$11.99

9

UPPER ARM ASS'Y - Call your local BRP dealership

M5348207

Unavailable

10

Lower Arm Ass'y

M5248204

Unavailable

11

CUSHION - Call your local BRP dealership

506149100

$14.49

12

Bushing | 600 SUV

506149200

Unavailable

13

Lower Link Plate

M5345384

Unavailable

14

BAR - Call your local BRP dealership | SUV 600

605348306

Unavailable

15

Painted Link Plate

M5345716

Unavailable

16

RH Plate Locking

605448861

Unavailable

LH Plate Locking

605448862

Unavailable

17

Screw Allen M12 X 55

M40371

Unavailable

18

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

19

Screw M12 X 75

M40185

Unavailable

20

SCREW ALLEN M12 X 75 - Call your local BRP dealership

M40370

Unavailable

21

Screw M10x55

M40186

Unavailable

22

Elastic Locking Nut M10 X 1.5

233601416

$1.69

23

Screw Allen M8 X 20

M40810

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

Lock Washer 8 mm

234181401

$0.92

26

Shim Ring This part replaces M31013.

31013

$7.51

27

Rh Arm

M5248252

Unavailable

LH ARM - Call your local BRP dealership

M5248336

Unavailable

28

Front Shock | Includes 30 and 32 to 33

M23165

Unavailable

29

White Spring

M25061

Unavailable

30

Spring Seat

230076

$9.69

31

CAM - Call your local BRP dealership

M230078

Unavailable

32

Ski-Liner Flex

505070189

$127.99

33

Skiliner | 600 SUV This part replaces M5147975.

5147975

$111.99

34

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

35

Washer

20037

$2.11

36

Bridge Ass'y | Includes 36 - 37.

505070055A

Unavailable

37

BUSHING - Call your local BRP dealership

505070001

Unavailable

38

Black, Handle

505070963

$35.99

39

CARBIDE RUNNER - Call your local BRP dealership | 600 SUV

M5347354

Unavailable

40

Hex. Screw M8 X 50

207085044

$1.48

41

Hex. Screw M8 X 100 | 600 SUV

M40869

Unavailable

42

Washer

234681410

Unavailable

43

Hex. Elastic Stop Nut M8

232581414

$0.56

44

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

45

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

46

Spacer

506133300

$23.99

47

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

48

WASHER M10 - Call your local BRP dealership

20005

Unavailable

49

Hex. Screw M10 X 110 | 600 SUV

M40814

Unavailable

50

Grease, Super Lube

293550030

$28.99

51

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
