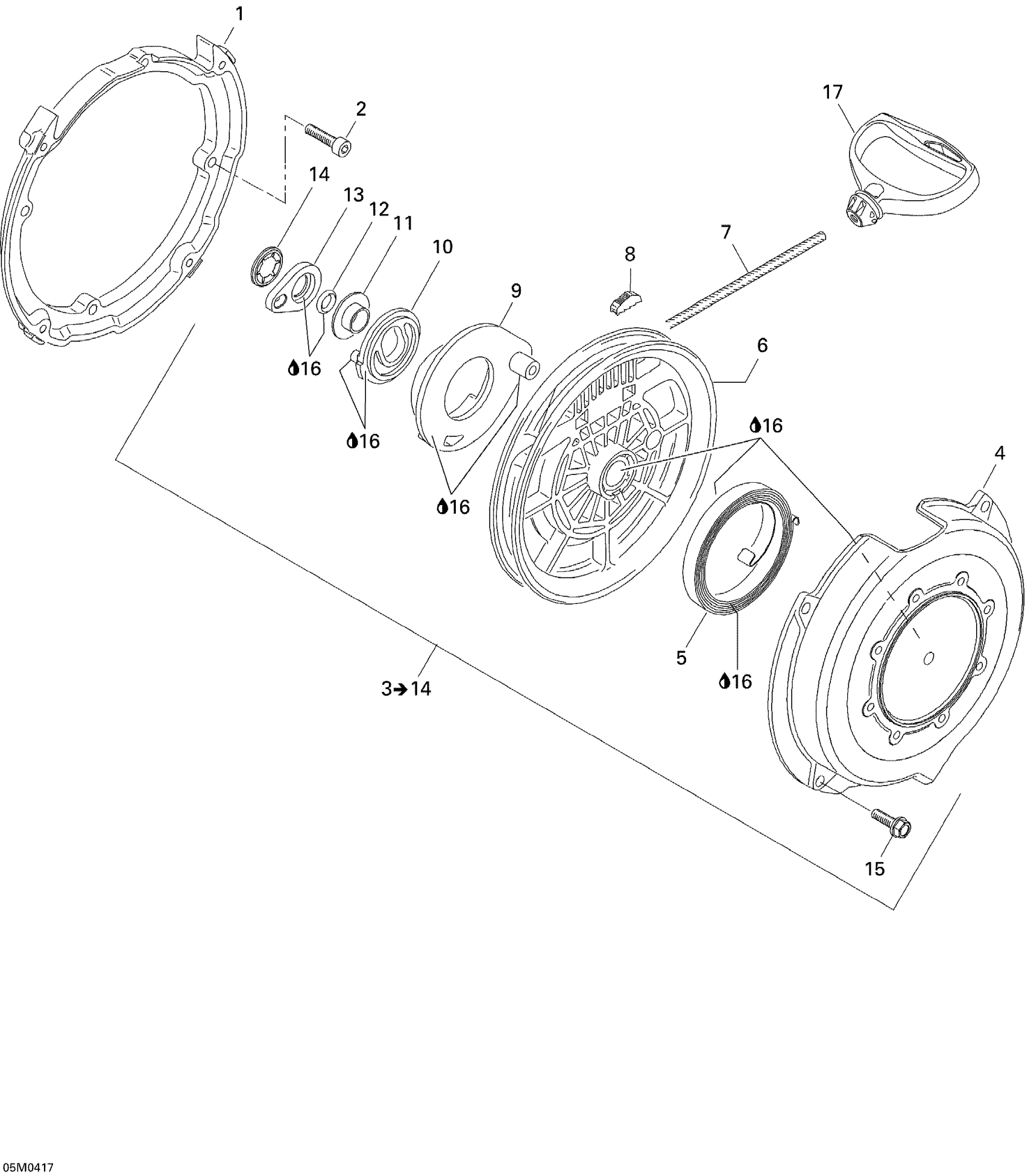

Ski-Doo Skandic LT 440F, 2004 Rewind Starter Diagram

#

Description
Price

1

Flange Connector

420810955

$105.35

2

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.25

3

Rewind Starter Ass'y | Includes 3 to 13

420888219

$166.12

4

Rewind Starter Ass'y | Includes 3 to 13

420888219

$166.12

5

Rewind Spring

420939115

$25.32

6

Rope Sheave

420852480

$65.99

7

Was 412500100 Rope-Starter

219704403

$10.15

8

Key Clamp

420852070

$3.50

9

Pawl

420852296

$19.20

10

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

11

Stage Sleeve

420847926

$14.54

12

O-Ring

420250400

$5.22

13

Lock Ring

420852520

$8.34

14

Locking Element

420845560

$2.03

15

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

16

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

17

Starter Grip

572084400

$14.54
