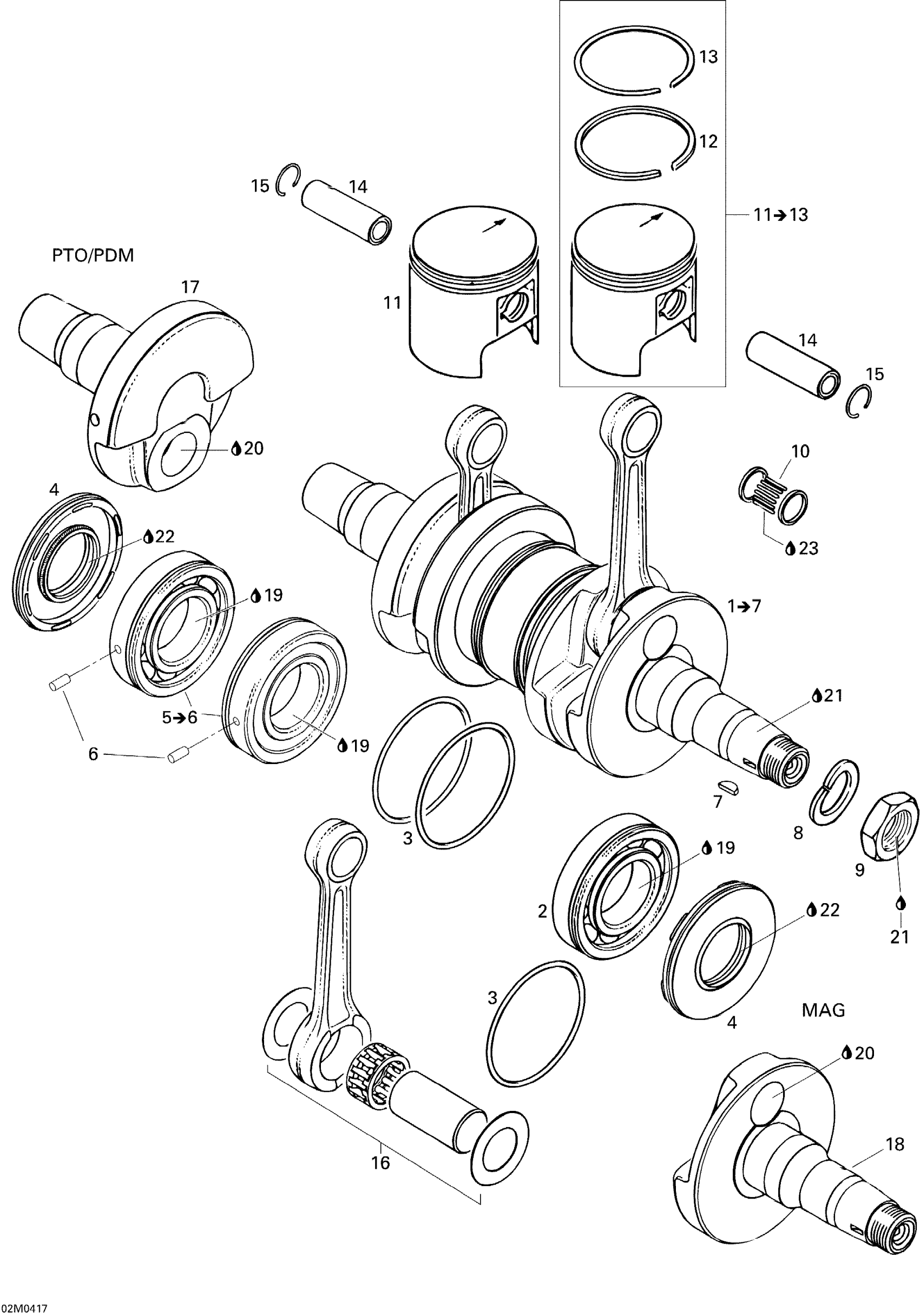

Ski-Doo Skandic LT 440F, 2004 Crankshaft And Pistons Diagram
#
Description
Price
1
Crankshaft | Includes 1 to 7
420889630
Unavailable
2
Bearing_Ball This part replaces 290832231.
420832584
Unavailable
3
O-Ring, 64 mm X 2 mm
293300022
Unavailable
4
Oil Seal This part replaces 290831952.
420831952
Unavailable
5
BALL BEARING - Call your local BRP dealership
420832574
Unavailable
6
Dowel Pin
420929972
Unavailable
7
Woodruff Key
420246055
Unavailable
8
Lock Washer, 22 mm
420945759
Unavailable
9
Hex. Nut, M22 X 1.5
420842239
Unavailable
10
NEEDLE BEARING - Call your local BRP dealership
420832325
Unavailable
11
PISTON - Call your local BRP dealership | Includes 11 to 13
420887485
Unavailable
11
PISTON - Call your local BRP dealership | Includes 11 to 13
420887486
Unavailable
11
PISTON - Call your local BRP dealership | Includes 11 to 13
420887487
Unavailable
12
RING R 67.5 - Call your local BRP dealership
420915960
Unavailable
12
RING R 67.75 - Call your local BRP dealership
420915961
Unavailable
12
RING R 68 - Call your local BRP dealership
420915962
Unavailable
13
RING L 67.5 - Call your local BRP dealership
420915845
Unavailable
13
RING L 67.75 - Call your local BRP dealership
420915846
Unavailable
13
RING L 68.0 - Call your local BRP dealership
420915847
Unavailable
14
PISTON PIN - Call your local BRP dealership
420916136
Unavailable
15
Piston Circlip
420945735
Unavailable
16
Rod Repair Kit
420889634
Unavailable
17
PTO Side Crankshaft
420818204
Unavailable
18
MAG SIDE HALF-CRANK - Call your local BRP dealership
420819010
Unavailable
19
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
20
Sealant Loctite 648
219703000
Unavailable
23
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
