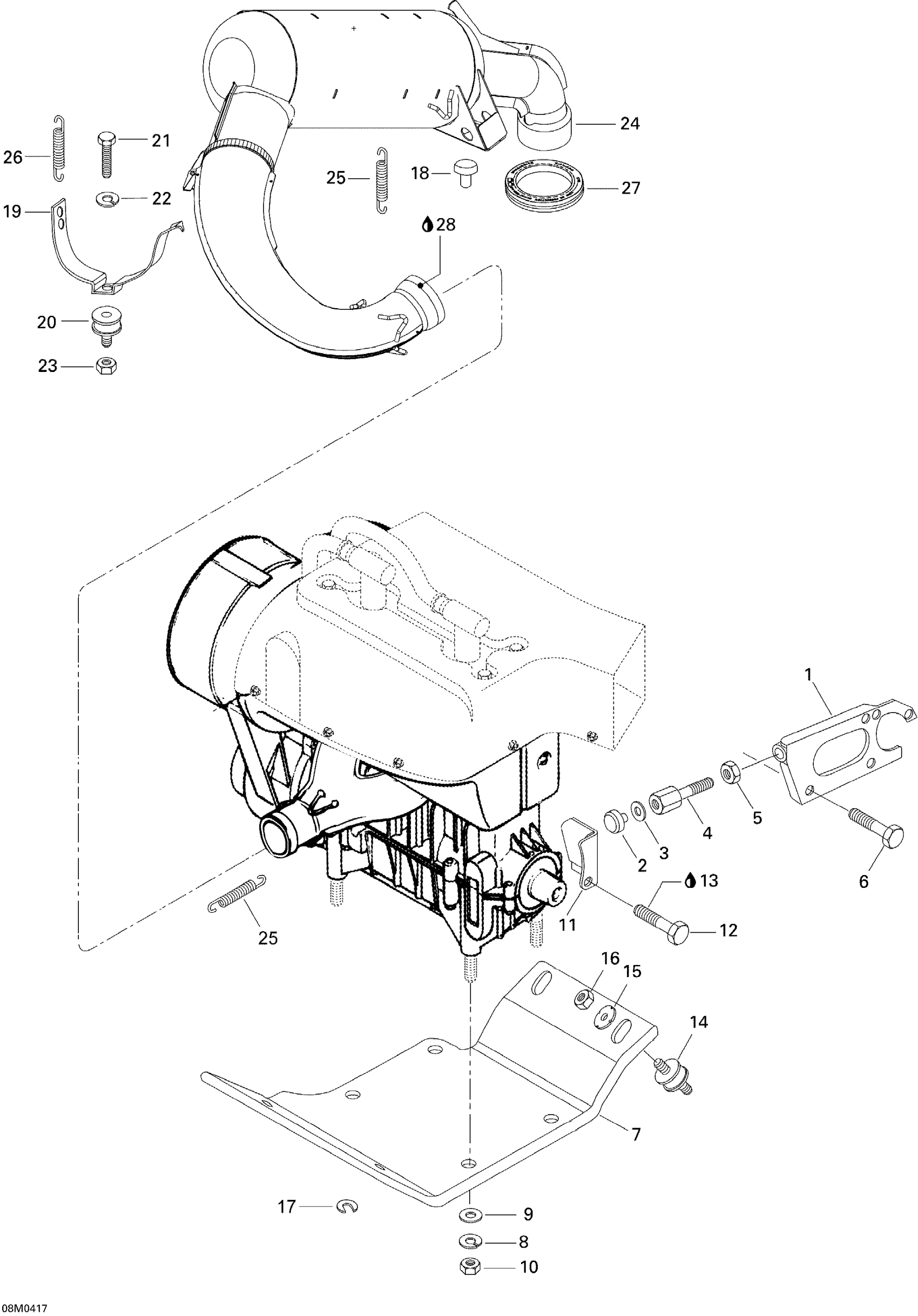

Ski-Doo Skandic LT 440F, 2004 Engine Assembly And Support Diagram

#

Description
Price

1

PLATE SUPPORT - Call your local BRP dealership

605350127

Unavailable

2

STOPPER - Call your local BRP dealership

512059710

Unavailable

3

Washer

M20028

Unavailable

4

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

5

Hex. Jam Nut

M33218

Unavailable

6

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

7

SUPPORT-ENGINE - Call your local BRP dealership

M5246291

Unavailable

8

Lock Washer

M20047

Unavailable

9

WASHER M10 - Call your local BRP dealership

20005

Unavailable

10

Hex. Nut M10 X 1.5

232006414

$1.11

11

Welded Stopper Plate

M5344446

Unavailable

12

Hex. Screw M8 x 16

207181644

$0.87

13

Loctite 243, 10 ml

293800060

$20.77

14

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

15

Lock Washer

512056700

Unavailable

16

Elastic Locking Nut M10 X 1.5

233601416

$1.68

17

Washer

M546221

Unavailable

18

Rubber Bumper

570044700

$10.55

19

Support

M535108

Unavailable

20

Rubber Bumper

M28245

Unavailable

21

Screw

M40034

Unavailable

22

Lock Washer 8 mm

234181401

Unavailable

23

Hex. Elastic Stop Nut M8

232581414

Unavailable

24

Muffler_Exhaust - Call your local BRP dealership

420979823

Unavailable

25

Spring This part replaces 420938795.

420938796

Unavailable

26

Spring

M543225

Unavailable

27

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

28

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable
