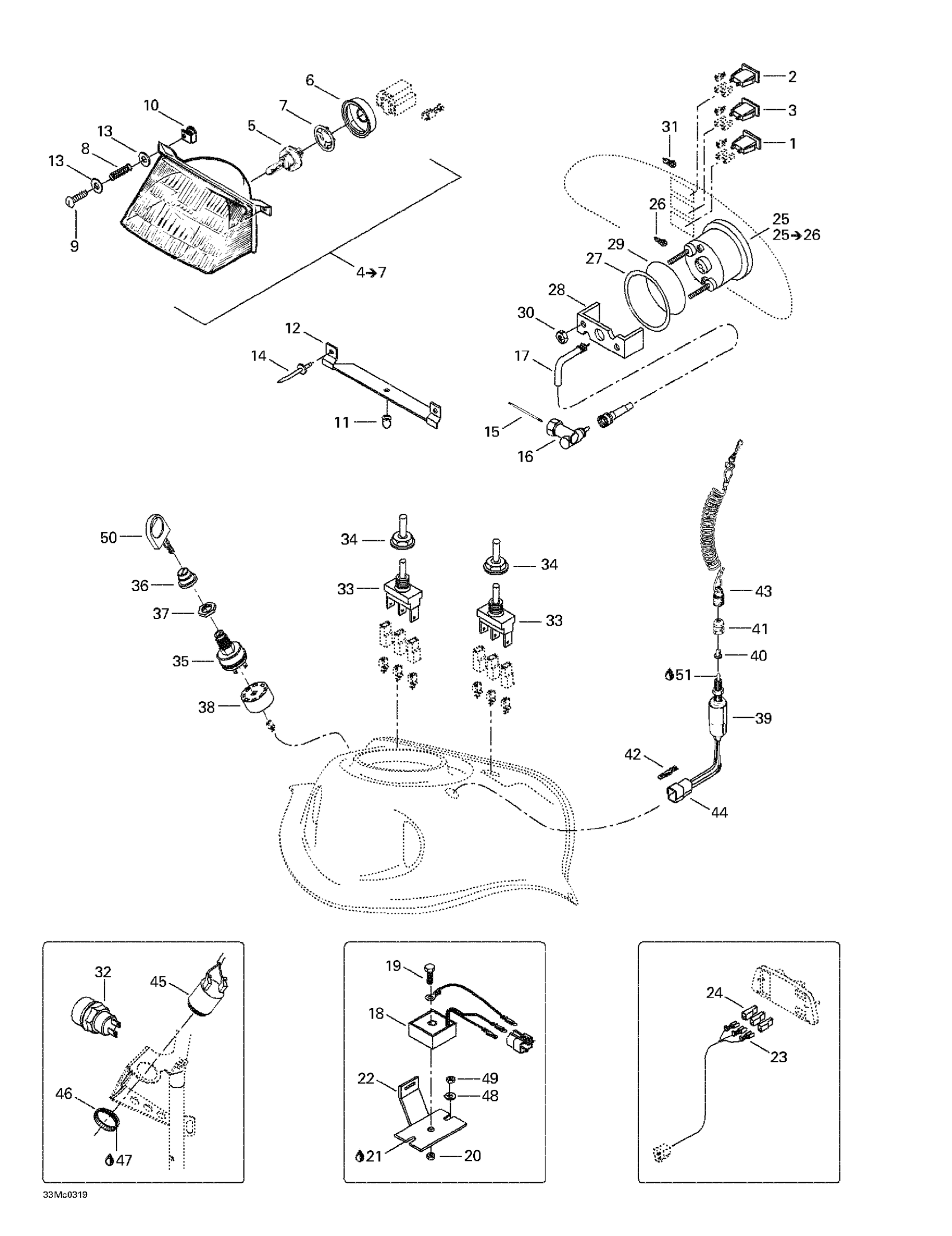

Ski-Doo Skandic LT 440F, 2003 10- Electrical System Diagram

#

Description
Price

1

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

2

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

3

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

4

Headlamp | Includes 53 to 56

410609300

Unavailable

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

7

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

8

Spring

517168600

$7.39

9

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

10

Projector Nut

572078600

Unavailable

11

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

12

HOLDER - Call your local BRP dealership

M539864

Unavailable

13

Flat Washer M5

234051410

$0.53

14

Rivet

M36489

Unavailable

15

Square Pin Nska L=75Mm This part replaces M45075.

45075

$19.49

16

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

$139.99

17

Speedometer Cable

M45006

Unavailable

18

Volt Regulator Ass'y

M5446342

Unavailable

19

Hex. Screw

M40003

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Grease Tube Lmz, 400 G

413707500

Unavailable

22

Cooling Plate

M5346798

Unavailable

23

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

24

Female Terminal Housing, 1 Circuit

409010400

$7.62

25

Speedometer, Kmh

515175335

Unavailable

25

Speedometer, Mph

515175336

Unavailable

26

Bulb 12V-1.7W

515175929

Unavailable

27

Washer

517258500

Unavailable

28

Case Holder

414806500

Unavailable

29

O-Ring

414807100

Unavailable

30

NUT M5 - Call your local BRP dealership

M33062

Unavailable

31

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

32

Push Button

415130372

$122.49

33

Switch (Heating Grip) | FREERIDE

410107300

$35.99

34

Switch Cover

515175281

$15.99

35

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

36

Switch Boot

570013700

$11.49

37

FACE NUT - Call your local BRP dealership

410112100

Unavailable

38

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

39

Brake Switch

515175653

$19.49

40

Plunger Cap

570151100

$9.85

41

Switch Nut

515145900

$12.12

42

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

43

Cap Ass'y

515178283

$38.99

44

Male Housing

M42268

Unavailable

45

HORN - Call your local BRP dealership

515176035

Unavailable

46

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

47

Silicone Sealant 51388, 300 ml

296000309

$36.99

48

Flat Washer 6 mm

234062410

$0.77

49

Elastic Stop Nut M6

232561414

$0.55

50

Blank Key

415129350

$26.49

51

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
