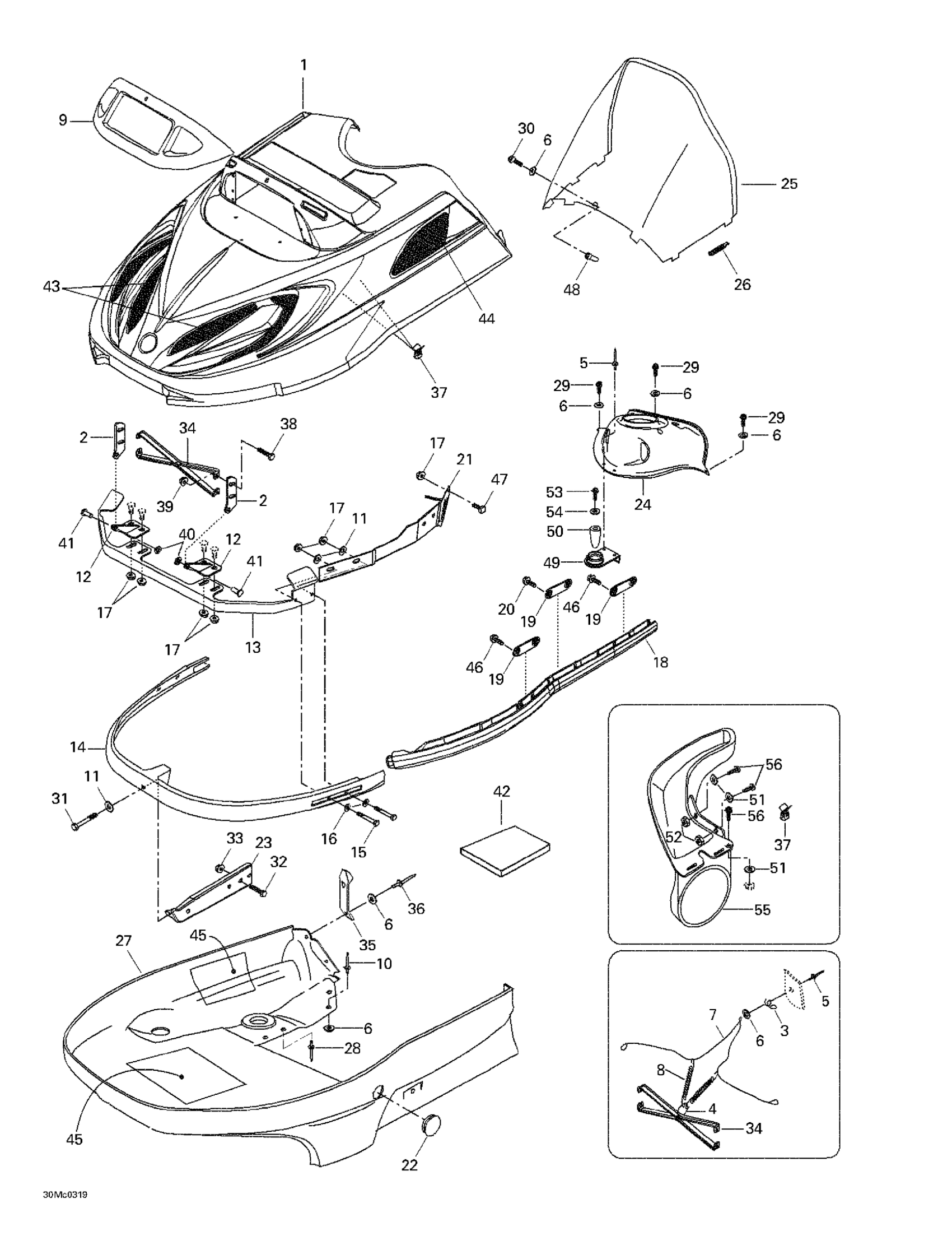

Ski-Doo Skandic LT 440F, 2003 09- Cab, Console, Bottom Pan Diagram
#
1
Hood
M5146256
Unavailable
2
UPPPER HINGE - Call your local BRP dealership
517261100
Unavailable
3
Cable Keeper
M5442870
Unavailable
4
RING - Call your local BRP dealership
415058300
Unavailable
7
Retainer Cable | SUV 600
M5342674
Unavailable
9
Lamp Moulding
572079200
Unavailable
12
Welded Lower Hinge
517289900
Unavailable
13
Painted Bracket Hinge
517265100
Unavailable
14
Front Bumper
517265400
Unavailable
18
LH Bumper
M5144964
Unavailable
RH Bumper
M5144965
Unavailable
19
Side Bracket
M5446213
Unavailable
20
Screw
M40322
Unavailable
21
LH Support
M5246399
Unavailable
RH Support
M5246400
Unavailable
22
Bottom Pan Cap
570277300
Unavailable
23
Front Support
M5246183
Unavailable
24
Dash
M5146854
Unavailable
25
WINDSHIELD - Call your local BRP dealership
M5147892
Unavailable
27
Botton Pan
M5145054
Unavailable
30
Screw M5 X 30
M40358
Unavailable
31
Screw
M40867
Unavailable
32
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
34
Hood Reinforcement
517278100
Unavailable
35
BLACK LATCH - Call your local BRP dealership
570025900
Unavailable
38
Screw M5 x 20
M40864
Unavailable
39
NUT M5 - Call your local BRP dealership
M33062
Unavailable
41
FLAT HEAD STEEL RIVET - Call your local BRP dealership
390906200
Unavailable
42
Acoustic Foam
414632400
Unavailable
43
RH Front Grill
M5246261
Unavailable
LH Front Grill
M5246262
Unavailable
44
RH Side Grille
M5347250
Unavailable
LH Side Grill
M5346263
Unavailable
45
Sheet-reflector
M5444437
Unavailable
46
Screw
M40377
Unavailable
47
Screw
M5446813
Unavailable
49
Plate guide
M5446875
Unavailable
50
Guide Pin
M5446857
Unavailable
52
NUT M5 - Call your local BRP dealership
M33062
Unavailable
53
Screw
M40375
Unavailable
54
WASHER - Call your local BRP dealership
M20038
Unavailable
55
Inlet Duct
M5246991
Unavailable
56
Screw M5 X 16
M40247
Unavailable
