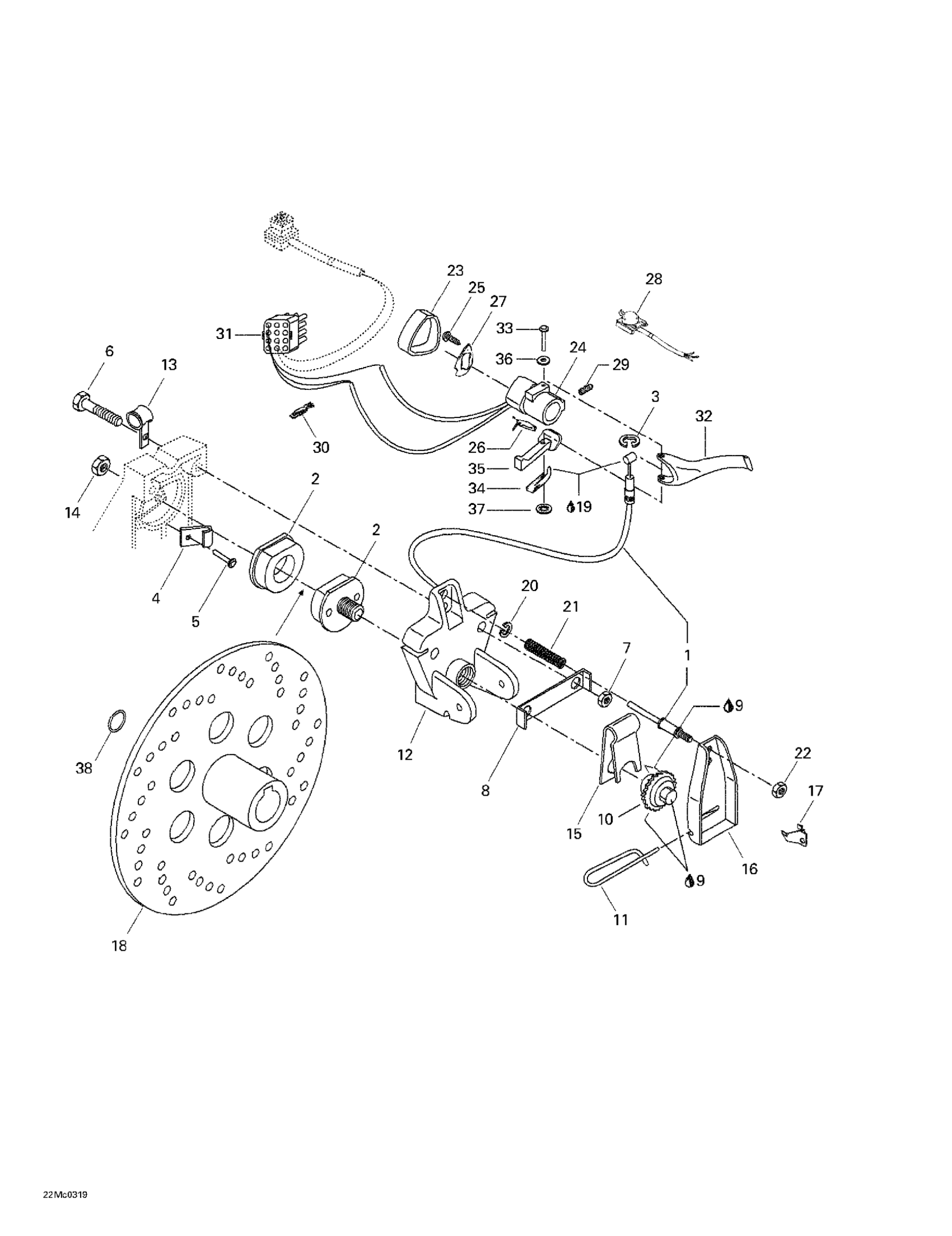

Ski-Doo Skandic LT 440F, 2003 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
BRAKE CABLE - Call your local BRP dealership
414922500
Unavailable
2
Pad_Brake Kit - Call your local BRP dealership
860700700
Unavailable
3
Circlip
M31038
Unavailable
4
WEAR INDICATOR - Call your local BRP dealership
507022600
Unavailable
5
Rivet
M36489
Unavailable
6
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085596
Unavailable
8
LOCK-TAB - Call your local BRP dealership
507020400
Unavailable
9
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
10
WELDED RATCHET WHEEL - Call your local BRP dealership
507032310
Unavailable
11
HAIR PIN - Call your local BRP dealership
507032306
Unavailable
12
Machined Caliper
507027600
Unavailable
13
Rope Guide
M5446616
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
RELEASE SPRING - Call your local BRP dealership
507020200
Unavailable
16
LEVER - Call your local BRP dealership
507021500
Unavailable
17
RATCHET SPRING - Call your local BRP dealership
507009400
Unavailable
18
WELDED DISK - Call your local BRP dealership
507029000
Unavailable
20
Circlip
M31038
Unavailable
21
SPRING - Call your local BRP dealership
414460600
Unavailable
23
BRAKE COVER - Call your local BRP dealership
572073800
Unavailable
24
BRAKE HOUSING ASS'Y - Call your local BRP dealership
507032313
Unavailable
25
Screw
414473200
Unavailable
26
Brake Switch
415085700
Unavailable
27
LH Plate
572086600
Unavailable
28
Dimmer Switch
415085800
Unavailable
30
CONNECTOR - Call your local BRP dealership
605642628
Unavailable
31
Male Housing
M42266
Unavailable
32
BRAKE HANDLE - Call your local BRP dealership
572025700
Unavailable
33
PIN - Call your local BRP dealership
517229400
Unavailable
34
SPRING - Call your local BRP dealership
507032317
Unavailable
35
Brake Lever
572025200
Unavailable
36
WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership
414729400
Unavailable
38
O'RING - Call your local BRP dealership
414928900
Unavailable
