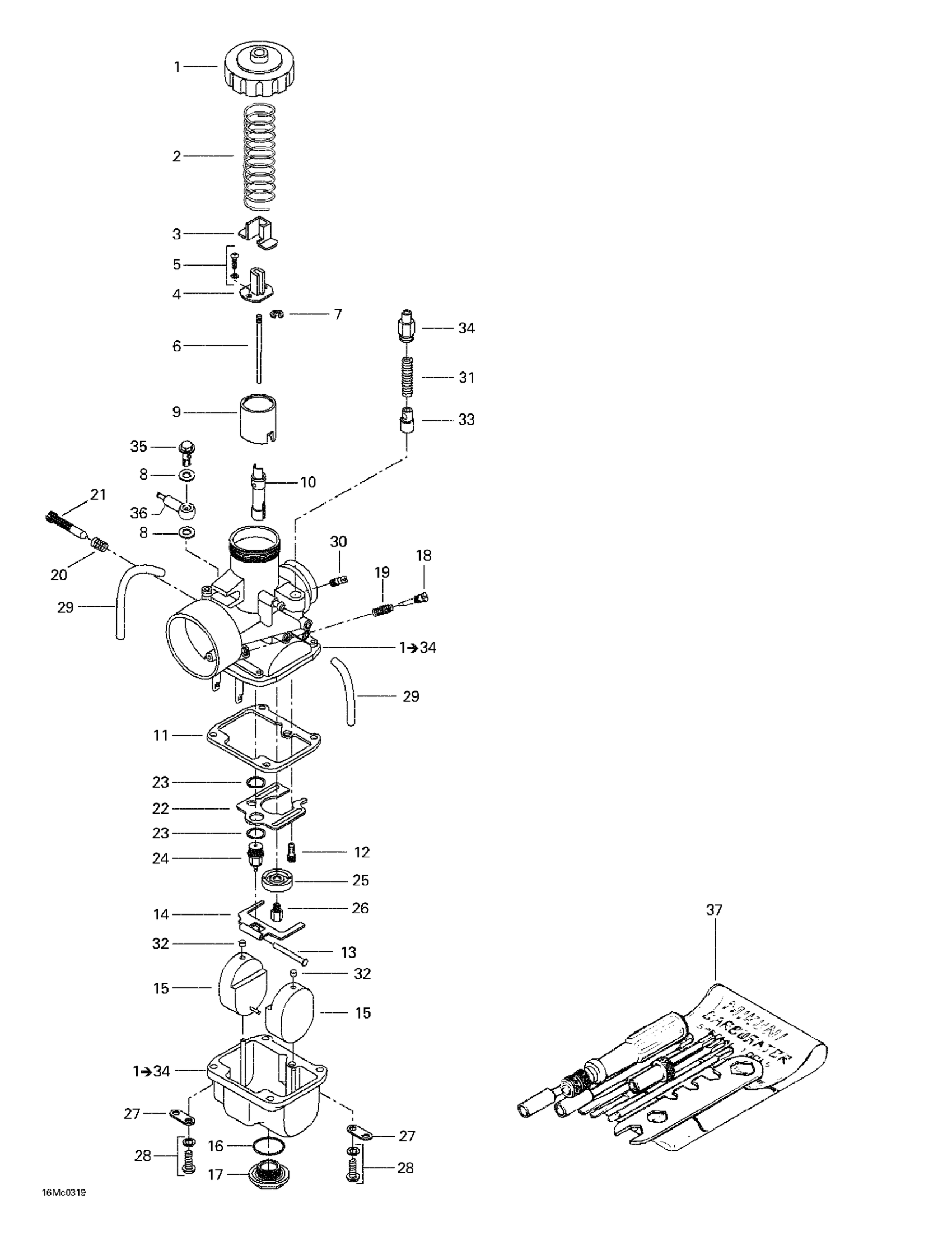

Ski-Doo Skandic LT 440F, 2003 02- Carburetors Diagram

#

Description
Price

1

Carburetor Ass'y | Includes 1 to 34

M19121

Unavailable

1

Cover

404103700

$31.99

2

Spring

404154800

$23.99

3

Cover

404122100

$19.49

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.14

6

NEEDLE - Call your local BRP dealership

404161978

Unavailable

7

E-Ring

404152400

$7.27

8

Washer

270500025

Unavailable

9

Valve Piston 3.0

404158400

Unavailable

10

Needle Jet

404130200

Unavailable

11

Gasket pan

404117900

Unavailable

12

PILOT JET 50 - Call your local BRP dealership

404109500

Unavailable

13

Lever Pin

404103300

$6.27

14

Float Lever

404107600

$22.99

15

FLOAT - Call your local BRP dealership

404107100

Unavailable

16

O-Ring

404107300

$9.06

17

Drain Plug Screw

404107400

$22.99

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.14

21

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

22

BAFFLE - Call your local BRP dealership

404109600

Unavailable

23

Seat Washer

404101600

$3.29

24

Needle valve

404117700

Unavailable

25

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

26

Main Jet 180

404112200

$5.21

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.18

29

HOSE - Call your local BRP dealership

404161880

Unavailable

30

Nipple

404153400

$12.16

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

Cap

404105800

$6.38

33

PLUNGER ASS'Y - Call your local BRP dealership

404161000

Unavailable

34

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

BANJO FITTING - Call your local BRP dealership

404130000

Unavailable

37

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
