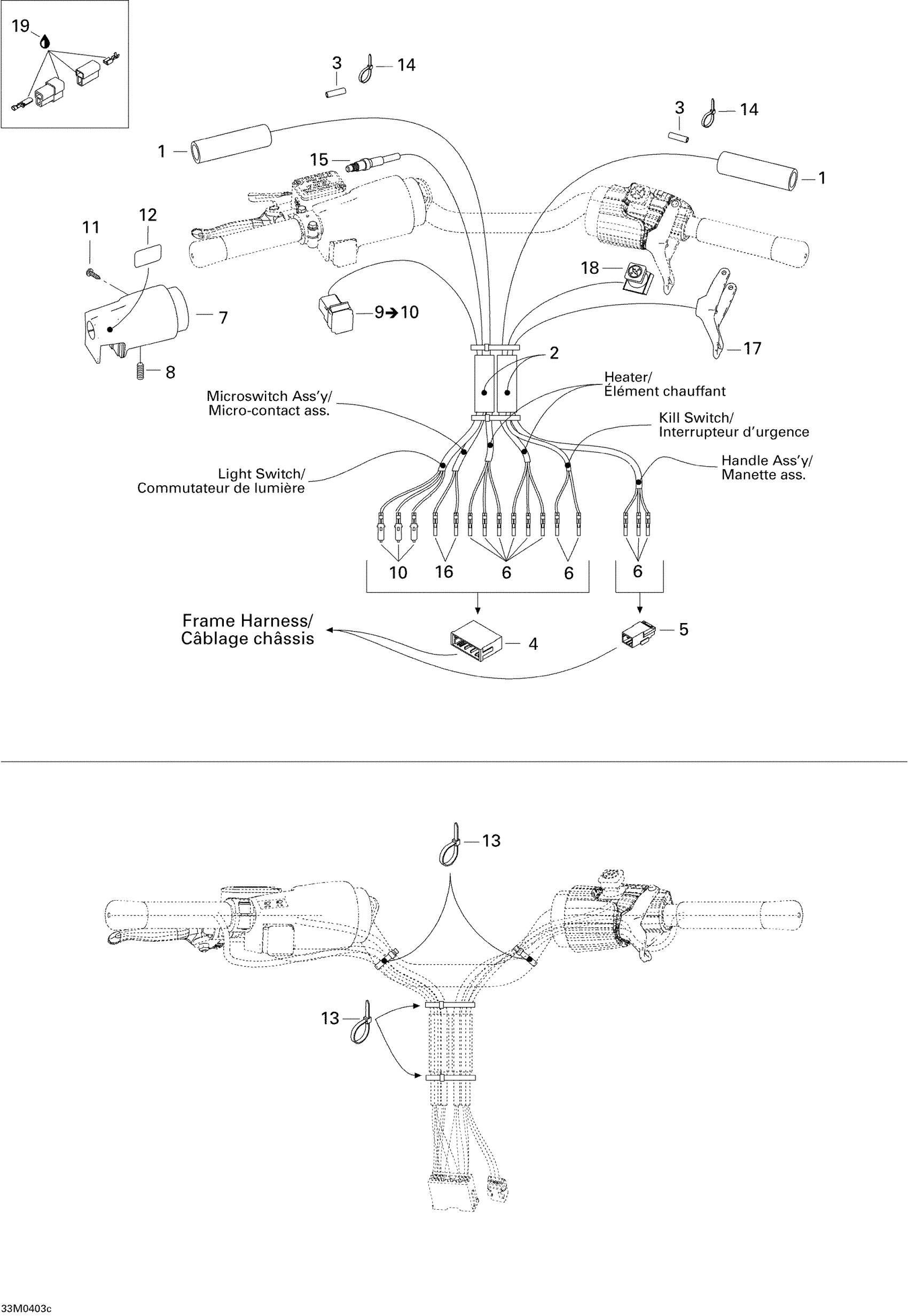

Ski-Doo Skandic 550F, 2004 Steering Harness SKANDIC 550F Diagram

#

Description
Price

1

Heater

515175997

Unavailable

2

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

3

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

4

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

5

Male Housing, 3 Circuits

515175494

$14.90

6

Male Terminal

515175232

$1.45

7

BRAKE HOUSING - Call your local BRP dealership

515175696

Unavailable

8

Socket Set Screw M8 X 10

414440800

$3.88

9

LIGHT SWITCH - Call your local BRP dealership

515175814

Unavailable

10

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

11

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

12

Switch Decal

415025500

Unavailable

13

Tie-Rap 180 mm

414115200

$0.10

14

Tie Wrap 94 mm | 4X4

293750001

$0.96

15

Microswitch

507032366

$101.46

16

Male Terminal

515175232

$1.45

17

Handle Ass'y

512060214

$114.15

18

Kill Switch

515175410

Unavailable

19

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
