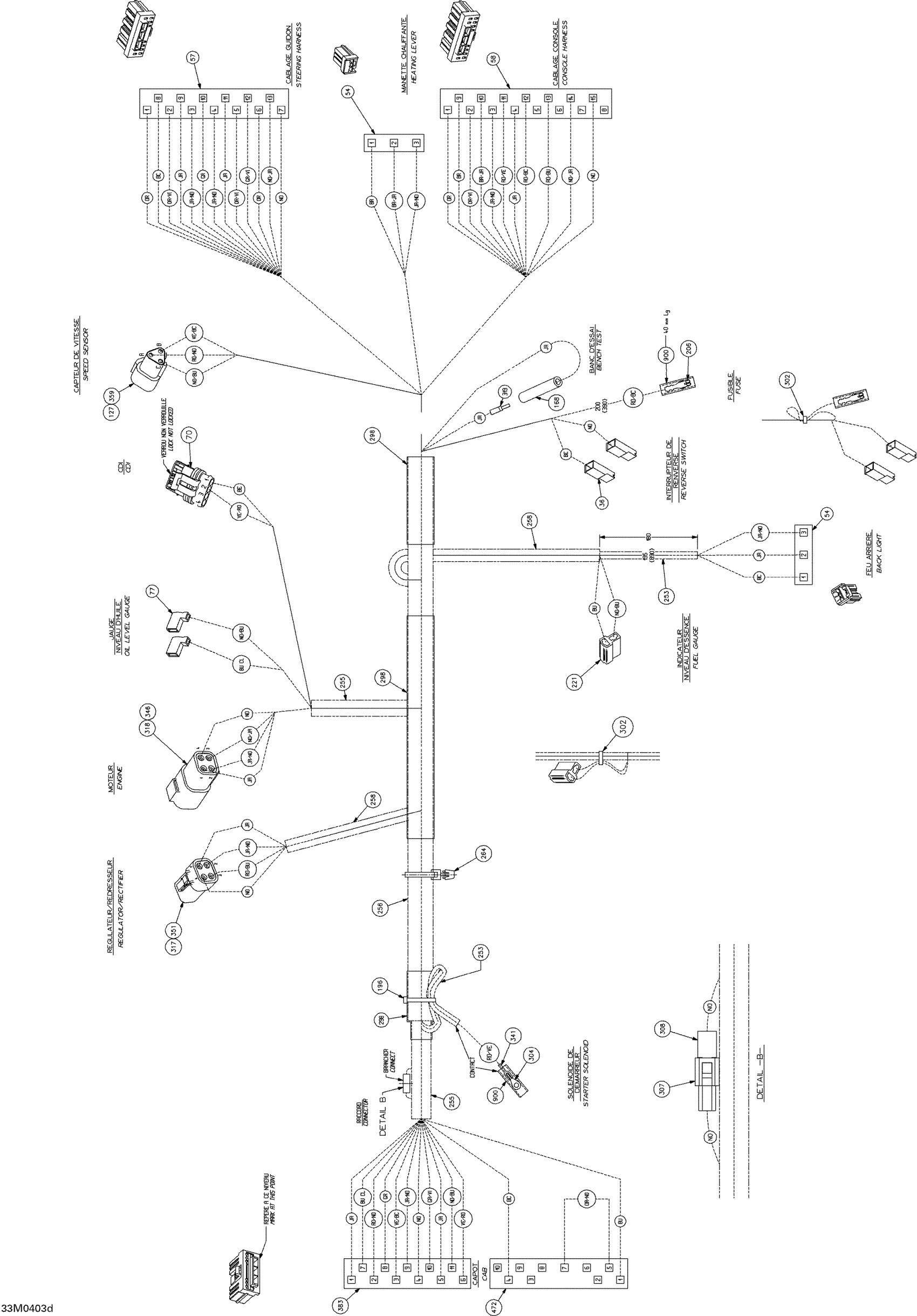

Ski-Doo Skandic 550F, 2004 10- Frame Harness SKANDIC 550F Diagram

#

Description
Price

34

Frame Harness | Includes Items 34 to 900

515175983

Unavailable

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

57

Female Terminal Housing, 13 Circuits

515175350

$14.24

58

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

62

Female Terminal

278001014

$3.28

70

Female Housing, 4 Circuits

409209700

$16.18

73

Wire Seal

278001013

$3.28

77

Female Terminal

409010300

$4.39

110

Male Terminal

278000631

$4.39

127

Male Lock, 3 Circuits

409207600

$3.19

168

Deutsch Joint Housing

515175259

Unavailable

172

Female Terminal

561503100

$2.41

196

Tie Wrap 142 mm

293750002

$1.25

206

Female Terminal

409004200

$4.55

221

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

253

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

258

Tubing 10 MM 1000MM Long

219704407

$2.79

264

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

298

Tape

293740005

Unavailable

302

Tie Wrap 94 mm | 4X4

293750001

$1.03

304

Ring Terminal

515175504

$9.12

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

317

Female Terminal Housing, 4 Circuits

278001473

$26.99

318

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

319

Male Terminal

515175568

$9.12

320

Female Terminal

515175567

$7.69

341

Not Available As Spare Part - Friction Washer

Unavailable

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

351

Female Lock, 4 Circuits

278001474

$3.49

359

Male Housing

515175666

$15.49

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

472

Housing

417128527

Unavailable

900

Hose

415079200

Unavailable
