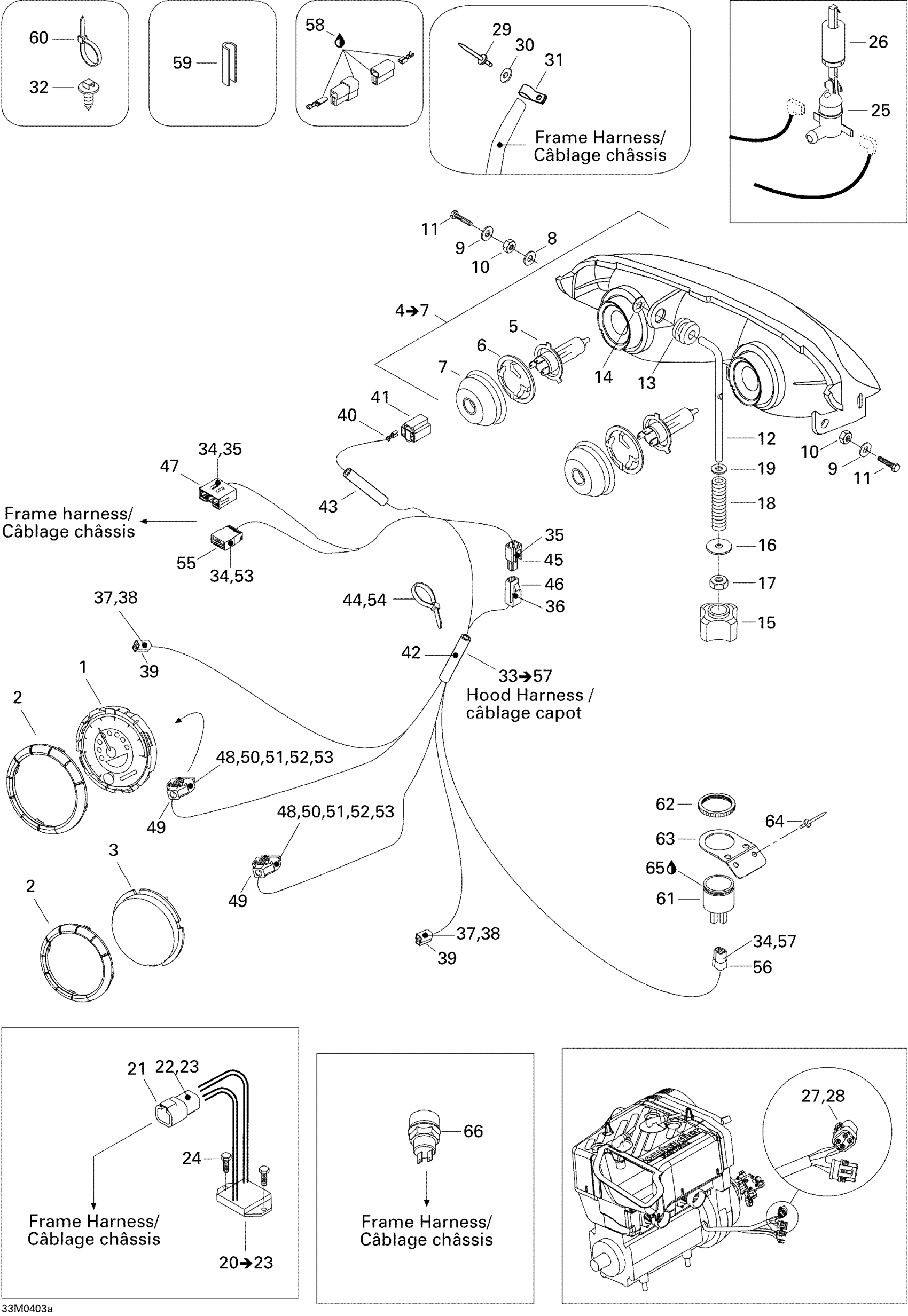

Ski-Doo Skandic 550F, 2004 10- Electrical System 1 (SKANDIC 550F) Diagram

#

Description
Price

1

Speedometer

515175999

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

Flat Washer 10 mm

234001410

$1.26

9

Flat Washer M5

234051410

$0.53

10

NUT M5 - Call your local BRP dealership

250100018

$6.99

11

Hex. Screw M5 X 35

207053544

$1.15

12

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

13

Grommet - Call your local BRP dealership

415100800

Unavailable

14

Push Nut

732610072

$2.19

15

Handle - Call your local BRP dealership

515175548

Unavailable

16

Washer

224060251

$0.58

17

Elastic Stop Nut M6

232561414

$0.55

18

SPRING - Call your local BRP dealership

415100600

Unavailable

19

Flat Washer 6 mm

234061410

$1.36

20

VOLTAGE REGULATOR - Call your local BRP dealership | Includes 27 to 30

515175655

Unavailable

21

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

22

Male Terminal

515175568

$9.12

23

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

24

Hex. Flange Screw M6 X 16

210261650

$1.67

25

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

26

Float

414681900

Unavailable

27

Female Terminal Housing, 4 Circuits

278001473

$26.99

28

Female Lock, 4 Circuits

278001474

$3.49

29

Pop Rivet 3/16"

390402200

$0.35

30

Flat Washer

517225900

$0.18

31

CLIP - Call your local BRP dealership

415018200

Unavailable

32

Mount Dart

293730040

$1.04

33

CAB WIRING HARNESS - Call your local BRP dealership | Includes 53 to 77

515175984

Unavailable

34

Male Terminal

515175232

$1.58

35

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

36

Female Terminal

515175282

$7.86

37

Female Terminal

561503100

$2.41

38

Female Terminal

561503100

$2.41

39

Female Housing

409204300

Unavailable

40

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

41

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

42

Tubing 16 Mm 1000Mm Long

219704408

$7.49

43

Tubing 10 MM 1000MM Long

219704407

$2.79

44

Tie Wrap 94 mm | 4X4

293750001

$1.03

45

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

46

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

47

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

48

Plug

515175812

$2.19

49

Female Housing, 24 Circuits

515175801

$9.59

50

Retainer Block

515175802

$11.49

51

Wire Seal

515175803

$2.99

52

BLOCK - Call your local BRP dealership

515175804

Unavailable

53

Female Terminal

515175806

$0.99

54

Tie-Rap 180 mm

414115200

$0.11

55

Male Terminal Housing, 10 Circuits

415128526

Unavailable

56

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

57

Female Terminal

515176071

Unavailable

58

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

59

Was 271000110 Protection Trim

219704353

$15.99

60

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie-Rap 173 mm

293750009

$1.04

61

HORN - Call your local BRP dealership

515176035

Unavailable

62

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

63

PLATE - Call your local BRP dealership

515175688

Unavailable

64

Pop Rivet 3/16"

390402200

$0.35

65

Silicone Sealant 51388, 300 ml

296000309

$36.99

66

Push Button

415130372

$122.49
