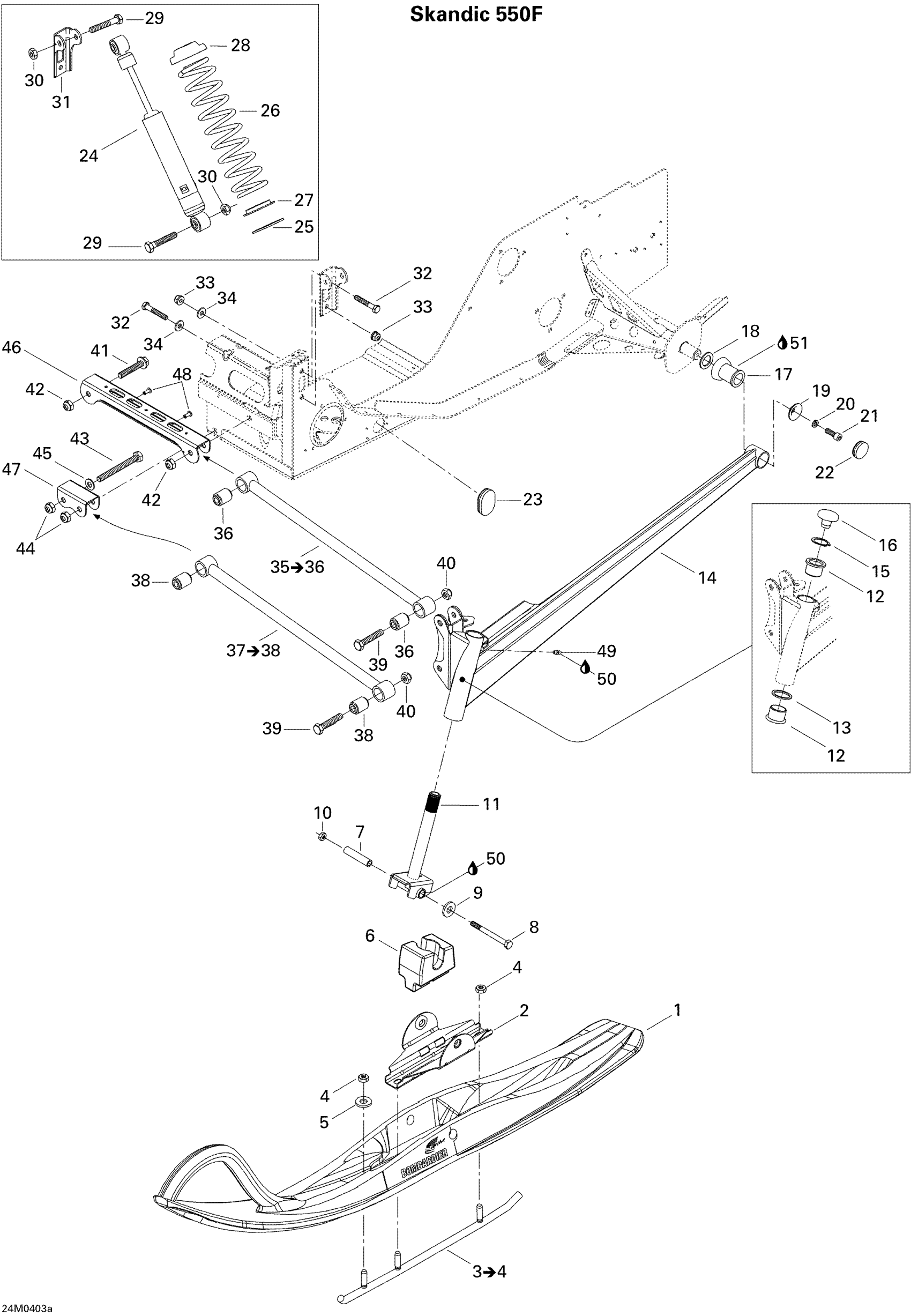

Ski-Doo Skandic 550F, 2004 Front Suspension SKANDIC 550F Diagram

#

Description
Price

1

Small ''Blow Mold'' Ski

505072019

$96.89

2

BRIDGE ASS'Y - Call your local BRP dealership

505070980

Unavailable

3

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

$93.82

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Flat Washer 8 mm

234082410

$1.11

6

SKI STOPPER - Call your local BRP dealership

505070978

Unavailable

7

Spacer

506133300

$19.97

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

9

Flat Washer 10 mm

234001410

$0.98

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

Ski Leg

506151234

Unavailable

12

Cushion

505070003

$7.40

13

WASHER - Call your local BRP dealership

505070004

Unavailable

14

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

15

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

16

Cap

572091300

$8.97

17

DAMPER - Call your local BRP dealership

570062200

Unavailable

18

WASHER - Call your local BRP dealership

503146700

Unavailable

19

Cup | Package Hunter

705007171

$6.18

20

Lock Washer 8 mm

234181401

$0.89

21

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

22

CAP - Call your local BRP dealership

572045900

Unavailable

23

Black, Nylon Cap

414916600

$4.32

24

Front Shock

505071198

Unavailable

25

WASHER - Call your local BRP dealership

505070401

Unavailable

26

Spring

505070393

Unavailable

27

Spring Guide

503187500

$7.37

28

Spring Stopper

706200881

$10.30

29

Hex. Screw M10 X 55

207005544

$1.85

30

Elastic Locking Nut M10 X 1.5

233601416

$1.68

31

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

LH Shock Bracket

518317519

Unavailable

32

Hex. Screw M8 X 50

207085044

$1.25

33

Hex. Flange Elastic Nut M8

233281414

$1.14

34

Washer

506151245

$0.91

35

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 To 42

505070580

Unavailable

36

Bushing

505070025

Unavailable

37

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

38

Bushing

505070025

Unavailable

39

Hex. Screw M10 X 55

207005544

$1.85

40

Elastic Locking Nut M10 X 1.5

233601416

$1.68

41

Hex. Flange Screw M10 X 55

207605544

$2.78

42

Elastic Locking Nut M10 X 1.5

233601416

$1.68

43

Hex. Screw M10 X 95

207009544

Unavailable

44

Elastic Locking Nut M10 X 1.5

233601416

$1.68

45

Flat Washer 10 mm

234001410

$0.98

46

Upper Arm Bracket

505070010

Unavailable

47

Lower Arm Bracket

505070011

Unavailable

48

Pop Rivet 3/16"

390402200

$0.26

49

Grease Fitting

408200700

$2.80

50

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

51

Grease, Super Lube

293550030

$24.67
