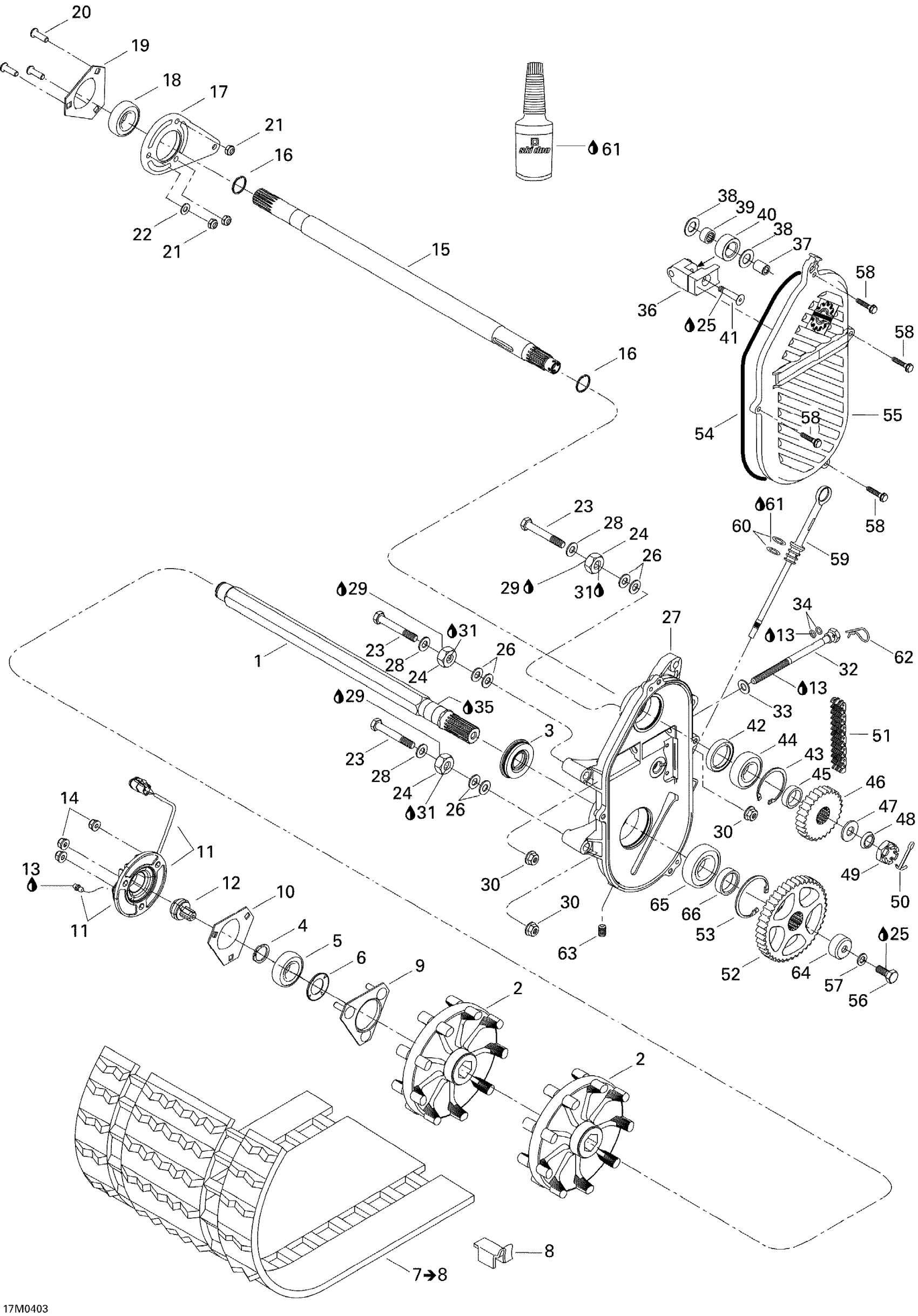

Ski-Doo Skandic 550F, 2004 05- Drive System SKANDIC 550F Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

Oil Seal Ass'y

504151918

$20.49

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track Ass’Y (15”X136"X 1.250") | Includes 8 to 9 / Legend Sport GT (Europe)

504152028

Unavailable

8

Track Guide | Track Width 16''

415129528

$3.29

9

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

10

FLANGE - Call your local BRP dealership

501025000

Unavailable

11

Flange, Speedo

504152173

$76.49

12

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

13

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

COUNTERSHAFT - Call your local BRP dealership | 550F

504151858

Unavailable

16

Circlip

371910000

$1.19

17

Spacer (Casting)

080044200

$21.99

18

BALL BEARING - Call your local BRP dealership

504152008

Unavailable

19

FLANGE - Call your local BRP dealership

501025000

Unavailable

20

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

Flat Washer 8 mm

234081410

$0.83

23

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

24

Spacer

504083800

Unavailable

25

Loctite 271, 10 ml

293800005

$26.99

26

WASHER - Call your local BRP dealership

504073700

Unavailable

27

CHAINCASE - Call your local BRP dealership This part replaces 504152064.

504153562

Unavailable

28

Washer

503183800

$3.28

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

Hex. Flange Elastic Nut M10

233201414

$1.58

31

Loctite 243, 10 ml

293800060

$21.49

32

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

33

Flat Washer 10 mm

234001410

$1.26

34

O-Ring

414484400

$7.51

35

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

36

Chain Tensioner

504151951

Unavailable

37

SPACER - Call your local BRP dealership

504080200

Unavailable

38

WASHER - Call your local BRP dealership

504080300

Unavailable

39

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

40

ROLLER - Call your local BRP dealership

414531300

Unavailable

41

SCREW - Call your local BRP dealership

732601144

Unavailable

42

SEAL - Call your local BRP dealership

504151927

Unavailable

43

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

44

Ball Bearing

293350115

$12.11

45

SHIM - Call your local BRP dealership

504147200

Unavailable

46

Sprocket 20 Teeth | GT 550F

504074800

Unavailable

47

SPACER - Call your local BRP dealership

504152049

Unavailable

48

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

49

Spring Washer

417000900

Unavailable

50

Cotter Pin

371801300

Unavailable

51

Drive Chain Narrow, 74 Links | 550F

504151859

Unavailable

52

43 TEETH SPROCKET, LARGE - Call your local BRP dealership

504148600

Unavailable

53

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

54

O-Ring

415046400

$24.99

55

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

56

Hex. Screw M10 X 25

207102544

$1.37

57

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

58

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

59

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

60

O-RING - Call your local BRP dealership

414969400

Unavailable

61

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

62

Hair Pin

414575600

$1.89

63

Plug 1/8”-27

504151921

$4.19

64

Cap

501022400

Unavailable

65

Ball Bearing

504152005

$46.49

66

Shim

504152058

Unavailable
