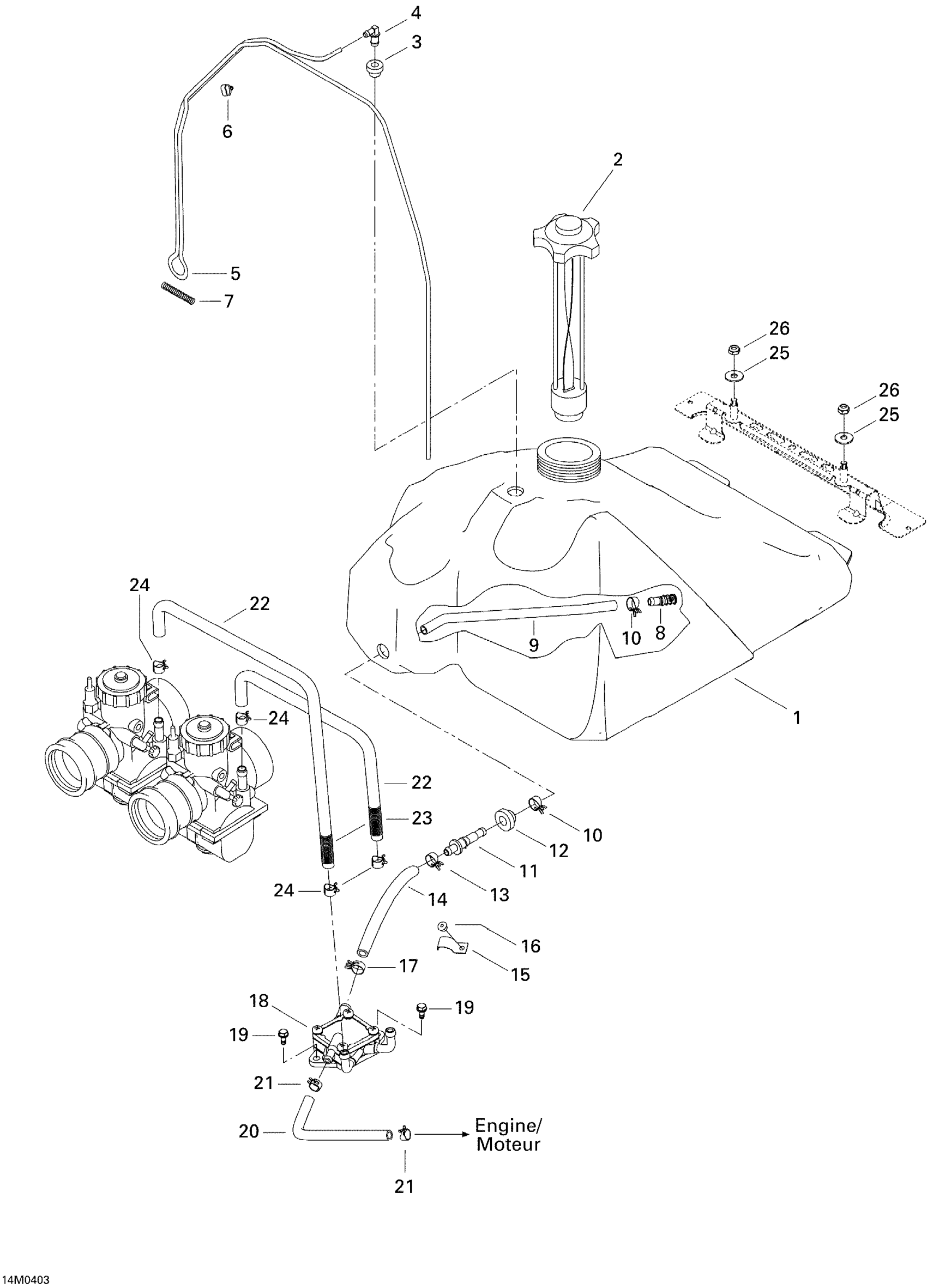

Ski-Doo Skandic 550F, 2004 02- Fuel System SKANDIC 550F Diagram

#

Description
Price

1

Fuel Tank

513032987

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

3

Grommet

513032908

$10.49

4

Male Connector

414814100

$2.22

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

9

Hose

415005700

$11.58

10

Norma Spring Clamp

513033010

$9.69

11

Male Connector

414872700

$1.90

12

Grommet | Europe

707800347

$10.49

13

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

14

Formed Hose

513032903

$30.99

15

CLIP - Call your local BRP dealership

415018200

Unavailable

16

Pop Rivet 3/16"

293150103

$0.55

17

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

18

Fuel Pump

403901813

$84.99

10

Hex. Flange Screw M6 X 16

210261650

$1.67

20

Hose

219704549

$50.99

21

Spring Clamp

414415200

$0.88

22

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

23

Tubing 16 Mm 1000Mm Long

219704408

$7.49

24

Universal Spring Clamp

513033029

$5.39

25

Flat Washer 8 mm

234082410

$1.47

26

Hex. Elastic Stop Nut M8

232581414

$0.56
