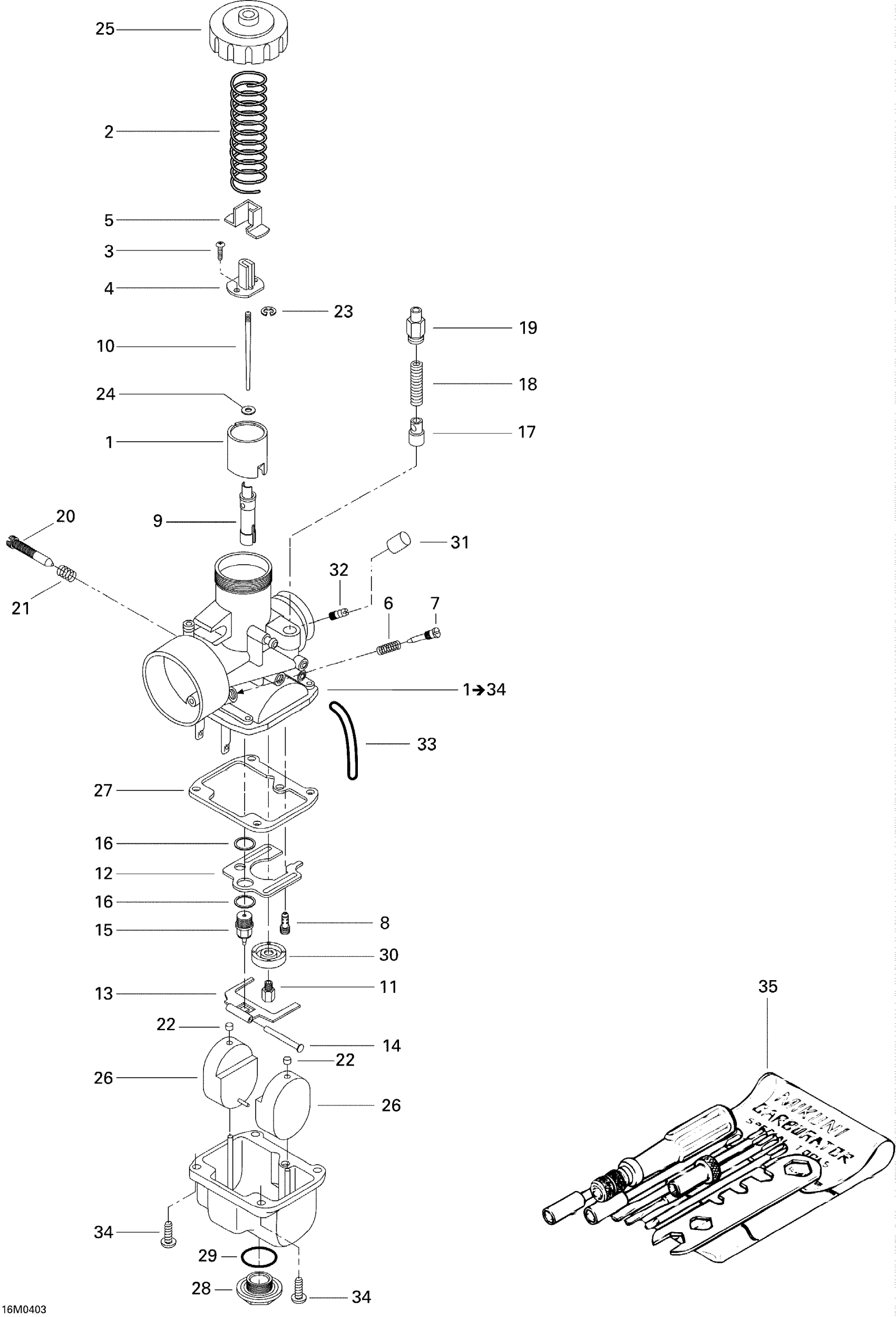

Ski-Doo Skandic 550F, 2004 02- Carburetor SKANDIC 550F Diagram

#

Description
Price

1

Carburator Vm-34 | Includes Items 1 to 34

403138727

Unavailable

1

Piston Valve 2.5

404128400

$127.49

2

Spring

404154800

$23.99

3

Screw With Washer

404121300

$4.14

4

Packing

404161948

Unavailable

5

Cover

404122100

$19.49

6

SPRING - Call your local BRP dealership

404139800

Unavailable

7

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

8

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

9

Needle Jet

404162124

$41.49

10

NEEDLE J8-6BCY40 - Call your local BRP dealership

404162032

Unavailable

11

Main Jet MJ 250

404100300

$8.36

12

BAFFLE - Call your local BRP dealership

404109600

Unavailable

13

Float Lever

404107600

$22.99

14

Lever Pin

404103300

$6.27

15

Needle Valve 1.2

404147500

$42.49

16

Seat Washer

404101600

$3.29

17

Plunger Ass'y | MAG Side

404161986

$19.49

18

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

19

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

20

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

21

Spring

404101700

$4.14

22

Cap

404105800

$6.38

23

E-Ring

404152400

$7.27

24

Packing

404117000

$3.29

25

Cover

404103700

$31.99

26

FLOAT - Call your local BRP dealership

404107100

Unavailable

27

Gasket | Includes 1900a to 1900am

404104200

$6.38

28

Drain Plug Screw

404107400

$22.99

29

O-Ring

404107300

$9.06

30

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

31

Cap

404156600

$17.08

32

Nipple

404153400

$12.16

33

AIR VENT TUBE - Call your local BRP dealership

404161851

Unavailable

34

Screw With Lock Washer

404102000

$3.18

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
