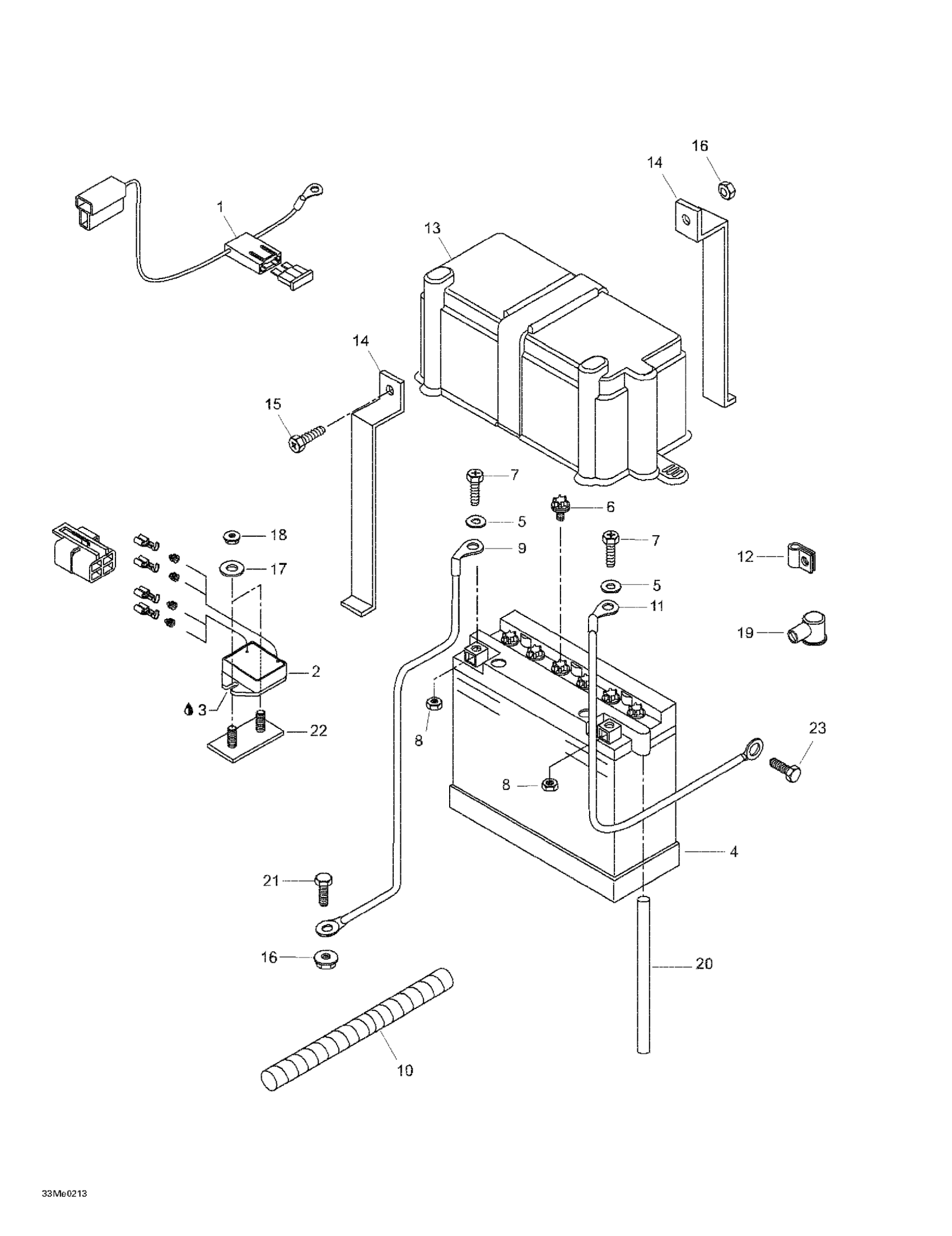

Ski-Doo Skandic 500/600, 2002 10- Electrical System 2 Diagram

#

Description
Price

1

Fuse Holder

M5444382

Unavailable

2

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515175546

Unavailable

Voltage Regulator

M5446629

Unavailable

3

Grease Tube Lmz, 400 G

413707500

Unavailable

4

Battery | Includes 4 - 8.

410301100

Unavailable

5

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

6

Battery Cap

410300800

Unavailable

7

Hex. Screw M6 X 16

207161644

$0.74

8

Hex. Nut M6

232061414

$0.53

9

Battery Wire (+) | Skandic 600.

M5446596

Unavailable

BATTERY WIRE - Call your local BRP dealership

605349434

Unavailable

10

HOUSING - Call your local BRP dealership

M28015

Unavailable

11

Ground Wire

M549887

Unavailable

Battery Wire

M5446597

Unavailable

12

Wire Holder | Skandic 500F. Skandic 500F (SWT).

M27025

Unavailable

13

Battery Cover

570022000

Unavailable

14

Steel Strip

M5442811

Unavailable

15

Hex. Screw M6 X 25

207162544

$1.15

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Flat Washer 6 mm

234062410

$0.77

18

Elastic Stop Nut M6

232561414

$0.55

19

Protection Cap

570151000

$21.99

20

Tube

M39055

Unavailable

21

Hex. Screw M8 X 16

M40066

Unavailable

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

22

Plate | Skandic 500F. Skandic 500F (SWT).

M5445079

Unavailable

23

Screw | Skandic 600.

M40866

Unavailable
