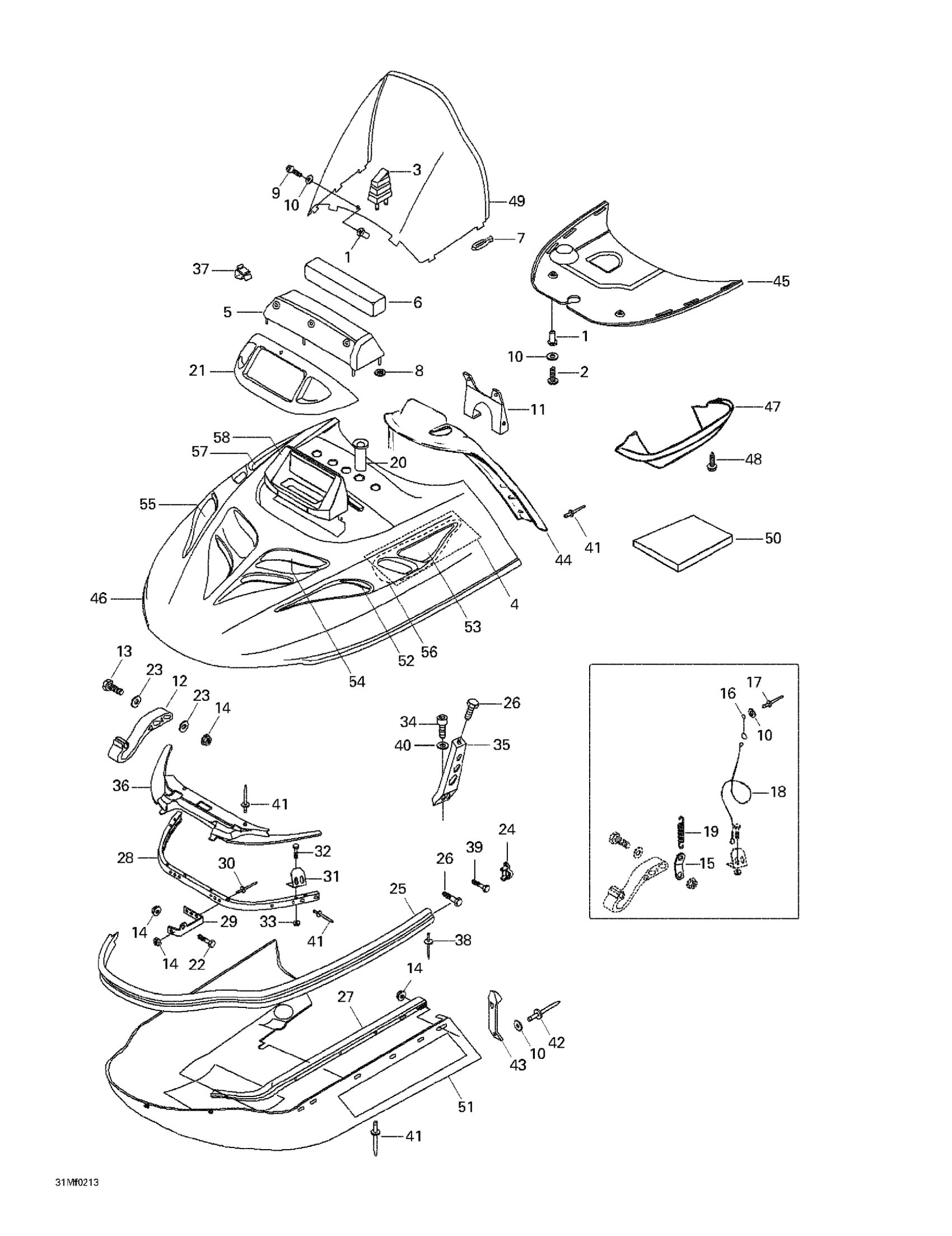

Ski-Doo Skandic 500/600, 2002 09- Cab, Console, Seat 2 Diagram

#

Description
Price

1

NUT M5 - Call your local BRP dealership

250100018

$6.99

2

Screw M5 X 30

M40808

Unavailable

3

Windshield Support

M5443136

Unavailable

4

Reflecting Sheet

M5443578

Unavailable

5

Intake Cover

M5142624

Unavailable

6

Filter

M5343135

Unavailable

7

Windshield Latch

570023800

$4.49

8

Safety Washer

36084

$1.70

9

Screw M5 X 30

M40358

Unavailable

10

Washer 5,3 mm

20008

$0.74

11

Support

M5347795

Unavailable

12

Hinge This part replaces M5343075.

5343075

$36.99

13

SCREW - Call your local BRP dealership

M40193

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

SPRING PLATE - Call your local BRP dealership

M5443123

Unavailable

16

Cable Keeper

M5442870

Unavailable

17

Rivet

36005

$2.11

18

Retainer Cable | SUV 600

M5342674

Unavailable

Retainer Cable | 550 SUV

M5346947

Unavailable

19

Spring This part replaces M5442675.

5442675

$14.99

20

INLET TUBE - Call your local BRP dealership This part replaces M5444445.

5444445

Unavailable

21

Lamp Moulding

572079200

Unavailable

22

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

23

Flat Washer 6 mm

234062410

$0.77

24

LH Cap

M549096L

Unavailable

RH Cap

M549096R

Unavailable

25

Front Bumper

M5242798

Unavailable

26

Vis *Screw

M40078

Unavailable

27

LH Hood Guide

M5242803

Unavailable

RH Hood Guide

M5242804

Unavailable

28

SUPPORT-FRONT - Call your local BRP dealership | Includes 6 to 8 This part replaces M5246120.

5246120

$179.99

29

Hinge

M5342234

Unavailable

Hinge

M5342345

Unavailable

30

Rivet

M36489

Unavailable

31

Hood Guide

M5443217

Unavailable

32

Screw M5 X 16

M40247

Unavailable

33

NUT M5 - Call your local BRP dealership

M33062

Unavailable

34

SCREW - Call your local BRP dealership

M40332

Unavailable

35

SUPP.-BUMPER - Call your local BRP dealership

M5342509

Unavailable

36

COVER - Call your local BRP dealership

605252352

$109.99

37

Clip

414227300

$1.67

38

Rivet

M36003

Unavailable

39

Hex. Screw M6 X 25

207162544

$1.15

40

Lock Washer M6, Black

234161471

$0.53

41

Black, Rivet

M36036

$1.69

42

Rivet This part replaces M36009.

36009

$1.15

Black Rivet

36037

$1.48

43

Hood Latch

5342952

$24.49

Hood Latch

570027100

$13.49

44

Dash | Skandic 500F. Skandic 500F (SWT).

M5345092

Unavailable

Dash | Skandic 600.

M5347791

Unavailable

45

Air Duct

M5142622

Unavailable

46

Hood | Skandic 500F. Skandic 500F (SWT).

M5146010

Unavailable

Hood | Skandic 600.

M5146008

Unavailable

47

Air Duct | Skandic 500F. Skandic 500F (SWT).

M5144412

Unavailable

48

Black, Dart

414644300

$0.98

49

Windshield | Skandic 500F. Skandic 600.

M5245105

Unavailable

Windshield | Skandic 500F (SWT).

M5343754

Unavailable

50

Acoustic Foam

414631900

Unavailable

51

Bottom Pan | WT 550

M5147812

Unavailable

Bottom Pan | SWT 550

M5146314

Unavailable

Bottom Pan | WT 600

M5146366

Unavailable

52

RH Lower Grill

M5242672

Unavailable

LH Lower Grill

M5342673

Unavailable

53

LH Upper Grill | SUV 550

M5242670

Unavailable

RH UPPER GRILL - Call your local BRP dealership

M5242671

Unavailable

54

Front Grill

M5142669

Unavailable

55

Fan Cover | SUV 600

M5343409

Unavailable

56

LH Cover | SUV 600

M5343408

Unavailable

57

RH Cover | SUV 600

M5342990

Unavailable

58

Sealing Foam | Skandic 600.

415044800

Unavailable
