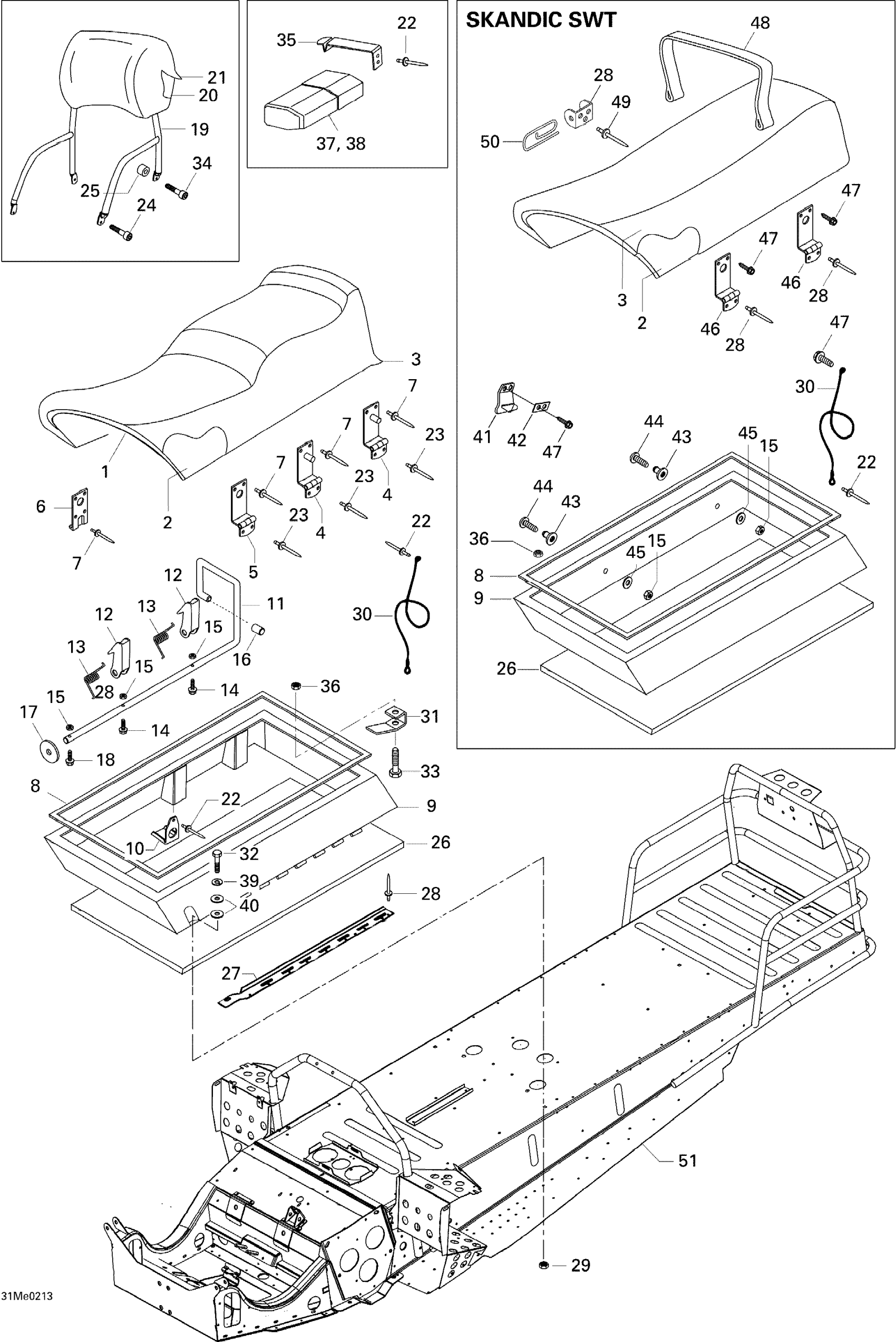

Ski-Doo Skandic 500/600, 2002 09- Cab, Console, Seat Diagram

#

Description
Price

1

Sub Seat

M519394

Unavailable

2

Foam Seat | Skandic 500F. Skandic 600.

M5244982

Unavailable

Foam Seat

M5245239

Unavailable

3

Cover Seat | Skandic 500F. Skandic 600.

M5147596

Unavailable

Cover Seat | Skandic 500F (SWT).

M5147598

Unavailable

4

HINGE - Call your local BRP dealership

M549874

Unavailable

5

HINGE - Call your local BRP dealership

M5440581

Unavailable

6

Lock Plate

M549732

Unavailable

7

Rivet

M36071

Unavailable

8

SEALING STRIP PROFIL - Call your local BRP dealership

M5440059

Unavailable

Cushion

M390002

Unavailable

9

Welded Seat Base Weld

M5142066

Unavailable

Welded Seat Base Weld

M5246336

Unavailable

10

Support

M5443661

Unavailable

11

Pivot Pin

M5344987

Unavailable

12

Lock Tongue

M5443664

Unavailable

13

SPRING - Call your local BRP dealership

M5444439

Unavailable

14

Screw

M40146

Unavailable

15

Elastic Stop Nut M4

232541414

$0.58

16

Cap

M28019

Unavailable

17

Flat Washer 8 mm

234081410

$0.83

18

Screw M4 X 16

M40144

Unavailable

19

Backrest | Skandic 500F. Skandic 600.

M539877

Unavailable

20

Backrest Foam

M539399

Unavailable

21

COVER-BACKREST - Call your local BRP dealership This part replaces M5340917.

5340917

Unavailable

22

Rivet

36005

$2.11

23

Rivet

M36489

Unavailable

24

Socket Head Screw M8 X 20

205082044

$1.15

25

Spacer

M5440665

Unavailable

26

Foam | SUV 550

M5344621

Unavailable

Foam

M5346331

Unavailable

Foam | SUV 600

M5346079

Unavailable

27

RH Support

M5144029

Unavailable

LH Support

M5144028

Unavailable

28

Rivet

36108

$1.90

29

NUT M6 - Call your local BRP dealership

M33066

Unavailable

30

Seat Retainer Cable

293750070

$12.99

Retainer Cable | SUV 600

M5447746

Unavailable

31

Keeper Cable | SUV 550

M5444464

Unavailable

32

Socket Head Screw M6 X 20

M40052

Unavailable

33

Screw M6 X 30 | SUV 550

M40149

Unavailable

34

Socket Head Screw M8 X 30

M40135

Unavailable

35

SPRING-HOLDER - Call your local BRP dealership

M5344443

Unavailable

Spring

M539455

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

38

TOOL KIT - Call your local BRP dealership

529035500

Unavailable

39

Lock Washer M6, Black

234161471

$0.53

40

Flat Washer 6 mm

234062410

$0.77

41

LATCH - Call your local BRP dealership

M5346383

Unavailable

42

PLATE - Call your local BRP dealership

M5446848

Unavailable

43

Counter Roller

605449087

$4.12

44

Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168.

40168

$2.11

45

Washer

20037

$2.11

46

HINGE - Call your local BRP dealership

M5446374

Unavailable

47

Screw

M40888

Unavailable

48

Seat Belt

M538856

Unavailable

49

Seat Belt Latch

M548824

Unavailable

50

Spring This part replaces M548834.

548834

$7.79

51

Frame | Skandic 500F (SWT).

M5146038

Unavailable

Frame | Skandic 500F (WT).

M5147741

Unavailable

Frame | Skandic 600F (WTLC).

M5145027

Unavailable
