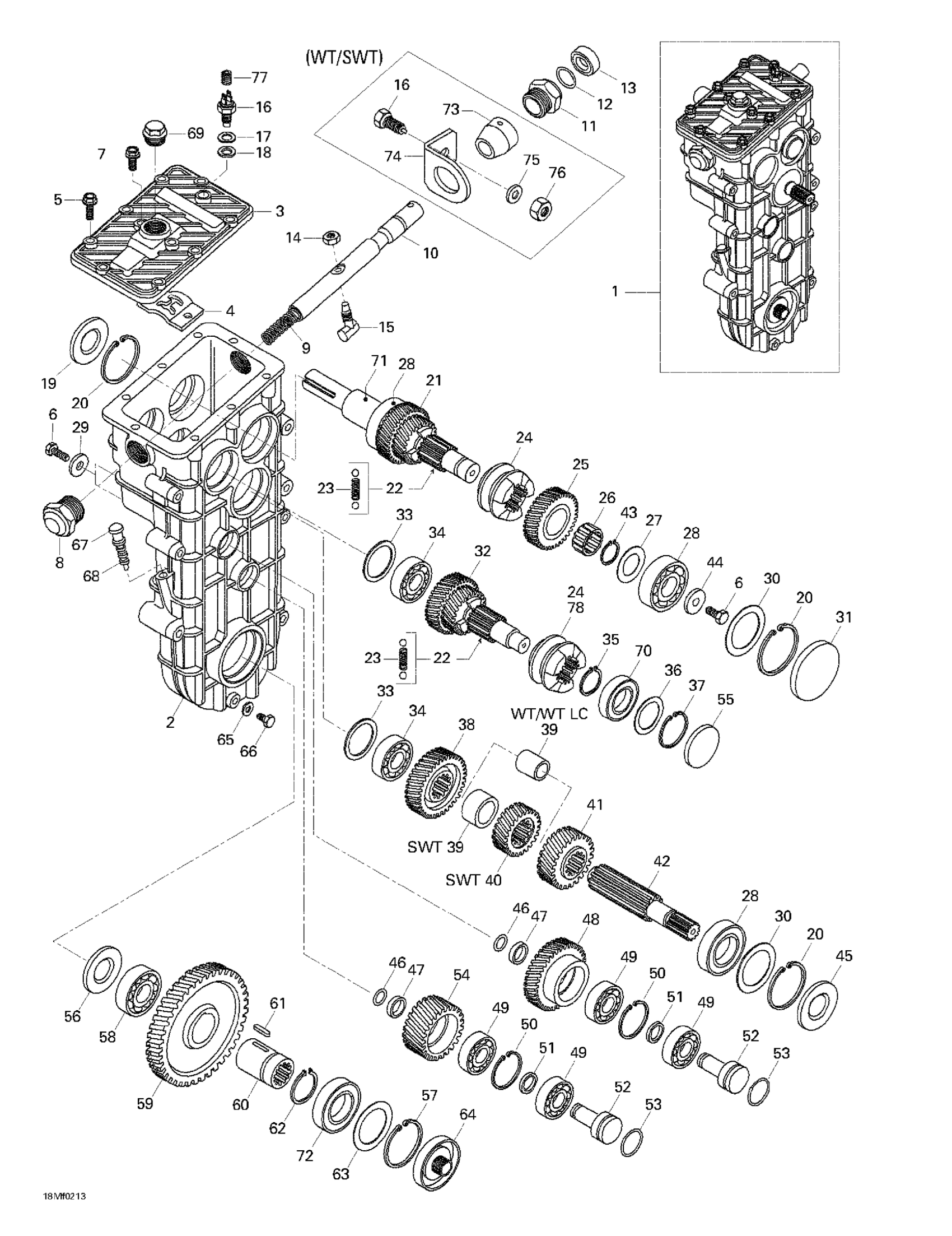

Ski-Doo Skandic 500/600, 2002 05- Transmission Diagram

#

Description
Price

1

Transmission - Call your local BRP dealership | Includes 1 to 70 This part replaces M870156245.

870156245

$2.00

1

Transmission - Call your local BRP dealership | Includes 1 to 70 This part replaces M870156245.

870156245

$2.00

1

Transmission Ass'y | SUV 600, Includes 1 to 71

M870156150

Unavailable

2

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

Unavailable

3

COVER - Call your local BRP dealership

M875156043

Unavailable

4

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

5

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

6

Hex. Screw M8 X 20

207182044

$0.74

7

Screw

M534801362

Unavailable

8

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

Unavailable

9

Spring This part replaces M875156078.

875156078

$109.99

10

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

11

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

12

O-ring This part replaces M614601523.

614601523

$11.60

13

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

14

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

15

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

16

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

Unavailable

17

Shim | Skandic 600.

M875156225

Unavailable

18

Shim

M617391218

Unavailable

19

Oil seal This part replaces M614103562.

614103562

$52.99

20

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

$12.99

21

COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.

875156063

Unavailable

Variator Shaft | Includes 13 to 15

M875156155

Unavailable

22

Ball This part replaces M616810064.

616810064

$26.99

23

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

Unavailable

24

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

25

SPROCKET Z=27 L.H. - Call your local BRP dealership This part replaces M875156052.

875156052

Unavailable

Sprocket 29 Th

M875156135

Unavailable

26

Needle bearing This part replaces M611002529.

611002529

$27.49

27

WASHER-AXIAL - Call your local BRP dealership

M616092542

Unavailable

28

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

29

Washer | Skandic 500F. Skandic 600.

M875156099

Unavailable

WASHER - Call your local BRP dealership

M501150902

Unavailable

30

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

31

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

32

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

Unavailable

33

Plug This part replaces M875152953.

875152953

$42.99

34

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

35

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

$12.49

36

Shim

M617394252

Unavailable

37

LOCK RING - Call your local BRP dealership

M617330052G

Unavailable

38

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

Unavailable

39

SLEEVE - Call your local BRP dealership

M875156087

Unavailable

SLEEVE - Call your local BRP dealership

M875156088

Unavailable

40

Sprocket 24 Th

M875156060

Unavailable

Sprocket 29Th

M875156151

Unavailable

41

Sprocket 29Th | SUV 550

M875156051

Unavailable

Sprocket 27 Th

M875156136

Unavailable

42

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

Unavailable

43

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

Unavailable

44

WASHER - Call your local BRP dealership

M875156112

Unavailable

45

Oil seal This part replaces M614102562.

614102562

$51.99

46

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

47

Shim This part replaces M875156094.

875156094

$21.99

48

SPROCKET-28 - Call your local BRP dealership This part replaces M875156050.

875156050

Unavailable

Sprocket 33 Th

M875156059

Unavailable

Sprocket 28Th

M875156206

Unavailable

49

BALL BEARING - Call your local BRP dealership This part replaces M610063036.

610063036

Unavailable

BALL BEARING - Call your local BRP dealership This part replaces M610063036.

610063036

Unavailable

50

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

Unavailable

51

Washer

M875147205

Unavailable

52

Axe *Shaft This part replaces M875147204.

875147204

$132.49

53

O-ring This part replaces M614602431.

614602431

$11.60

54

SPROCKET 31 TH - Call your local BRP dealership

M875156049

Unavailable

Sprocket 26 Th

M875156058

Unavailable

Sprocket 31 Th

M875156156

Unavailable

55

Plug This part replaces M614100052.

614100052

$28.49

56

Seal oil - Call your local BRP dealership | Skandic 500F. This part replaces M2652101.

2652101

$16.99

Oil seal This part replaces M614102852.

614102852

$25.99

57

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

Unavailable

58

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

59

SPROCKET-55 - Call your local BRP dealership This part replaces M875156048.

875156048

Unavailable

Sprocket 59 Th

M875156057

Unavailable

Sprocket 53 Th

M875156114

Unavailable

60

Lower Shaft | Skandic 500F. Skandic 500F (SWT).

M875136962

Unavailable

SHAFT - Call your local BRP dealership

M875156218

Unavailable

61

Key | Skandic 500F. Skandic 500F (SWT).

M603345070

Unavailable

KEY - Call your local BRP dealership

M603345080

Unavailable

62

CIRCLIP - Call your local BRP dealership

M617300040

Unavailable

63

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

Unavailable

64

Bouchon *Plug

M875156104

Unavailable

65

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

66

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

67

Filler Cap Ass'y

M875156097

Unavailable

68

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

Unavailable

69

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

70

Bearing - Call your local BRP dealership This part replaces M6304.

6304

$41.99

71

Sleeve

M875156153

Unavailable

Sleeve

M875156089

Unavailable

72

BALL BEARING - Call your local BRP dealership This part replaces M610060084.

610060084

Unavailable

73

SLEEVE - Call your local BRP dealership

M5446699

Unavailable

74

BRACKET - Call your local BRP dealership

M5346698

Unavailable

75

WASHER - Call your local BRP dealership

M20016

Unavailable

76

NUT - Call your local BRP dealership

M33021

Unavailable

77

Threated Plug

M640025012S

Unavailable

78

Wheel Clutch

M875156131

Unavailable
