Description

Price

1

Flange Connector

420810955

$110.99

Flange Connector

420810868

$88.99

2

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

Socket Head Screw M6 x 16

420241237

$2.22

3

Rewind Starter Ass'y | Includes 3 to 13

420888219

$169.49

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$174.49

4

Starter Housing | Skandic 500F. Skandic 500F (SWT).

420811345

Unavailable

Starter Housing

420910256

$94.99

5

Rewind Spring

420939115

$30.49

6

Rope Sheave

420852480

$63.99

Rope Sheave

420852285

Unavailable

7

Was 412500100 Rope-Starter

219704403

$158.99

8

Key Clamp

420852070

$4.23

9

Pawl

420852296

$20.99

Pawl

420852633

$33.99

10

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

11

Stage Sleeve

420847926

$16.33

12

Lock Ring

420852520

$9.27

13

Locking Element

420845560

$2.11

14

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

Torx Flange Screw M6 X 20

420441386

$2.11

15

Starter Grip

572084400

$14.83

16

O-Ring

420250400

$5.39

17

Molykote PG 54, 10 g

420899763

$21.99

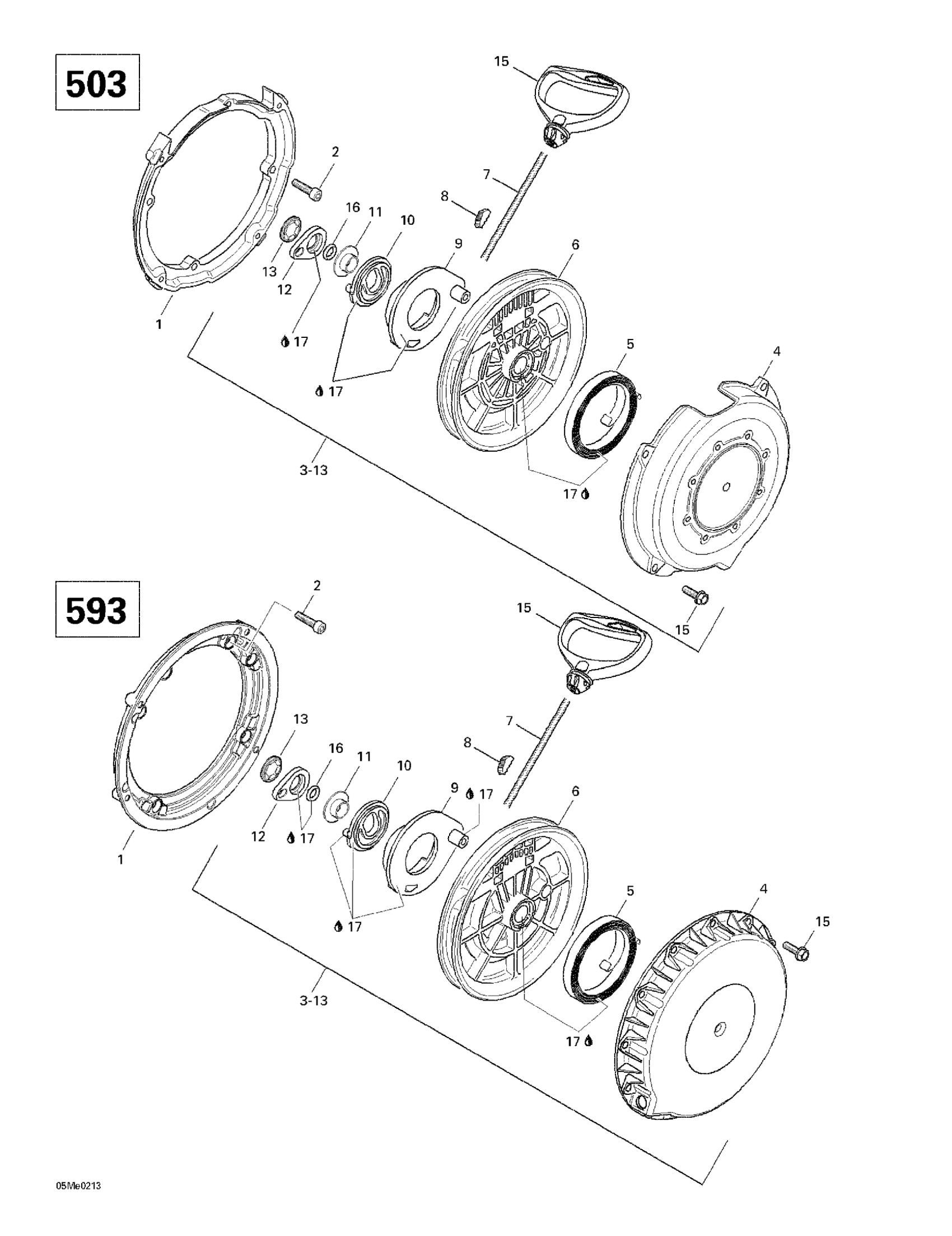

Ski-Doo Skandic 500/600, 2002 04- Rewind Starter (503) Diagram

Flange Connector

Flange Connector

Allen Screw M6 x 22 This part replaces 420840401.

Socket Head Screw M6 x 16

Rewind Starter Ass'y | Includes 3 to 13

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

Starter Housing | Skandic 500F. Skandic 500F (SWT).

Starter Housing

Rewind Spring

Rope Sheave

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

Pawl

PAWL LOCK - Call your local BRP dealership

Stage Sleeve

Lock Ring

Locking Element

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

Torx Flange Screw M6 X 20

Starter Grip

O-Ring

Molykote PG 54, 10 g
