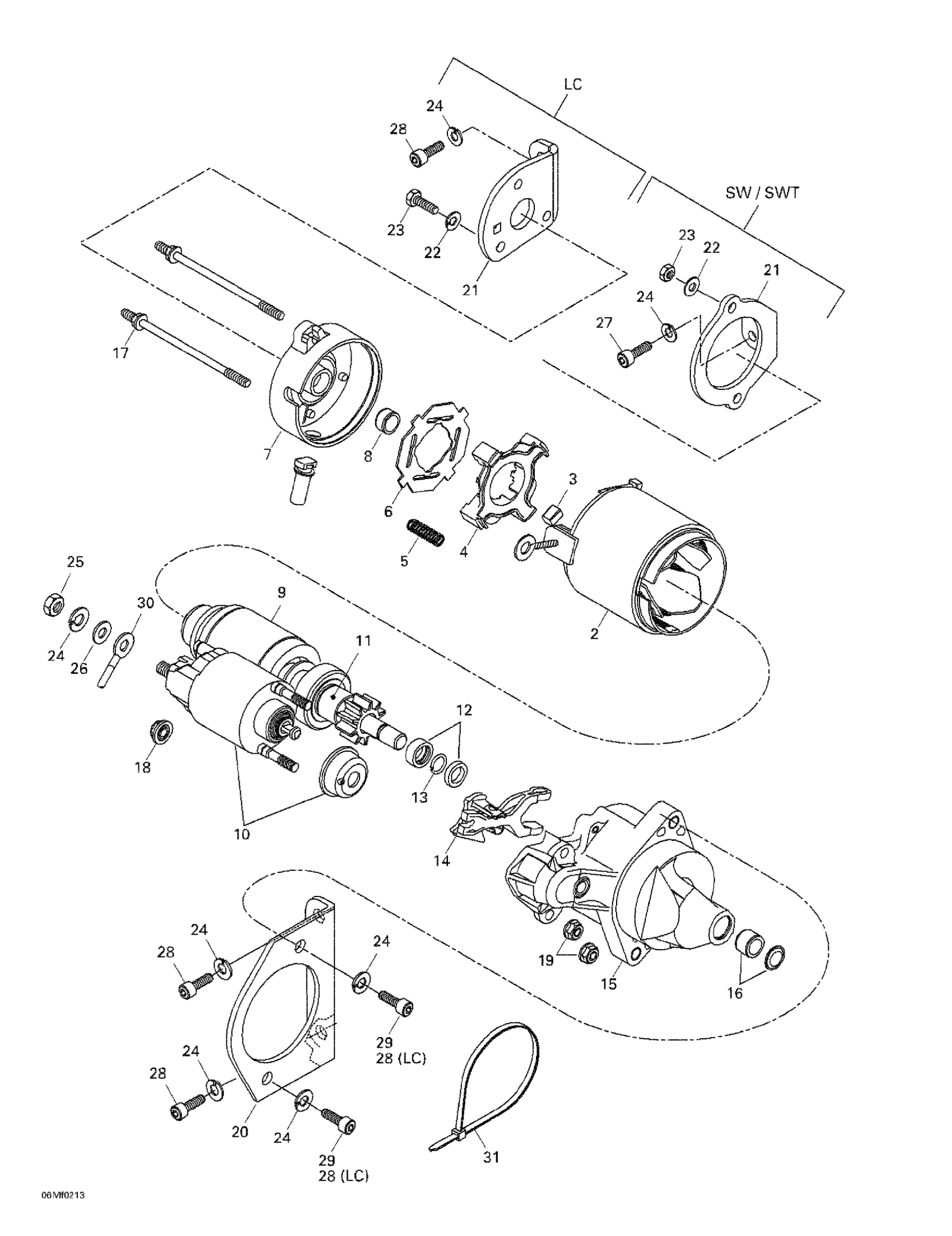

Ski-Doo Skandic 500/600, 2002 04- Electric Starter Diagram

#

Description
Price

1

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

$299.99

Electric Starter | Skandic 600.

515175565

Unavailable

2

HOUSING STARTER - Call your local BRP dealership

410209500

Unavailable

Starter Housing

410213106

Unavailable

3

BRUSH - Call your local BRP dealership

410209600

Unavailable

BRUSH KIT - Call your local BRP dealership

410213107

Unavailable

4

BRUSH HOLDER - Call your local BRP dealership

410209700

Unavailable

5

BRUSH SPRING - Call your local BRP dealership

410209800

Unavailable

6

INSULATOR - Call your local BRP dealership

410209900

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

BRASS BUSHING - Call your local BRP dealership

410210100

Unavailable

9

Armature Assy.

410210200

Unavailable

10

SWITCH ASSY. - Call your local BRP dealership

410210300

Unavailable

11

STARTER CLUTCH - Call your local BRP dealership

410210400

Unavailable

12

NUT - Call your local BRP dealership

410212500

Unavailable

13

CIRCLIP - Call your local BRP dealership

410212600

Unavailable

14

LEVER - Call your local BRP dealership

410210700

Unavailable

Lever

410213109

Unavailable

15

Housing

410210800

Unavailable

Housing

410213113

Unavailable

16

BRASS BUSHING - Call your local BRP dealership

410210900

Unavailable

17

BOLT - Call your local BRP dealership

410212000

Unavailable

Bolt | Skandic 600.

410213112

Unavailable

18

NUT - Call your local BRP dealership

410211100

Unavailable

19

NUT - Call your local BRP dealership

410211200

Unavailable

20

STARTER BRACKET, P.T.O. - Call your local BRP dealership

420951415

Unavailable

Starter Bracket (PTO) | Skandic 600.

515175142

Unavailable

21

STARTER BRACKET, M.A.G. - Call your local BRP dealership

420951426

Unavailable

Starter Bracket (MAG) | Skandic 600.

515175441

Unavailable

22

Washer 5,3 mm

20008

$0.74

Lock Washer M6, Black

234161471

$0.53

23

Elastic Stop Nut M5

232551414

$0.87

Hex. Screw M6 X 16

207161644

$0.74

24

Lock Washer 8 mm

234181401

$0.92

25

NUT - Call your local BRP dealership

M33003

Unavailable

26

Flat Washer 8 mm

234081410

$0.83

27

Hex. Screw M8 X 16

M40066

Unavailable

28

Socket Head Screw M8 X 20

205082044

$1.15

29

Hex. Screw M8 X 20

207182044

$0.74

30

Battery Wire (+) | Skandic 500F. Skandic 500F (SWT).

M349886

Unavailable

Battery Wire (+) | Skandic 600.

M5446596

Unavailable

31

Tie-Rap 180 mm

414115200

$0.11
