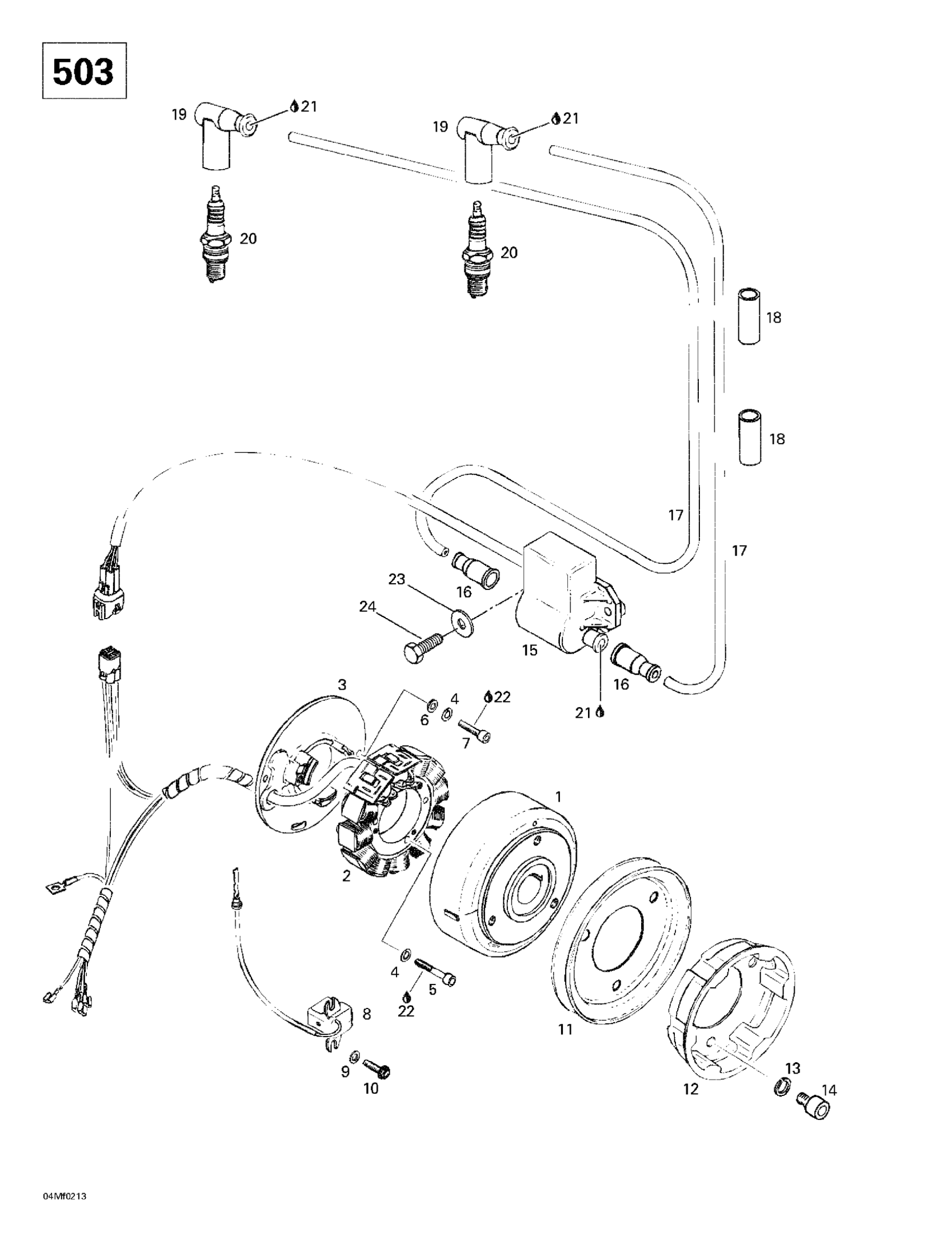

Ski-Doo Skandic 500/600, 2002 03- Magneto (503) Diagram

#

Description
Price

1

Flywheel

420996824

Unavailable

2

STATOR PLATE ASS?Y. 12V240W - Call your local BRP dealership | Includes 2 - 5. Skandic 500F. Skandic 500F (SWT).

420886605

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Lock Washer

420945750

Unavailable

5

Socket Head Screw M5 X 30 | Skandic 500F. Skandic 500F (SWT).

420940880

Unavailable

6

Washer 5.3

420927574

$1.90

7

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

8

PICK-UP ASS?Y - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

420965763

Unavailable

9

WASHER - Call your local BRP dealership

420827800

Unavailable

10

Taptite Screw M5 X 16

420941928

Unavailable

11

V-Belt Pulley

420980486

$37.99

12

Rope Sheave

420852414

$29.49

13

Lock Washer

420845311

$1.90

14

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

15

Electronic Box Ass’Y | Includes 15 - 19. Skandic 500F. Skandic 500F (SWT).

420965757

$459.99

16

Protection Cap | Skandic 500F. Skandic 500F (SWT).

410112600

Unavailable

17

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

18

Protection Hose

540806051

Unavailable

19

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

20

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

21

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

Flat Washer 6 mm

234061410

$1.36

24

Hex. Screw M6 X 20 | XT Models

207162044

$0.76
