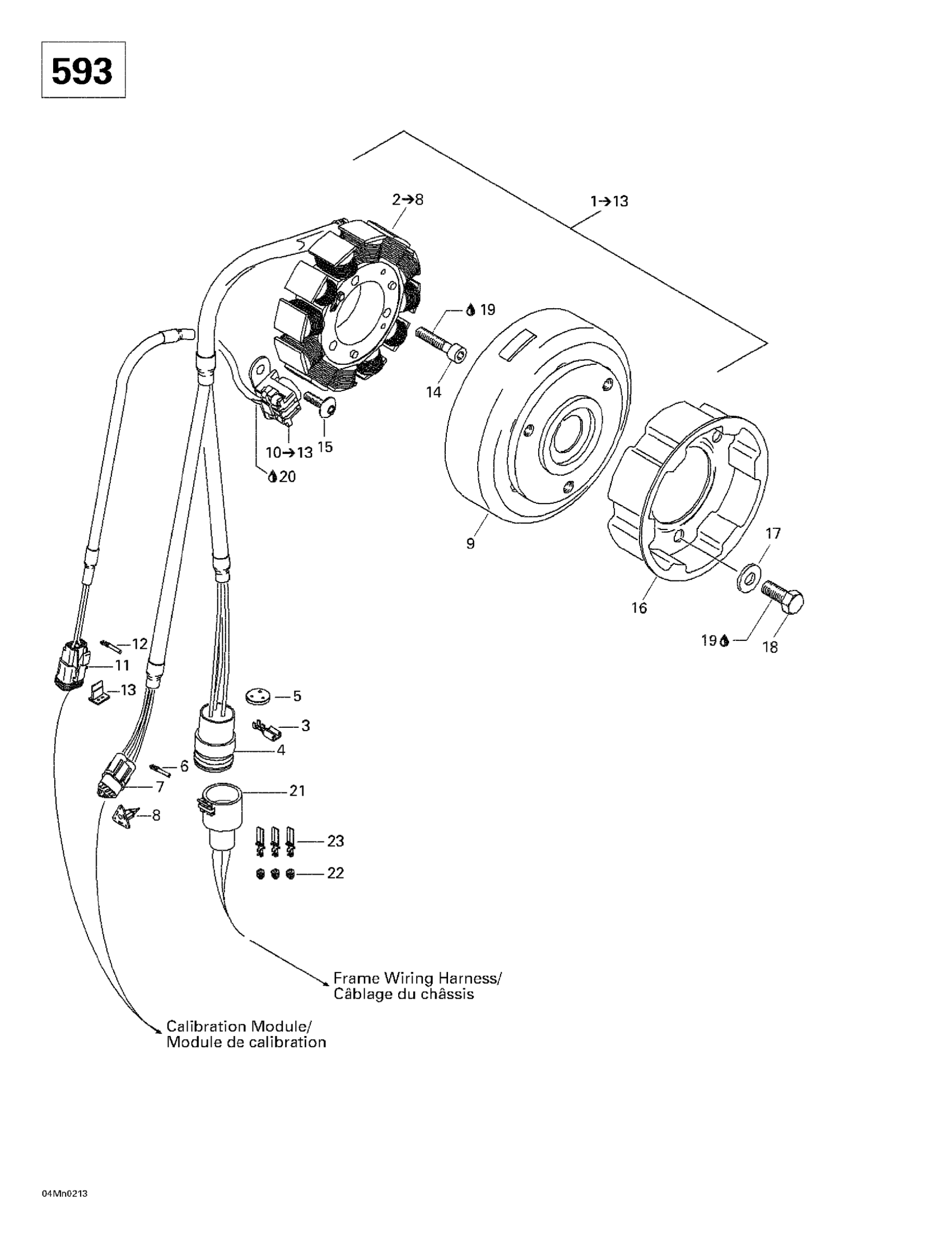

Ski-Doo Skandic 500/600, 2002 03- Magneto (12V, 290W) (593) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

STATOR PLATE - Call your local BRP dealership | Includes 1 - 7.

410922936

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Female Terminal

278000632

$2.09

7

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

8

Female Lock

409207200

$4.39

9

Flywheel

410922937

Unavailable

10

Pick-up Ass'y | Includes 9 - 12.

410922938

Unavailable

11

Female Connector, 2 Circuits

409207300

$9.85

12

Female Terminal

278000632

$2.09

13

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

14

Socket Head Screw M6 X 30

205063044

$1.69

15

Torx Screw M6 X 16

420640324

$2.11

16

Starting Pulley

420852590

$29.49

17

Washer-Lock Din.128

420945832

$1.15

18

Socket Head Screw M8 X 12

420841520

$1.69

19

Loctite 243, 10 ml

293800060

$21.49

20

Not Available As Spare Part - Friction Washer

Unavailable

21

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

22

SEAL - Call your local BRP dealership

409208500

Unavailable

23

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable
