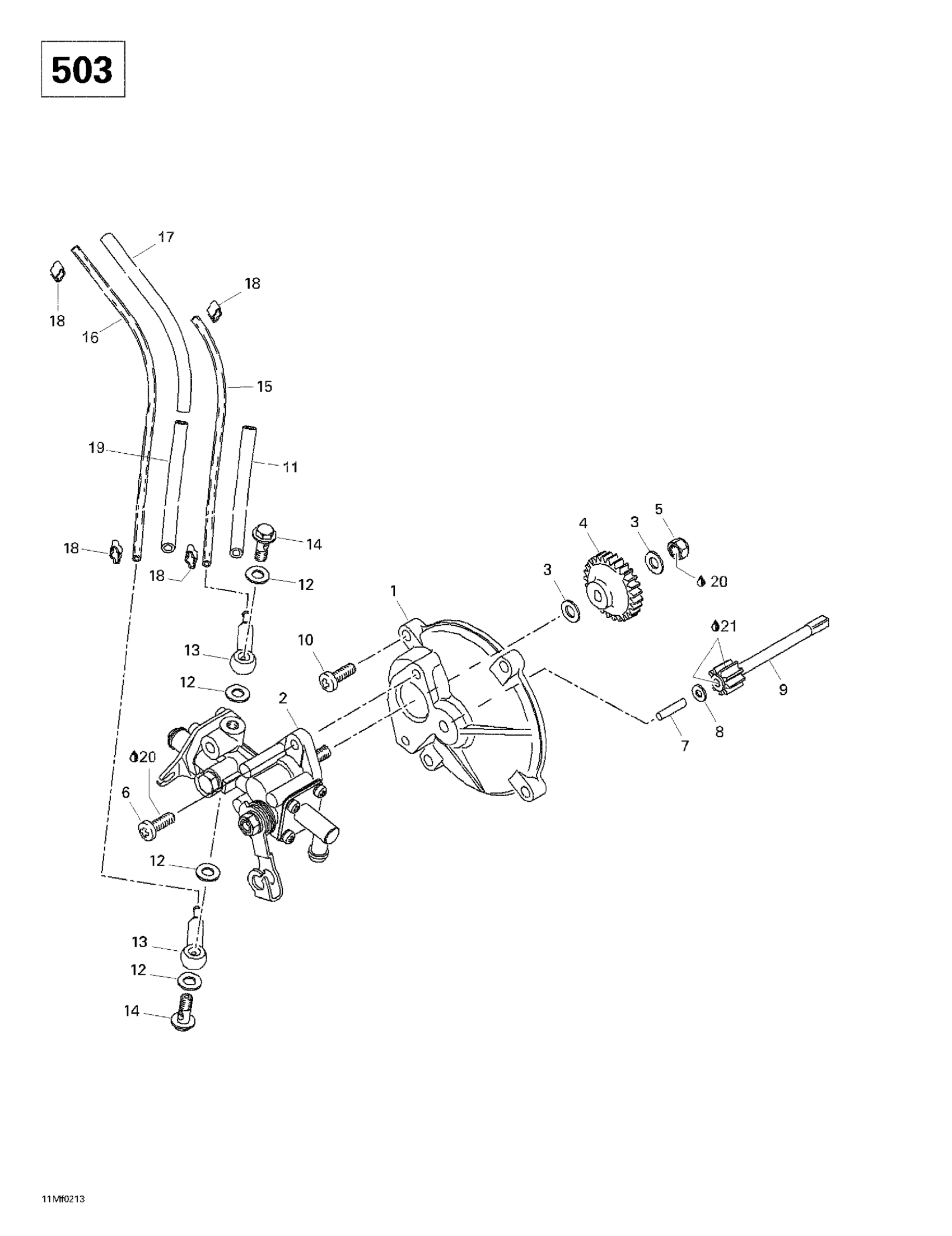

Ski-Doo Skandic 500/600, 2002 Oil Injection System (503) Diagram

#

Description
Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

2

OIL PUMP ASS'Y - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

420887998

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$14.10

5

Elastic Stop Nut M6

232561414

$1.78

6

Screw

420841971

$2.82

7

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

8

Flat Washer 4

420244072

$0.81

9

Gear, 9 Teeth

420935970

$14.90

10

SCREW - Call your local BRP dealership

420841976

Unavailable

11

Isolation Line 90 mm | 380 F.

420960750

Unavailable

12

Sealing Washer

404146600

$0.72

13

Valve Ass’Y

420956010

$16.39

14

Banjo Bolt M6 X 16

404146800

Unavailable

15

Oil Hose 1500Mm Long

219704404

$15.64

16

Oil Hose 1500Mm Long

219704404

$15.64

17

Hose 6 Mm 15000Mm Long

219704360

$120.12

18

Clamp

420853840

$4.15

19

Isolation Line

420960728

$4.15

20

Loctite 243, 10 ml

293800060

$21.49

21

Dow Corning 111, 150 g

413707000

$59.99
