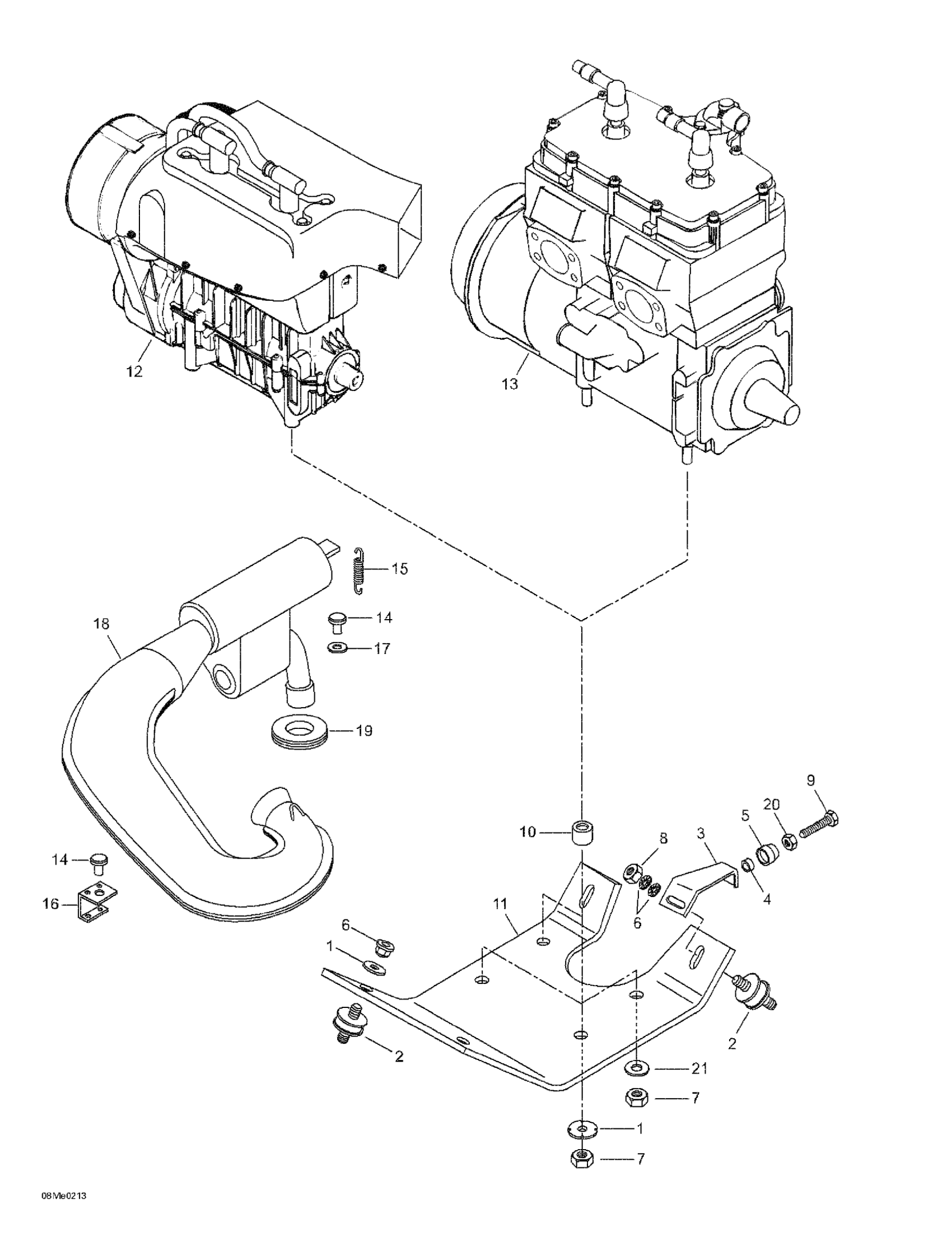

Ski-Doo Skandic 500/600, 2002 01- Engine Support Diagram

#

Description
Price

1

Lock Washer

512056700

$3.17

2

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

3

Support

M539902

Unavailable

4

Rubber Washer

M2846014

Unavailable

5

SLEEVE - Call your local BRP dealership

605449240

Unavailable

6

Lock Washer D10

20068

$2.00

7

Elastic Locking Nut M10 X 1.5

233601416

$1.69

8

Hex. Nut M10 X 1.5

232006414

$1.37

9

Hex. Screw M8 X 25

M40121

Unavailable

10

Sleeve - Call Your Local BRP Dealership

M5440678

Unavailable

SLEEVE - Call your local BRP dealership

M5446347

Unavailable

11

Engine Support

M5342951

Unavailable

Engine Support

M5346175

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

<<593>> Engine | Skandic 600.

400509733

Unavailable

14

Rubber Bumper

514053654

$50.99

15

Spring This part replaces 420938795.

420938796

$9.27

16

Support | Skandic 500F. Skandic 500F (SWT).

M5444483

Unavailable

Support

M5442681

Unavailable

17

Washer

M20087

Unavailable

18

TUNED PIPE - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

420979853

Unavailable

TUNED PIPE - Call your local BRP dealership

420979856

Unavailable

19

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

20

NUT - Call your local BRP dealership

M33003

Unavailable

21

WASHER M10 - Call your local BRP dealership

20005

Unavailable
