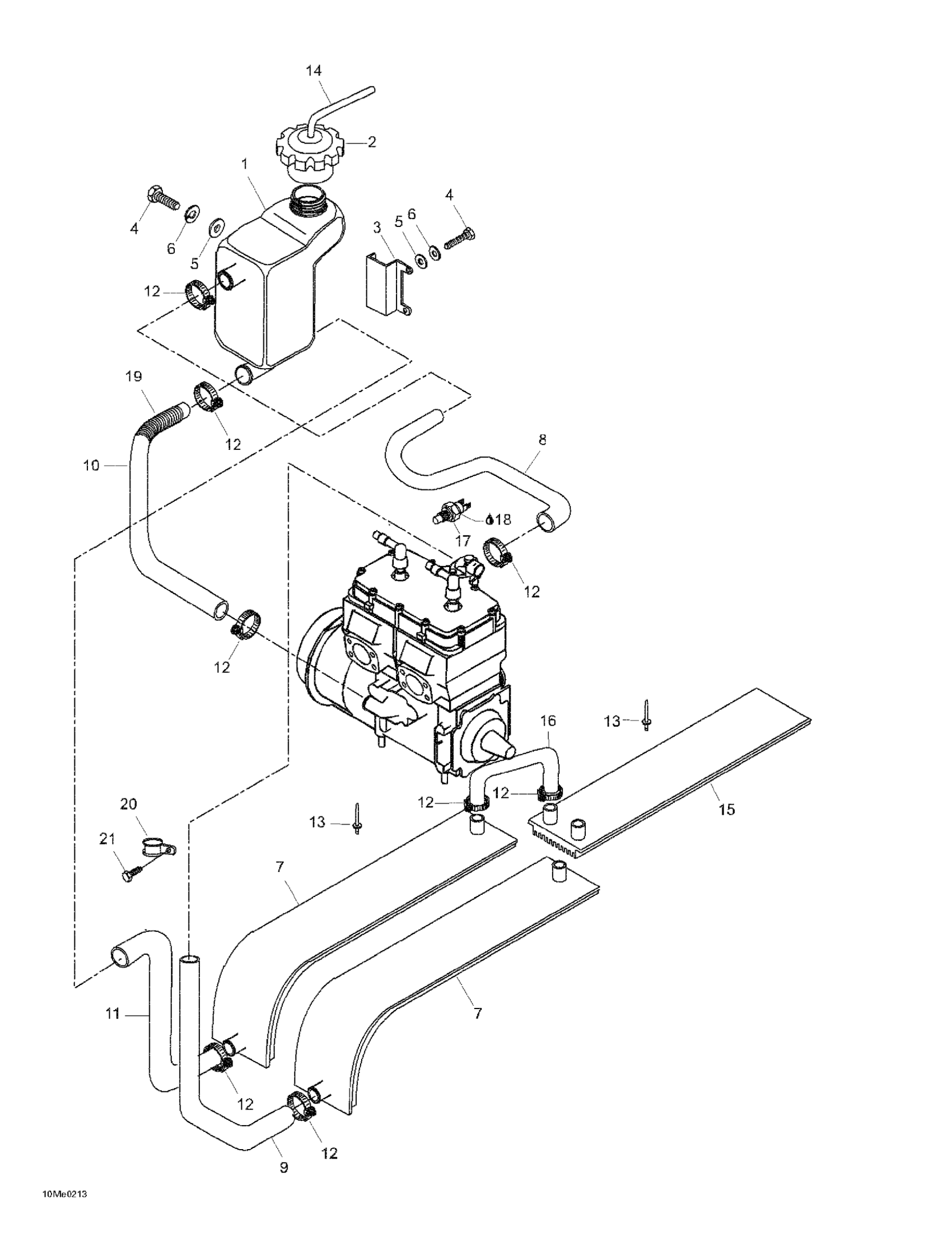

Ski-Doo Skandic 500/600, 2002 01- Cooling System (593) Diagram
#
Description
Price
1
Coolant Tank | Skandic 600.
M5142859
Unavailable
2
Cap
M21018
Unavailable
3
Tank Support | Skandic 600.
M5343345
Unavailable
7
RH Radiator
M5146386
Unavailable
LH Radiator
M5146385
Unavailable
8
Hose | Skandic 600.
M5246634
Unavailable
9
Hose
M5346201
Unavailable
10
Hose | Skandic 600.
M5346635
Unavailable
Hose
M5343357
Unavailable
11
Tube
M5347311
Unavailable
12
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
13
Rivet
M36489
Unavailable
15
Radiator
M5345916
Unavailable
16
Tube
M5445970
Unavailable
17
Temperature Sensor | Grand Touring 500.
512047000
Unavailable
19
Hose | Skandic 600.
M5446767
Unavailable
20
CLIP - Call your local BRP dealership
M27011
Unavailable
21
Screw
M40322
Unavailable
