1995 Yamaha Super JET (SJ700T) Hull - Deck 2 Diagram

← All diagrams

Find the part on the Hull - Deck 2 diagram for your 1995 Yamaha Super JET (SJ700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

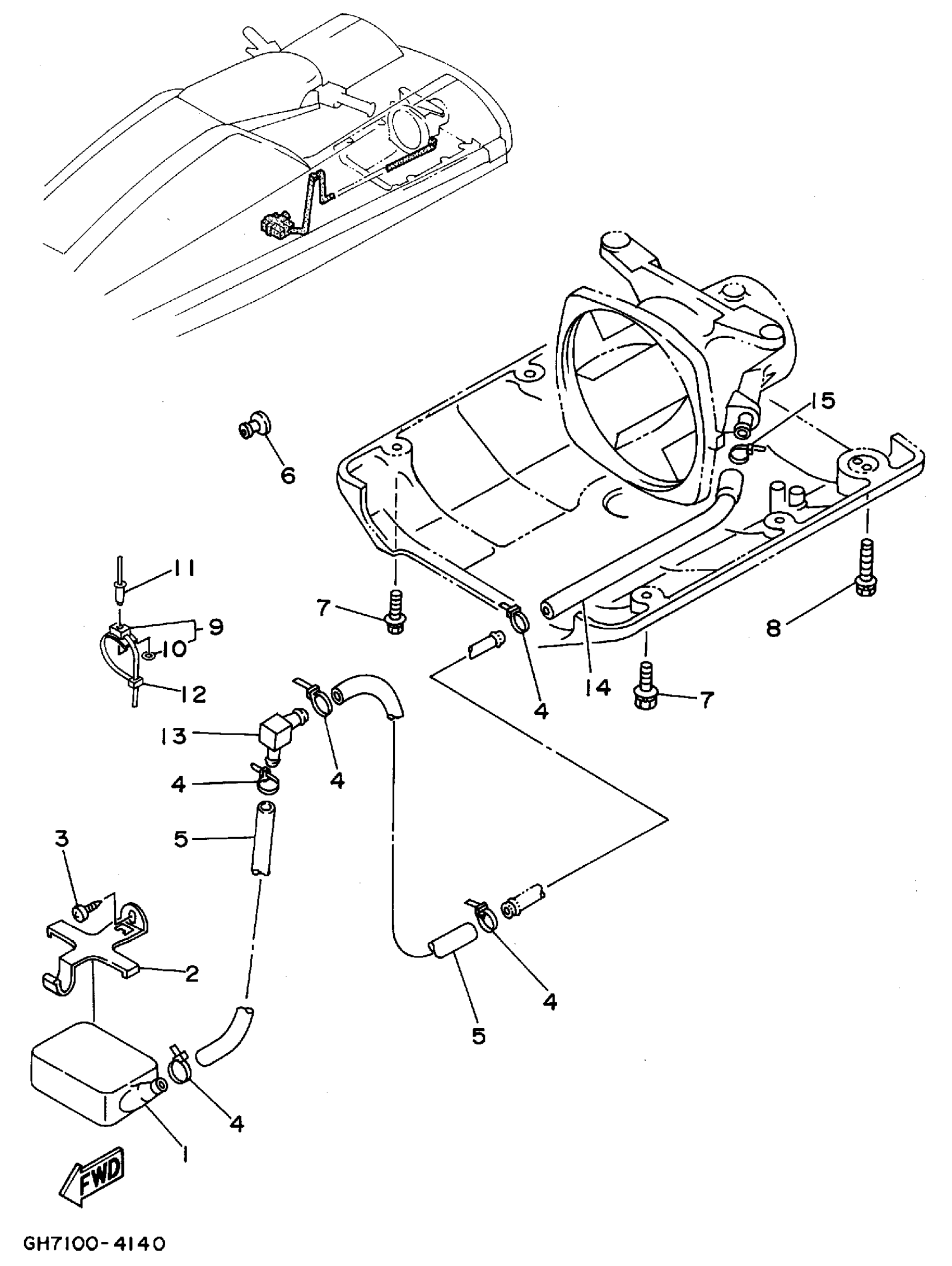

1995 Yamaha Super JET (SJ700T) Hull - Deck 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STRAINER, BILGE

F4R-6761D-00-00

1

$31.99

In stock

2

BASE, STRAINER BLIGE

EW2-67618-00-00

1

$37.39

In stock

3

1

$4.15

In stock

4

CLAMP

90465-10098-00

1

$2.24

In stock

5

HOSE (90445-14M04-00)

90445-149U1-00

1
Out of stock

6

PLUG

90338-09900-00

1
Out of stock

7

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

8

BOLT, WITH WASHER

90119-06914-00

1

$2.77

In stock

9

CLAMP COMP (EU0)

90600-91736-00

1

$6.68

In stock

10

. WASHER, PLAIN

90201-05925-00

1
Out of stock

11

RIVET, BLIND

90267-489UE-00

1
Out of stock

12

BAND (EU0)

90601-20009-00

1

$6.46

In stock

13

JOINT, HOSE

6K8-51162-00-00

1

$11.49

In stock

14

HOSE (L380)

90445-14M25-00

1

$19.46

In stock

15

CLAMP

90465-10098-00

1

$2.24

In stock
← Hull - Deck 1 Pole Pivot →
