1995 Yamaha Super JET (SJ700T) Hull - Deck 1 Diagram

← All diagrams

Find the part on the Hull - Deck 1 diagram for your 1995 Yamaha Super JET (SJ700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

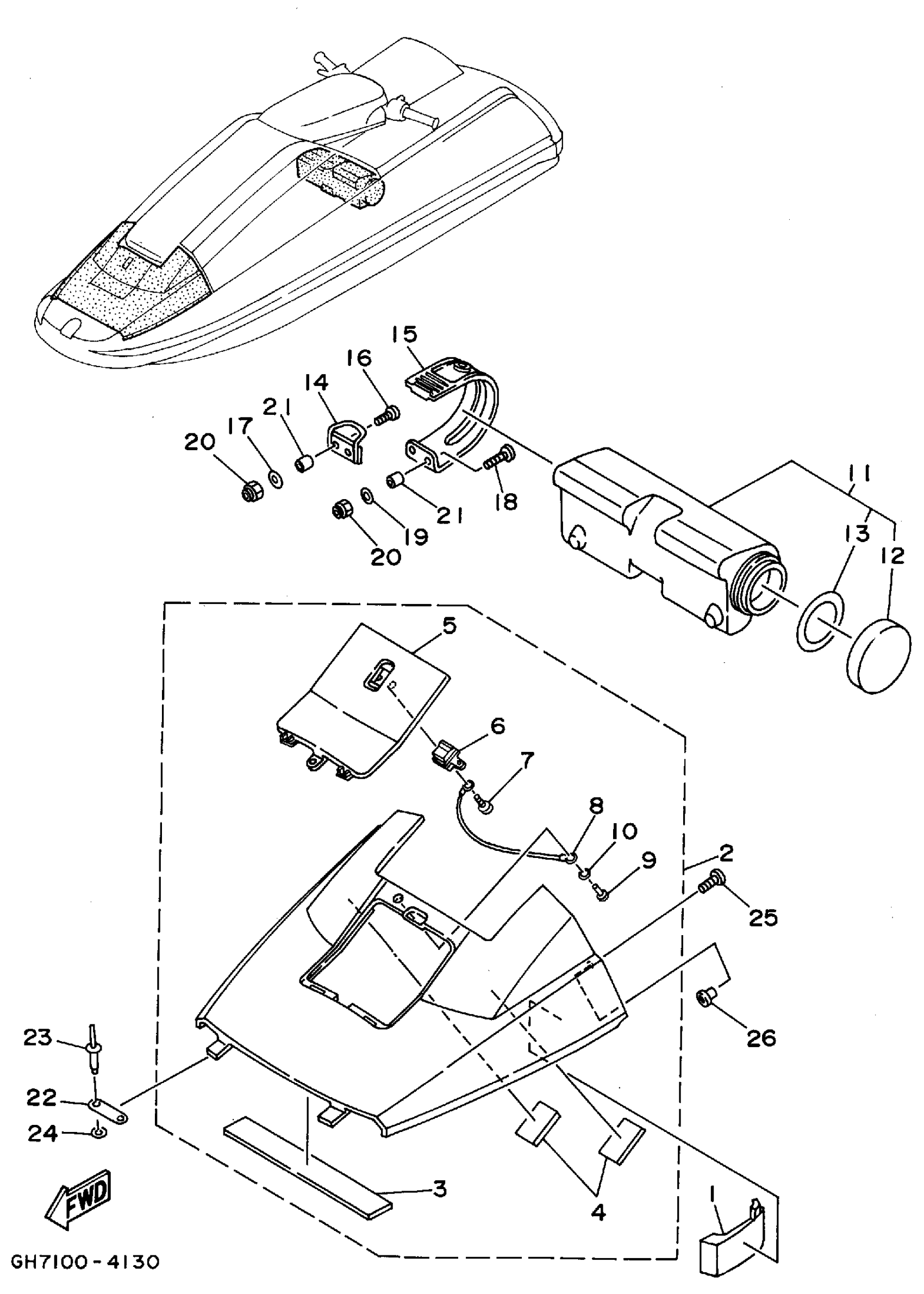

1995 Yamaha Super JET (SJ700T) Hull - Deck 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PROTECTOR

EW2-68953-00-00

1
Out of stock

2

BOW COVER ASSEMBLY

EW2-65210-00-P0

1
Out of stock

3

. PAD 1 (FR)

EW2-65212-00-00

1
Out of stock

4

. PAD 2

EW2-65213-00-00

1

$11.99

In stock

5

. COVER, TANK CAP

EW2-65221-00-P0

1
Out of stock

6

LOCK ASSY

1HX-21780-01-00

1
Out of stock

7

SCREW, TAPPING(MG5)

90164-04031-00

1
Out of stock

8

. STRING, LID

EW2-65226-00-00

1
Out of stock

9

RIVET, BLIND

90267-409U5-00

1
Out of stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

CASE 1 ASSEMBLY

EW2-65910-00-00

1
Out of stock

12

. CAP, CASE

EW2-65912-00-00

1

$23.99

In stock

13

. PACKING, CASE

EW2-65913-00-00

1

$6.00

In stock

14

BRACKET, CASE

EW2-65915-00-00

1
Out of stock

15

BAND, CASE

EW2-65919-00-00

1
Out of stock

16

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

17

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

18

SCREW, BIND

98980-05020-00

1
Out of stock

19

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

20

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

21

COLLAR

90387-05907-00

1
Out of stock

22

PLATE

EW2-65219-00-00

1
Out of stock

23

RIVET, BLIND

90267-409U3-00

1
Out of stock

24

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

25

SCREW

90149-05963-00

1
Out of stock

26

COLLAR

90387-06906-00

1
Out of stock
