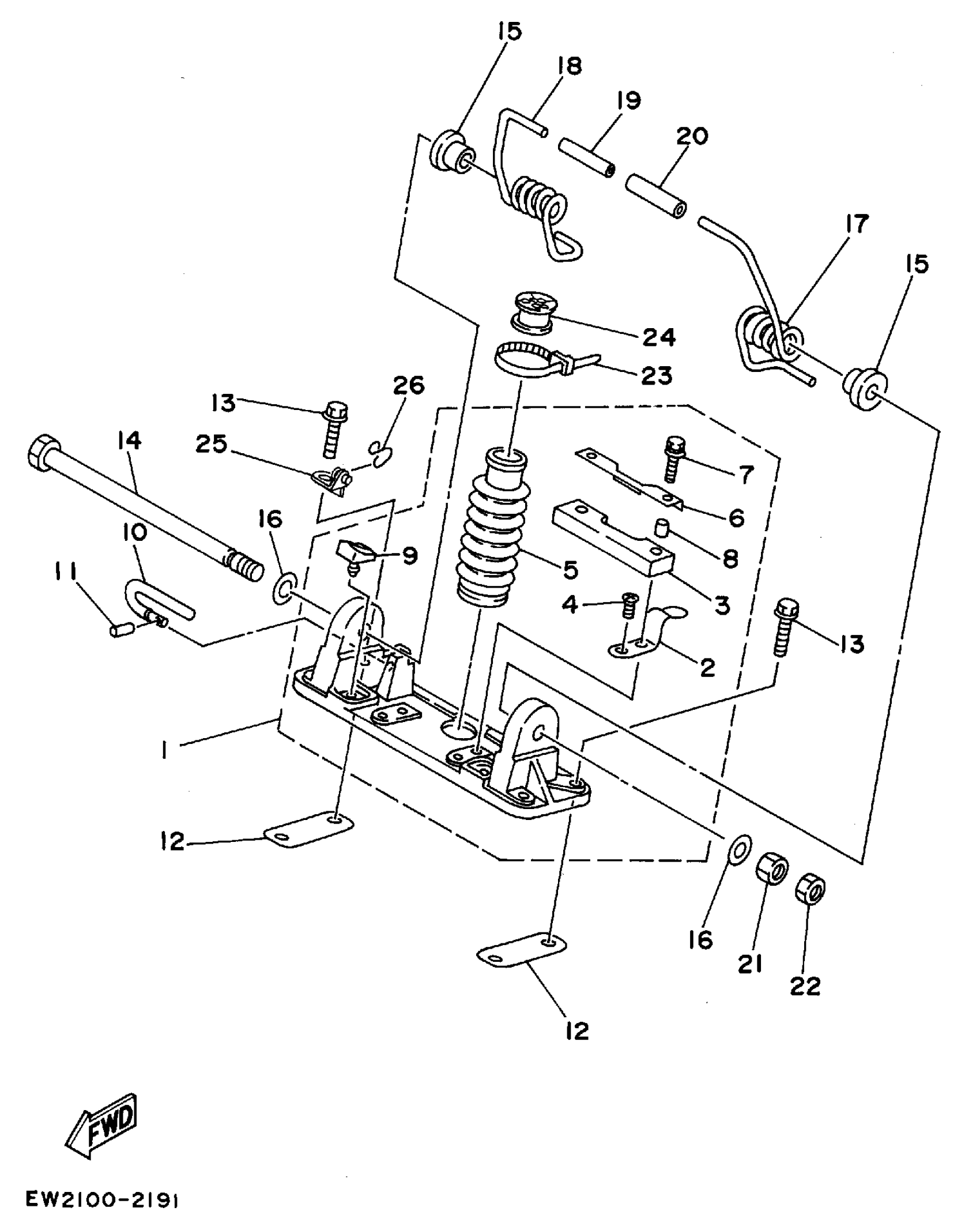

Yamaha SJ700T (SUPER JET) 1995 POLE PIVOT Diagram

#

Description
Price

1

POLE PIVOT ASSEMBLY

EW2-U1330-31-00

Unavailable

2

. STOPPER, HATCH 1

EW2-65135-00-00

Unavailable

3

. STOPPER, POLE

EW2-61337-30-00

Unavailable

4

SCREW,FLAT HEAD

98780-06010-00

Unavailable

5

. GROMMET

EW2-U1338-00-00

Unavailable

6

. PLATE, POLE STOPPER

EW2-6133E-00-00

Unavailable

7

BOLT H/W (FJ1)

90119-06918-00

$3.00

8

COLLAR

90387-07910-00

Unavailable

9

. DAMPER, STOPPER

EW2-U1336-00-00

Unavailable

10

PIN, STOPPER

EW2-61335-00-00

Unavailable

11

PIN, SPRING (663)

91690-30010-00

$5.53

12

PLATE, BRACKET

EW2-6133B-00-00

Unavailable

13

BOLT, FLANGE (EW2)

90105-08902-00

Unavailable

14

SHAFT, PIVOT

EW2-U1343-01-00

Unavailable

15

BUSH

EW2-61344-01-00

$10.49

16

WASHER

92990-14600-00

$6.18

17

SPRING, PIVOT (LH)

EW2-61391-11-00

Unavailable

18

SPRING, PIVOT (RH)

EW2-61391-21-00

Unavailable

19

SPRING, CONNECTOR

EW2-61392-30-00

$27.99

20

BUFFER, TUBE

EW2-61393-30-00

$5.45

21

NUT (98880-14100-00)

99780-14100-00

Unavailable

22

NUT

98880-14300-00

Unavailable

23

BAND (EU0)

90601-20009-00

$6.36

24

PACKING, CABLE

EW2-61465-00-00

$13.99

25

HOLDER, SPRING

EW2-6133D-00-00

Unavailable

26

SPRING, TORSION

EW2-61395-30-00

$6.82
