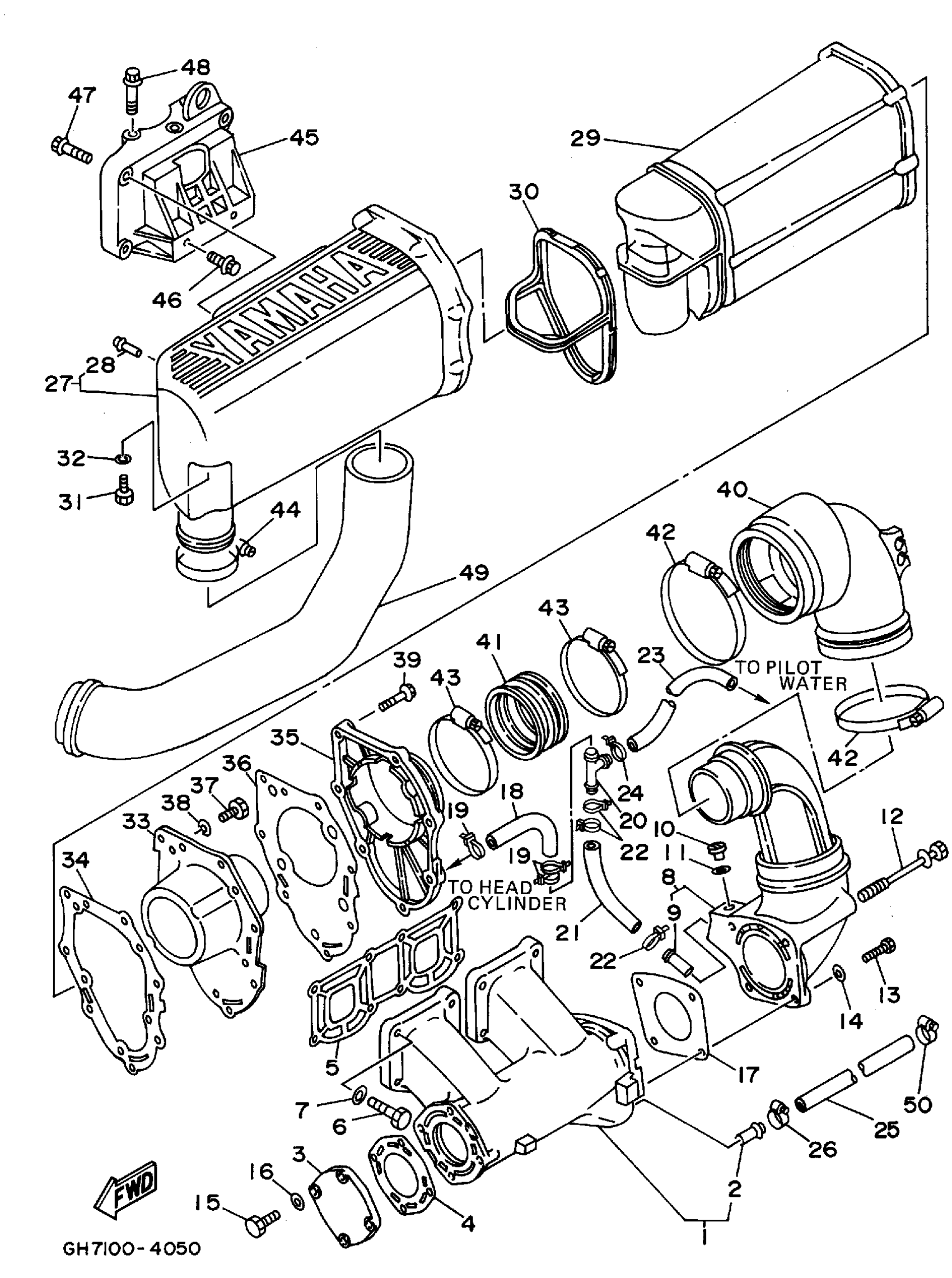

Yamaha SJ700T (SUPER JET) 1995 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

61X-14711-02-00

$478.77

2

. NIPPLE

6K8-51129-00-00

$9.62

3

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

$56.99

4

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.06

5

GASKET, EXHAUST PIPE

61X-14613-A1-00

$27.26

6

BOLT

97013-08035-00

$4.48

7

.. WASHER, PLATE

92990-08600-00

$2.17

8

RING, JOINT

61L-14712-00-00

Unavailable

9

. NIPPLE

6K8-51129-00-00

$9.62

10

PLUG, STRAIGHT SCREW

90340-08002-00

$10.69

11

GASKET

90430-08003-00

$1.08

12

BOLT, WITH WASHER

97513-08590-00

Unavailable

13

BOLT (682)

97013-08025-00

$6.34

14

.. WASHER, PLATE

92990-08600-00

$2.17

15

BOLT

90101-06M27-00

$3.14

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.58

18

HOSE

90445-14M11-00

Unavailable

19

CLAMP

90465-10098-00

$1.68

20

PIPE, JOINT 3

6E5-24378-00-00

$15.68

21

HOSE

90445-14M11-00

Unavailable

22

CLAMP

90465-10098-00

$1.68

23

HOSE (L1300)

90445-14M22-00

Unavailable

24

CLAMP

90465-10098-00

$1.68

25

HOSE

90445-14M03-00

Unavailable

26

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

27

MUFFLER 2

6R7-14721-00-8S

$363.62

28

. PIPE, JOINT

6R7-14485-00-00

$11.99

29

SILENCER, EXHAUST

6R7-14753-00-8S

$203.02

30

SEAL, RUBBER 1

6R7-15761-00-00

$27.26

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

DIFFUSER

6R7-14785-00-8S

$104.53

34

. GASKET, SILENCER

6R7-14755-A0-00

$17.35

35

OUTER COVER, EXHAUST

6R7-41113-00-8S

$109.08

36

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$21.12

37

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

38

WASHER, PLAIN (646)

92990-06600-00

Unavailable

39

BOLT, WITH WASHER(63M)

97513-06530-00

$3.98

40

JOINT, EXHAUST 1

61L-14615-00-00

$99.53

41

JOINT, EXHAUST 2

61L-14625-00-00

$75.81

42

CLAMP, HOSE

90460-90M11-00

$42.60

43

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

44

CLAMP, HOSE(6R7)

90460-64M15-00

Unavailable

45

STAY, MUFFLER 1

6M6-14771-00-00

$98.47

46

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

47

BOLT, WASHER BASED

90105-10M45-00

$5.45

48

BOLT, WITH WASHER

90119-10M72-00

$5.55

49

PIPE, OUTLET

EW2-E4752-00-00

Unavailable

50

BAND, HOSE 11

90601-11062-00

Unavailable
