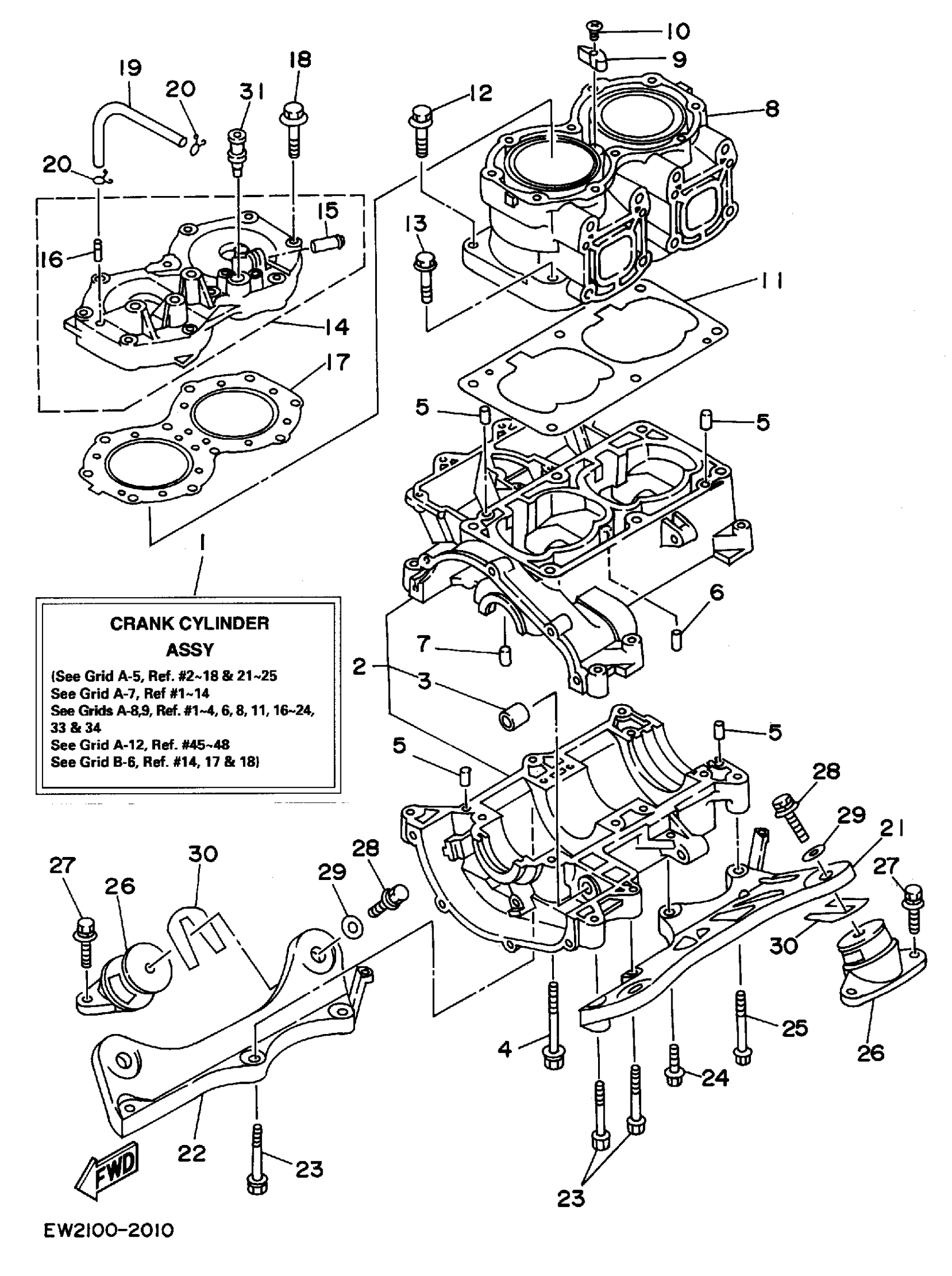

Yamaha SJ700T (SUPER JET) 1995 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

61X-W0090-14-8S

Unavailable

2

CRANKCASE ASSY

61X-15100-00-8S

Unavailable

3

. BUSH, SOLID

90380-12M29-00

Unavailable

4

BOLT, WITH WASHER

90119-08M55-00

$3.03

5

PIN, DOWEL (614)

93606-12019-00

$3.50

6

PIN (2H7)

93603-10049-00

Unavailable

7

PIN, DOWEL (8H1)

93604-07141-00

$1.29

8

CYLINDER 1

61X-11311-01-8S

$767.15

9

ANODE

6E5-11325-00-00

$4.52

10

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

11

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

12

BOLT, WITH WASHER

90119-10M56-00

$10.04

13

BOLT (6F5)

90119-10M07-00

$4.21

14

HEAD, CYLINDER 1

61X-11111-09-8S

Unavailable

15

. NIPPLE

6K8-51129-00-00

$9.87

16

. PIPE, JOINT

6R7-14485-00-00

$11.93

17

GASKET, CYLINDER HEAD 1

61X-11181-A1-00

Unavailable

18

BOLT, WITH WASHER

90119-08019-00

$5.00

19

HOSE (L200)

90445-07M19-00

Unavailable

20

CLIP

90467-06016-00

$3.08

21

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$129.84

22

BRACKET, REAR UPPER 1

6R7-21425-01-00

$137.30

23

BOLT, WITH WASHER

90119-10M23-00

$10.04

24

BOLT, WITH WASHER

90119-10M00-00

$8.56

25

BOLT, WITH WASHER

90119-10M03-00

$8.94

26

MOUNT RUBBER

6R7-44517-00-8S

$86.17

27

BOLT, WITH WASHER

90119-08904-00

$3.02

28

BOLT, WITH WASHER

90119-08038-00

$4.72

29

PLATE

EU0-67324-00-00

$10.99

30

SHIM (T=0.1)

EU0-67354-A0-00

$4.31

30

SHIM (T=0.3)

EU0-67354-B0-00

$5.17

30

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

30

SHIM (T=1.0)

EU0-67354-D0-00

$3.88

30

SHIM (T=2.0)

EU0-67354-E0-00

$3.88

31

JET DRIVE FLUSH

ABB-FLUSH-JD-00

$14.81
