1995 Yamaha Super JET (SJ700T) Engine Hatch Diagram

← All diagrams

Find the part on the Engine Hatch diagram for your 1995 Yamaha Super JET (SJ700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

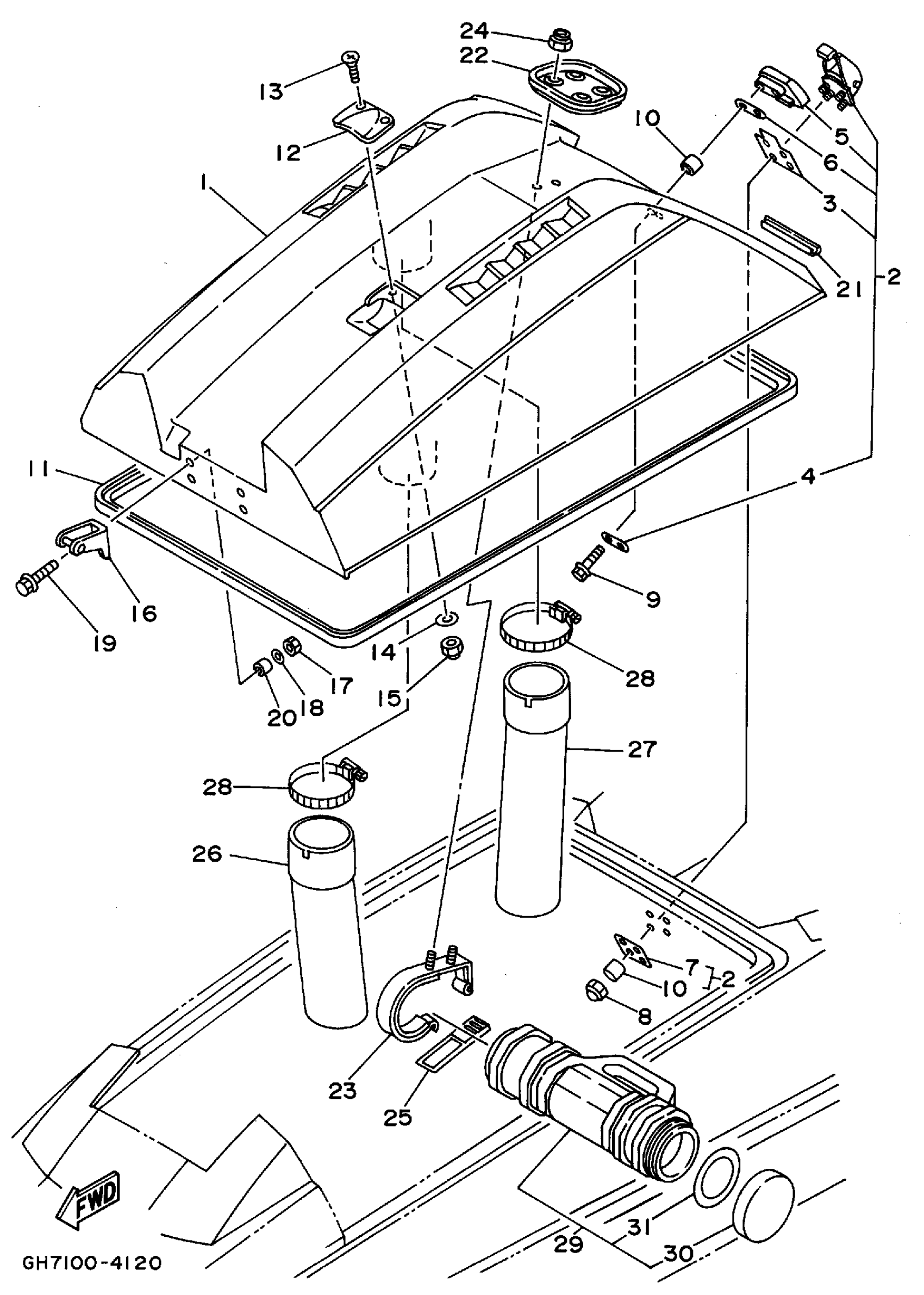

1995 Yamaha Super JET (SJ700T) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

EW2-U5160-00-P0

1
Out of stock

2

HATCH LOCK ASSY

EW2-62840-01-00

1
Out of stock

3

. PACKING, HATCH LOCK

EW2-62845-00-00

1

$6.46

In stock

4

. PLATE, HATCH LOCK

EW2-62846-00-00

1

$5.54

In stock

5

. HOOK, HATCH LOCK

EW2-62843-00-00

1

$23.99

In stock

6

. PACKING, HOOK

EW2-62847-00-00

1

$4.62

In stock

7

. PLATE, HOOK

EW2-62848-00-00

1

$4.62

In stock

8

.. NUT

95380-05800-00

1

$2.77

In stock

9

BOLT WITH WASHER (EW2)

90119-05923-00

1

$7.26

In stock

10

COLLAR

90387-05907-00

1
Out of stock

11

PACKING 2

EW2-U2664-00-00

1
Out of stock

12

PLATE, HATCH (FL1)

A00-62858-02-00

1

$9.22

In stock

13

SCREW 3

6X6-81147-00-00

1

$3.38

In stock

14

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

15

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

16

STOPPER, HATCH 2

EW2-65136-00-00

1
Out of stock

17

NUT, U FLANGE

95604-06200-00

—

$2.35

In stock

18

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

19

BOLT,FLANGE (EW2)

90105-06903-00

—

$5.20

In stock

20

COLLAR

90387-07909-00

1
Out of stock

21

TRIM

EW2-65165-00-00

1
Out of stock

22

DAMPER, POLE

EW2-6514B-00-00

1
Out of stock

23

BASE, DAMPER POLE

EW2-65143-00-00

1
Out of stock

24

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

25

BAND, CASE 2

EW2-65145-00-00

1
Out of stock

26

HOSE, VENTILATOR 1

EW2-62136-01-00

1
Out of stock

27

HOSE, VENTILATOR 2

EW2-62137-00-00

1

$48.49

In stock

28

BAND, HOSE 68

90601-168U7-00

1
Out of stock

29

CASE 2 ASSEMBLY

EW2-65920-00-00

1
Out of stock

30

. CAP, CASE

EW2-65912-30-00

1
Out of stock

31

. PACKING, CASE

EW2-65913-00-00

1

$6.00

In stock
