1994 Yamaha Super JET (SJ700S) JET Unit Diagram

← All diagrams

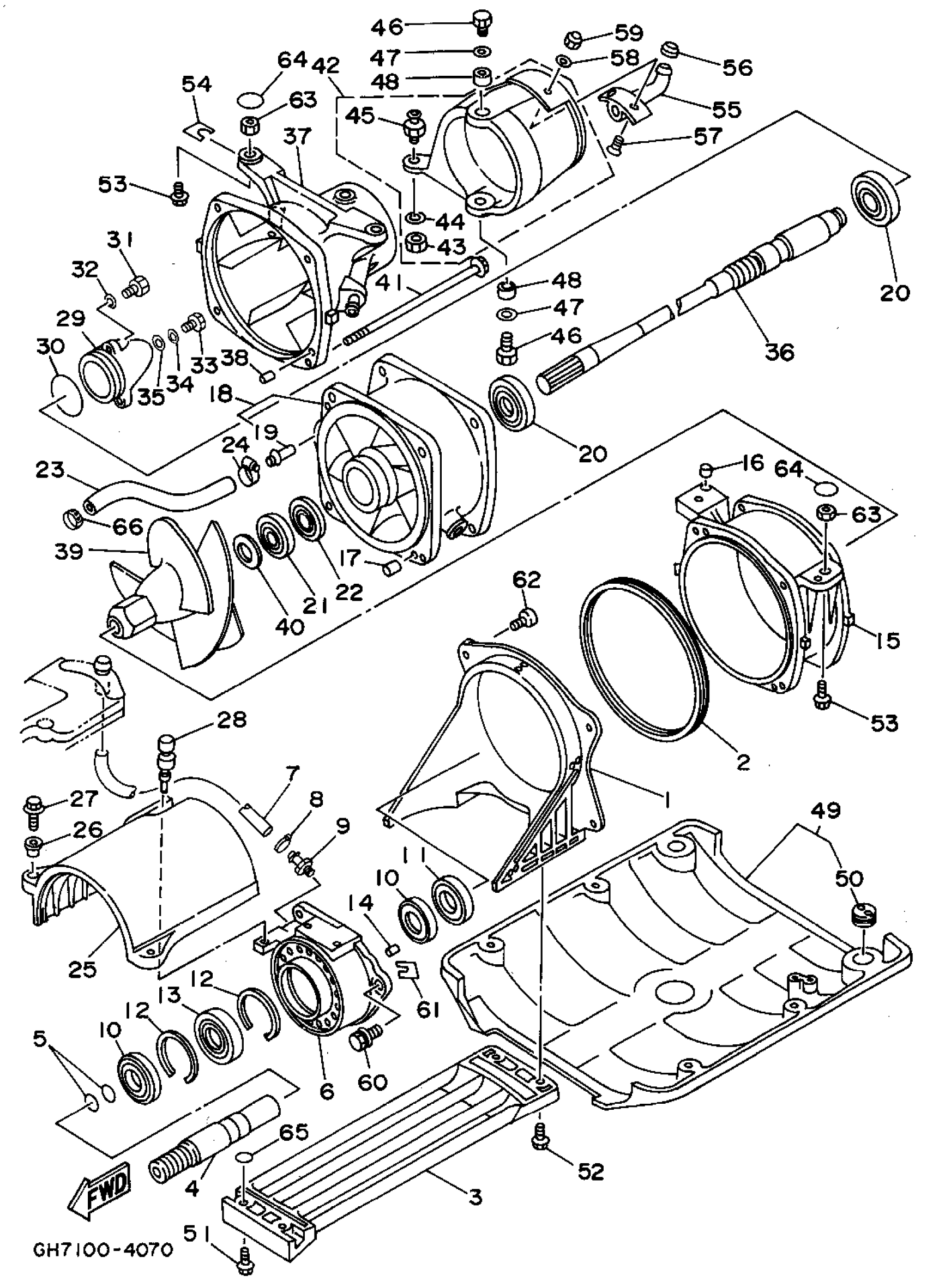

Find the part on the JET Unit diagram for your 1994 Yamaha Super JET (SJ700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Super JET (SJ700S) JET Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DUCT, INTAKE

6R7-51311-00-00

1

$124.49

In stock

2

. PACKING

6R7-51117-01-00

1

$31.67

In stock

3

SCREEN, INTAKE

6R7-51333-00-00

1

$95.99

In stock

4

SHAFT, COUPLER

6R7-51323-02-00

1

$258.49

In stock

5

O-RING(6R7)

93210-17MA4-00

1

$4.84

In stock

6

1

$436.99

In stock

7

HOSE (L445)

90445-09M21-00

1

$22.46

In stock

8

CLAMP

90465-10098-00

1

$2.24

In stock

9

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock

10

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

11

OIL SEAL

93101-24001-00

1

$31.99

In stock

12

CIRCLIP

93430-47M04-00

1

$5.53

In stock

13

BEARING(62G)

93306-205U6-00

1

$49.89

In stock

14

PIN, DOWEL(6R7)

93606-07M17-00

1
Out of stock

15

HOUSING, IMPELLER

6R7-51312-03-00

1

$266.13

In stock

16

PIN, DOWEL(6R7)

93606-07M17-00

1
Out of stock

17

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

18

DUCT, IMPELLER

62T-51315-01-00

1
Out of stock

19

. NIPPLE

6K8-51129-00-00

1

$12.99

In stock

20

BEARING (6K8)

93306-205U1-00

—

$21.14

In stock

21

OIL SEAL(6R7)

93102-25M34-00

—

$14.64

In stock

22

OIL SEAL(6R7)

93101-25M50-00

—

$22.28

In stock

23

HOSE

90445-14M11-00

1
Out of stock

24

HOSE CLAMP ASSY(62T)

90450-14M05-00

—
Out of stock

25

COVER

61X-51381-00-00

1

$23.60

In stock

26

COLLAR

90387-06M60-00

1

$8.99

In stock

27

1

$0.94

In stock

28

GROMMET(GD0)

90480-06M69-00

—

$56.95

In stock

29

CAP

62T-51326-00-00

1

$71.49

In stock

30

. O-RING

93210-46M16-00

1

$7.91

In stock

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

32

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

33

BOLT(GH1)

97080-06012-00

1
Out of stock

34

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

35

. GASKET

90430-06M03-00

1

$2.97

In stock

36

SHAFT, DRIVE

6R7-45511-01-00

1

$471.99

In stock

37

NOZZLE

6R7-51318-05-94

1

$230.99

In stock

38

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

39

IMPELLER

6R7-51321-00-8S

1

$333.49

In stock

40

SPACER

62T-51348-00-00

1

$48.10

In stock

41

BOLT, WITH WASHER

90119-06M70-00

1

$7.91

In stock

42

NOZZLE DEFLECOR

61L-51313-00-00

1

$53.14

In stock

43

NUT(650)

95380-06700-00

—

$6.17

In stock

44

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

45

. BOLT, JOINT

6R7-42316-00-00

1

$34.49

In stock

46

BOLT, HEXAGON

97095-08018-00

1

$3.23

In stock

47

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

48

COLLAR(6R7)

90387-08M06-00

—

$8.97

In stock

49

PLATE 2

F2F-6273B-09-00

1
Out of stock

50

BOLT, JACK

FK7-62732-01-00

1
Out of stock

51

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

52

BOLT, WITH WASHER

90119-06908-00

1

$2.77

In stock

53

BOLT, WITH WASHER

90119-10917-00

1
Out of stock

54

SHIM (T=0.1)

EW2-67354-00-01

1
Out of stock

54

SHIM (T=1.0)

EW2-67354-00-10

1
Out of stock

55

SPOUT

EU0-62693-02-00

1

$41.99

In stock

56

CAP, SPOUT

6R8-62695-00-00

1

$4.62

In stock

57

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

58

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

59

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

60

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

61

SHIM (T=0.5)

GD0-67249-A0-00

1

$4.45

In stock

62

SCREW, TAPPING

97780-60520-00

1

$4.15

In stock

63

NUT

90179-10925-00

1

$5.08

In stock

64

SEAL

EW2-62723-00-00

1
Out of stock

65

SEAL

EW2-62723-30-00

1

$7.38

In stock

66

NYLON CLIP 1(GH1)

90601-11583-00

—
Out of stock
