1994 Yamaha Super JET (SJ700S) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1994 Yamaha Super JET (SJ700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

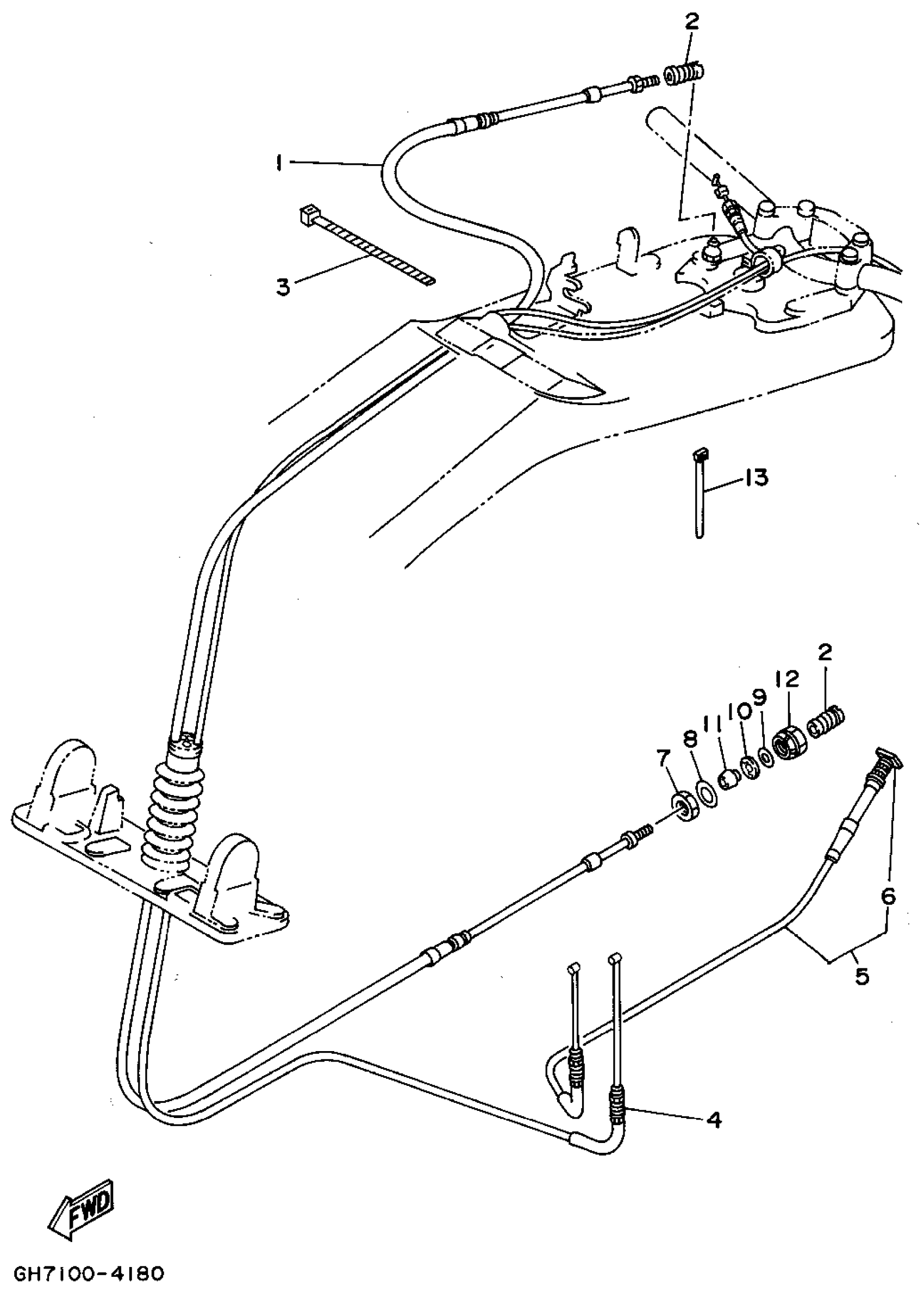

1994 Yamaha Super JET (SJ700S) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

EW2-61481-00-00

1

$201.49

In stock

2

SHAFT,JOINT BALL

EU0-61461-30-00

1

$45.13

In stock

3

BAND

90601-200U1-00

1

$2.89

In stock

4

CABLE, THROTTLE 1

EU0-U7252-01-00

1

$131.70

In stock

5

CABLE, CHOKE

EW2-U7242-39-00

1
Out of stock

6

. KNOB

EW2-67243-00-00

1

$17.99

In stock

7

. NUT, DRAIN 1

EU0-62241-30-00

1

$10.49

In stock

8

. PACKING (C)

EU0-61438-00-00

1

$8.45

In stock

9

. WASHER 30

EU0-61446-00-00

1

$4.62

In stock

10

. STOPPER

EU0-61486-00-00

1

$5.93

In stock

11

. SEAL, PIPE 30

EU0-61435-00-00

1

$8.70

In stock

12

. CAP

EU0-62694-00-00

1

$14.49

In stock

13

BAND (EU0)

90601-20009-00

1

$6.46

In stock
← JET Unit Steering →
