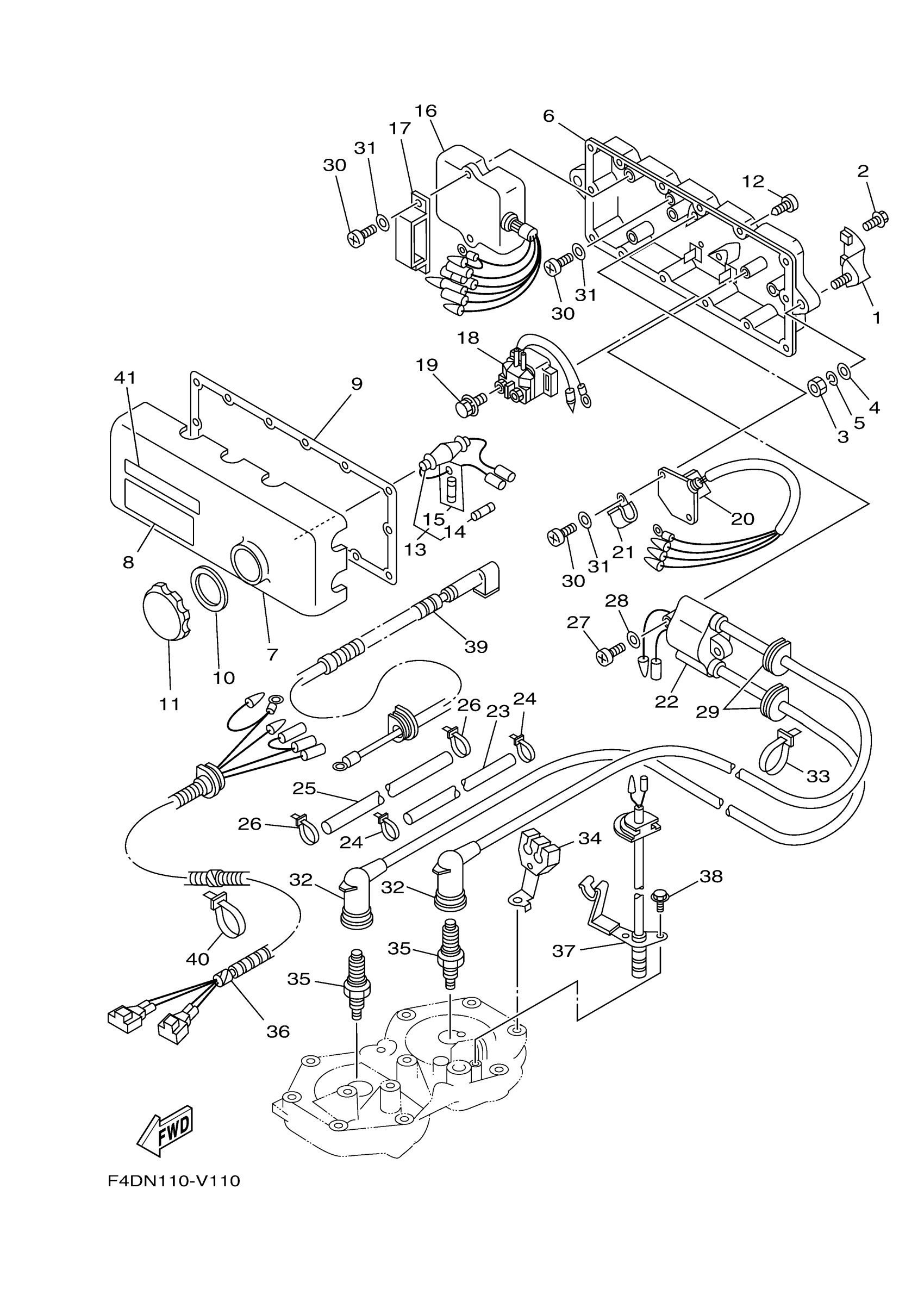

Yamaha SJ700BV (SUPER JET) F4DN 2020 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

EW2-68156-00-00

$18.99

2

BOLT, WITH WASHER

90119-06908-00

$2.58

3

NUT (661)

95380-08600-00

$6.04

4

WASHER, PLAIN

92990-08200-00

$2.52

5

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

6

HOUSING

6M6-8552A-01-8P

$135.81

7

COVER, CASE

6M6-8552E-01-00

$77.60

8

MARK 3

6B6-83623-00-00

$5.82

9

GASKET, TERMINAL

6M6-81921-00-00

$20.13

10

GASKET

6M6-81844-00-00

$10.99

11

CAP

6M6-8132W-00-00

$14.16

12

SCREW, TAPPING(65J)

97780-60625-00

$2.64

13

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$5.80

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

17

CLAMP

90464-06M29-00

$6.27

18

STARTER RELAY ASSY

68N-81940-00-00

$87.01

19

BOLT, HEXAGON W/W DEEP RECESS

97E95-06610-00

$1.04

20

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

21

CLAMP

90465-06M86-00

$6.94

22

IGNITION COIL ASSY

62E-85570-00-00

$152.35

23

TUBE, CORD

63M-82351-00-00

$13.63

24

CLAMP

90465-10098-00

$2.24

25

TUBE, CORD

63M-82351-00-00

$13.63

26

CLAMP

90465-10098-00

$2.24

27

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.71

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

GROMMET

90480-06M43-00

$5.69

30

SCREW, PAN HEAD

98580-06016-00

$2.96

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

PLUG CAP ASSY

66T-82370-00-00

$34.31

33

CLAMP

90465-10098-00

$2.24

34

CLAMP, CORD

6R7-82361-02-00

Unavailable

35

B7HS NGK 4PK

B7H-S0000-00-00

$4.66

36

EXTENSION, WIRE LEAD

6R7-82553-01-00

$72.95

37

THERMO SWITCH ASSY

6R7-82560-11-00

$164.16

38

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.86

39

WIRE, LEAD

62E-82117-20-00

$88.04

40

CLAMP (6E5)

90465-13M11-00

Unavailable

41

LABEL, CAUTION 7

60E-83627-00-00

$4.48
