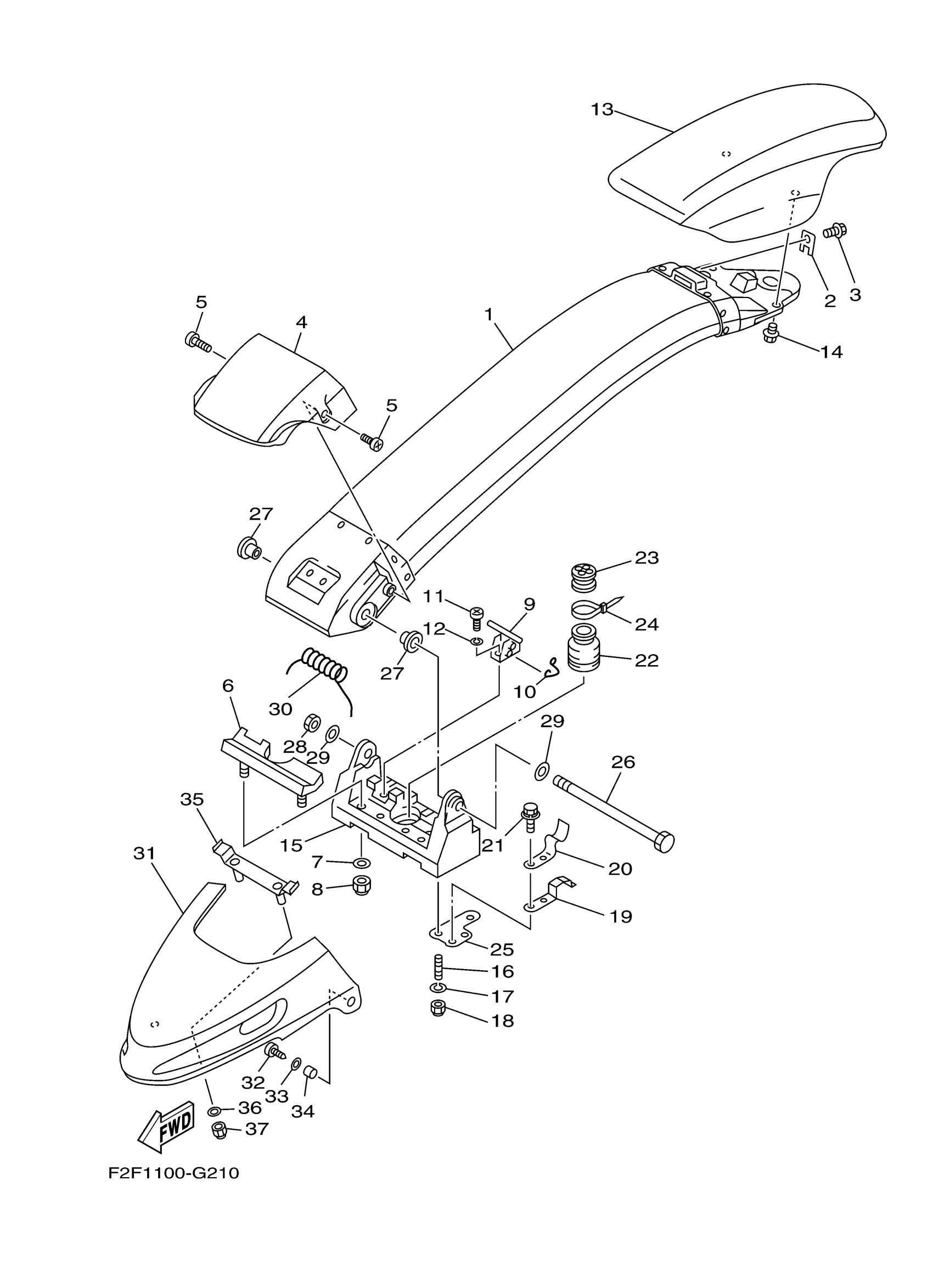

Yamaha SJ700BV (SUPER JET) F4DN 2020 STEERING 2 Diagram

#

Description
Price

1

STEERING POLE COMP.

F2F-6491A-09-P2

$1,916.65

2

STOPPER, CABLE

FX1-61468-00-00

$11.35

3

BOLT, WITH WASHER

90119-06913-00

$1.28

4

COVER,POLE

FX1-6492E-10-00

$89.38

5

SCREW(FX1)

90149-06997-00

$10.67

6

STOPPER, POLE

FX1-61337-00-00

$19.68

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

8

NUT, SELF-LOCKING

95720-06300-00

$1.82

9

STOPPER PIN ASSY

FX1-61105-00-00

$63.62

10

SPRING, TORSION

EW2-61395-30-00

$6.82

11

SCREW,PAN HEAD (646)

98580-05012-00

$5.52

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

STEERING PAD COMP

GM6-6142A-41-00

Unavailable

14

BOLT, WITH WASHER

90119-06908-00

$2.57

15

BRACKET,PIVOT

FX1-6133C-13-00

$416.65

16

BOLT, STUD

95680-08630-00

$19.68

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

. NUT, SELF-LOCKING

95720-08300-00

$3.33

19

PLATE,GUIDE

GM6-6215G-00-00

$11.48

20

STOPPER, HATCH 1

GM6-65135-00-00

$18.49

21

BOLT, WITH WASHER

90119-06900-00

$4.09

22

GROMMET

FX1-61338-00-00

$43.92

23

PACKING, CABLE

EW2-61465-00-00

$13.99

24

BAND (EU0)

90601-20009-00

$6.36

25

PLATE, BRACKET

GM6-6133B-00-00

$23.99

26

SHAFT,PIVOT

FX1-6134L-00-00

$96.95

27

BUSH

EW2-61344-01-00

$10.49

28

. NUT

95380-14700-00

$8.03

29

WASHER, PLAIN

92990-14200-00

Unavailable

30

SPRING, PIVOT

FX1-61391-00-00

$69.49

31

COVER, PIVOT 1

GM6-6492J-41-00

$377.26

32

SCREW, TAPPING

97780-60520-00

$4.09

33

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

34

COLLAR(GH1)

90387-06916-00

Unavailable

35

BRACKET

GM6-64949-00-00

$22.71

36

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

37

NUT, SELF-LOCKING

95720-06300-00

$1.82
