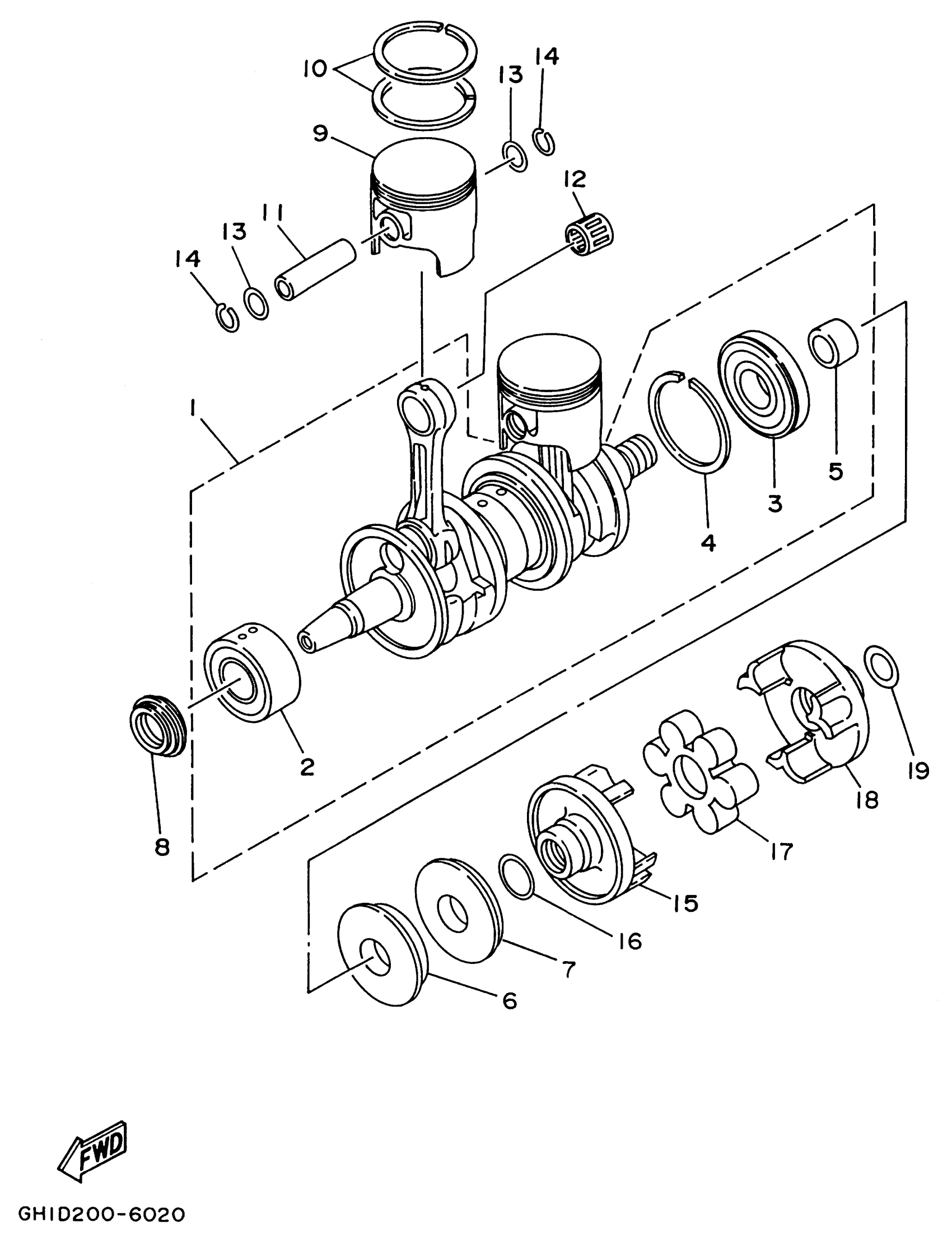

Yamaha SJ700AU (SUPER JET) 1996 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

62T-11400-02-00

$1,406.05

2

BEARING(8AB)

93305-30601-00

$188.82

3

BEARING(6M6)

93306-307U3-00

$72.67

4

CIRCLIP (834)

93440-80023-00

$12.59

5

. COLLAR, DRIVE SHAFT

62T-45526-00-00

$22.59

6

. OIL SEAL

93102-36M33-00

$15.55

7

. OIL SEAL

93101-36M46-00

$17.41

8

. OIL SEAL

93103-32M01-00

$14.81

9

PISTON (STD)

61X-11631-02-93

$110.59

9

PISTON (0.25MM O/S)

61X-11635-02-00

$103.02

9

PISTON (0.50MM O/S)

61X-11636-02-00

$101.50

10

PISTON RING SET (STD)

61X-11603-01-00

$56.99

10

PISTON RING SET (0.25MM O/S)

61X-11604-01-00

$58.99

10

PISTON RING SET (0.50MM O/S)

61X-11605-01-00

$61.99

11

PIN, PISTON

61X-11633-00-00

$18.52

12

BEARING, CYLINDRICAL(62T)

93310-320U2-00

$34.68

13

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

14

CIRCLIP (8H0)

93450-21053-00

Unavailable

15

FLANGE, COUPLING

6M6-45813-32-8P

$125.74

16

SEAL

62T-45127-01-00

Unavailable

17

RUBBER SHAFT COUPLING

61X-4581J-00-00

$96.95

18

FLANGE, COUPLING

6M6-45813-22-8P

$127.26

19

WASHER, PLATE(61X)

90201-24M02-00

Unavailable
