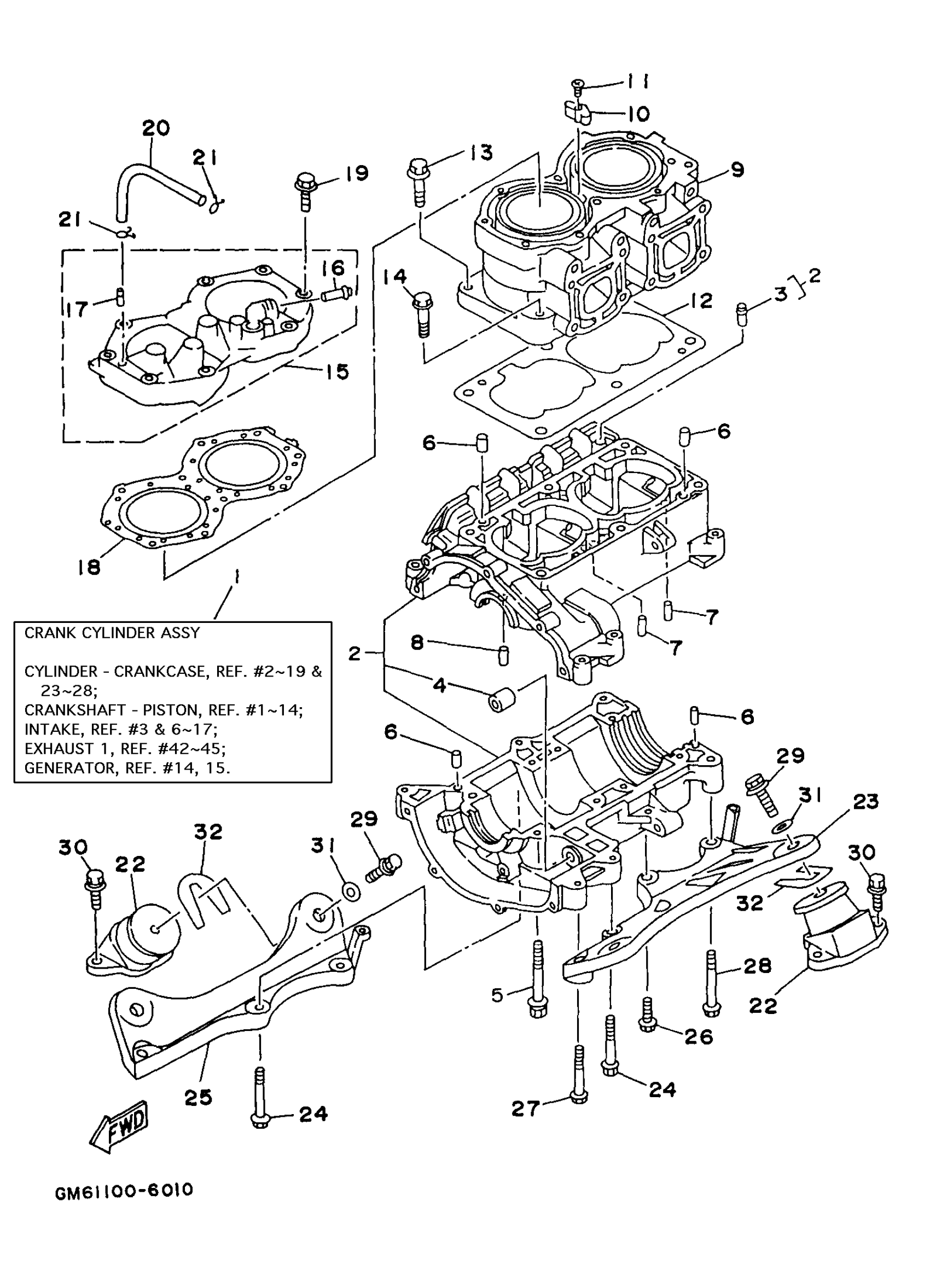

Yamaha SJ700AU (SUPER JET) 1996 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

64V-W0090-02-8S

$3,574.61

2

CRANKCASE ASSY

62T-15100-00-00

$792.52

3

NIPPLE

62T-14251-10-00

$4.31

4

. BUSH, SOLID

90380-12M29-00

Unavailable

5

BOLT, WITH WASHER

90119-08M55-00

$3.03

6

PIN, DOWEL (614)

93606-12019-00

$3.50

7

PIN (2H7)

93603-10049-00

Unavailable

8

PIN, DOWEL (8H1)

93604-07141-00

$1.29

9

CYLINDER 1

61X-11311-01-8S

$767.15

10

ANODE

6E5-11325-00-00

$4.52

11

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

12

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

13

BOLT, WITH WASHER

90119-10M56-00

$10.04

14

BOLT (6F5)

90119-10M07-00

$4.21

15

HEAD, CYLINDER 1

64U-11111-00-8S

$349.24

16

. NIPPLE

6K8-51129-00-00

$9.87

17

. PIPE, JOINT

6R7-14485-00-00

$11.93

18

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$56.00

19

BOLT, WITH WASHER

90119-08019-00

$5.00

20

HOSE (L200)

90445-07M19-00

Unavailable

21

CLIP

90467-06016-00

$3.08

22

MOUNT RUBBER

6R7-44517-00-8S

$86.17

23

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$129.84

24

BOLT, WITH WASHER

90119-10M23-00

$10.04

25

BRACKET, REAR UPPER 1

6R7-21425-01-00

$137.30

26

BOLT, WITH WASHER

90119-10M00-00

$8.56

27

BOLT, WITH WASHER

90119-10M01-00

$8.94

28

BOLT, WITH WASHER

90119-10M03-00

$8.94

29

BOLT, WITH WASHER

90119-08904-00

$3.02

30

BOLT, WITH WASHER

90119-08038-00

$4.72

31

PLATE

EU0-67324-00-00

$10.99

32

SHIM (T=0.1)

EU0-67354-A0-00

$4.31

32

SHIM (T=0.3)

EU0-67354-B0-00

$5.17

32

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

32

SHIM (T=1.0)

EU0-67354-D0-00

$3.88

32

SHIM (T=2.0)

EU0-67354-E0-00

$3.88
