1990 Yamaha Super JET (SJ650D) Hull - Deck 2 Diagram

← All diagrams

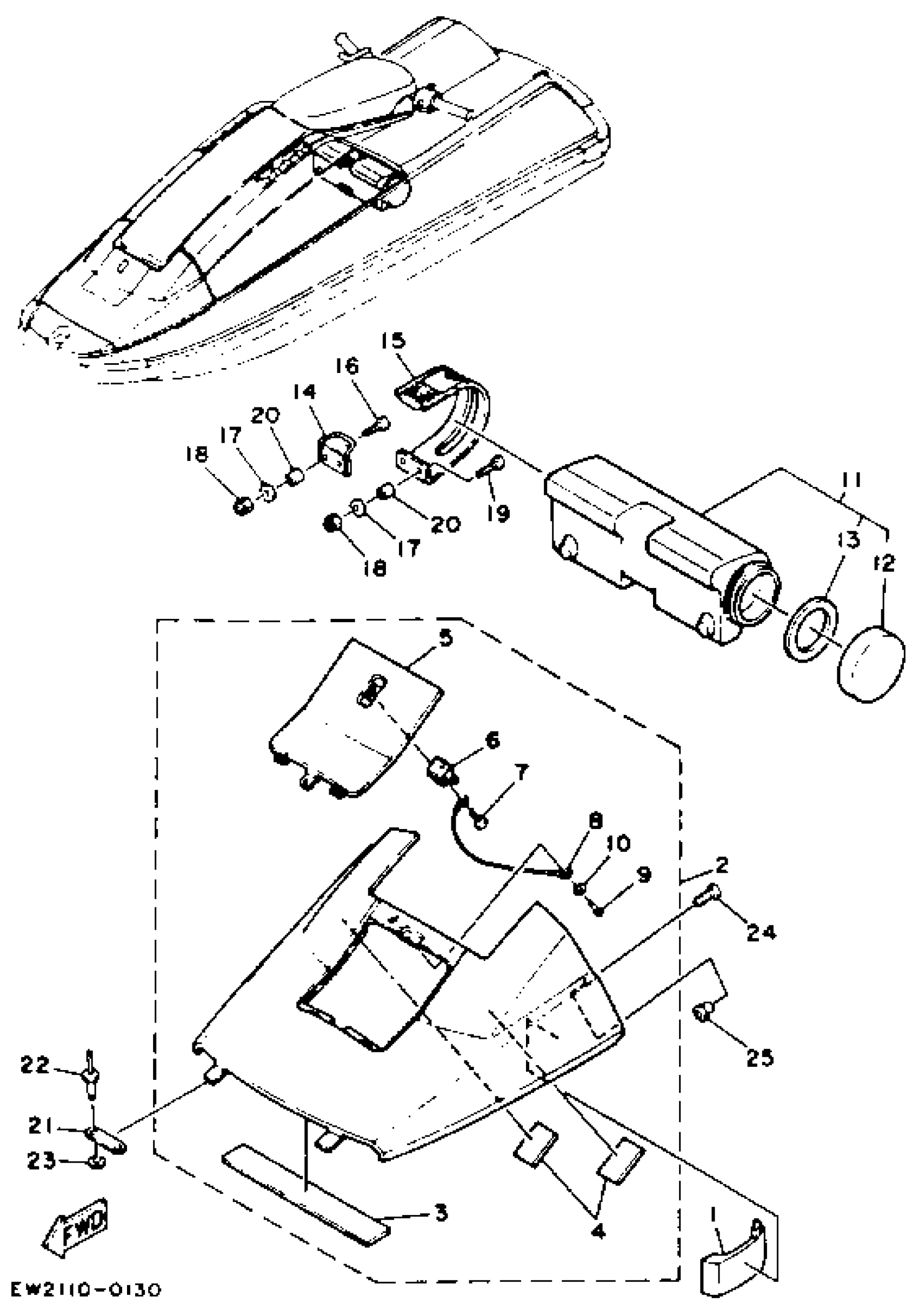

Find the part on the Hull - Deck 2 diagram for your 1990 Yamaha Super JET (SJ650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Super JET (SJ650D) Hull - Deck 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PROTECTOR

EW2-68953-00-00

1
Out of stock

2

BOW COVER ASSEMBLY

EW2-65210-00-00

1
Out of stock

3

. PAD 1 (FR)

EW2-65212-00-00

1
Out of stock

4

. PAD 2

EW2-65213-00-00

1

$11.99

In stock

5

. COVER, TANK CAP

EW2-65221-00-00

1
Out of stock

6

LOCK ASSY

1HX-21780-01-00

1
Out of stock

7

SCREW, TAPPING(MG5)

90164-04031-00

1
Out of stock

8

. STRING, LID

EW2-65226-00-00

1
Out of stock

9

RIVET, BLIND

90267-409U5-00

1
Out of stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

CASE 1 ASSEMBLY

EW2-65910-00-00

1
Out of stock

12

. CAP, CASE

EW2-65912-00-00

1

$23.99

In stock

13

. PACKING, CASE

EW2-65913-00-00

1

$6.00

In stock

14

BRACKET, CASE

EW2-65915-00-00

1
Out of stock

15

BAND, CASE

EW2-65919-00-00

1
Out of stock

16

SCREW, PN/HD.W/WSHR

97680-05216-00

1
Out of stock

17

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

18

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

19

SCREW, BIND

98980-05020-00

1
Out of stock

20

COLLAR

90387-05907-00

1
Out of stock

21

PLATE

EW2-65219-00-00

1
Out of stock

22

RIVET, BLIND

90267-409U3-00

1
Out of stock

23

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

24

SCREW

90149-05963-00

1
Out of stock

25

COLLAR

90387-06906-00

1
Out of stock
