1990 Yamaha Super JET (SJ650D) Hull - Deck 1 Diagram

← All diagrams

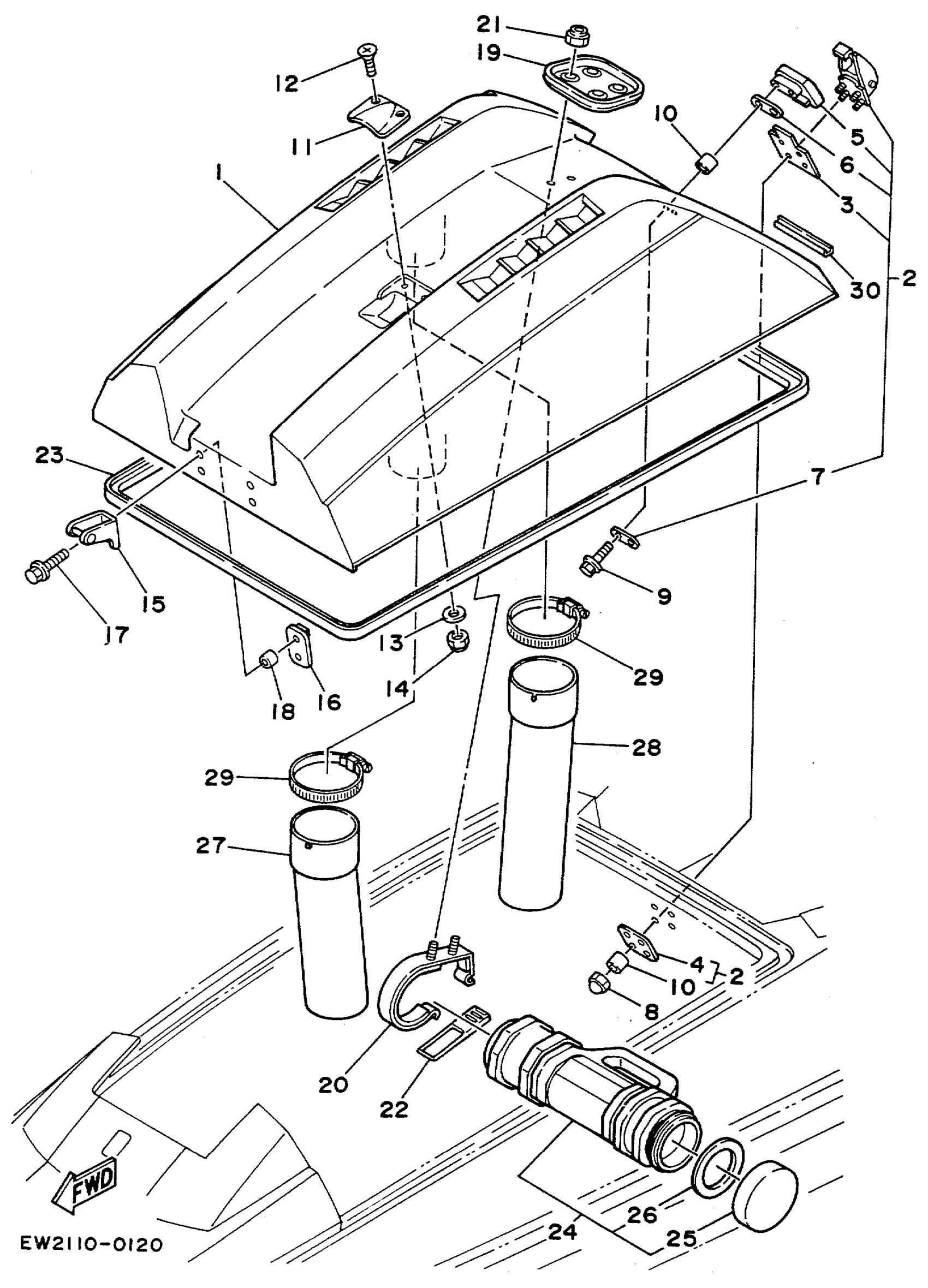

Find the part on the Hull - Deck 1 diagram for your 1990 Yamaha Super JET (SJ650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Super JET (SJ650D) Hull - Deck 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP

EW2-U5160-00-00

1
Out of stock

2

HATCH LOCK ASSY

EW2-62840-01-00

1
Out of stock

3

. PACKING, HATCH LOCK

EW2-62845-00-00

1

$6.46

In stock

4

. PLATE, HATCH LOCK

EW2-62846-00-00

1

$5.54

In stock

5

. HOOK, HATCH LOCK

EW2-62843-00-00

1

$23.99

In stock

6

. PACKING, HOOK

EW2-62847-00-00

1

$4.62

In stock

7

. PLATE, HOOK

EW2-62848-00-00

1

$4.62

In stock

8

.. NUT

95380-05800-00

1

$2.77

In stock

9

BOLT WITH WASHER (EW2)

90119-05923-00

1

$7.26

In stock

10

COLLAR

90387-05907-00

1
Out of stock

11

PLATE, HATCH (FL1)

A00-62858-02-00

1

$9.22

In stock

12

SCREW 3

6X6-81147-00-00

1

$3.38

In stock

13

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

14

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

15

STOPPER, HATCH 2

EW2-65136-00-00

1
Out of stock

16

PLATE, STOPPER HATCH 2

EW2-65137-00-00

1

$18.49

In stock

17

BOLT,FLANGE (EW2)

90105-06903-00

—

$5.20

In stock

18

COLLAR

90387-07909-00

1
Out of stock

19

DAMPER, POLE

EW2-65141-00-00

1
Out of stock

20

BASE, DAMPER POLE

EW2-65143-00-00

1
Out of stock

21

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

22

BAND, CASE 2

EW2-65145-00-00

1
Out of stock

23

PACKING 2

EW2-U2664-00-00

1
Out of stock

24

CASE 2 ASSEMBLY

EW2-65920-00-00

1
Out of stock

25

. CAP, CASE

EW2-65912-30-00

1
Out of stock

26

. PACKING, CASE

EW2-65913-00-00

1

$6.00

In stock

27

HOSE, VENTILATOR 1

EW2-62136-01-00

1
Out of stock

28

HOSE, VENTILATOR 2

EW2-62137-00-00

1

$48.49

In stock

29

BAND, HOSE 68

90601-168U7-00

1
Out of stock

30

TRIM

EW2-65165-00-00

1
Out of stock
