2025 Yamaha SJ1050B F4R5 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Yamaha SJ1050B F4R5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

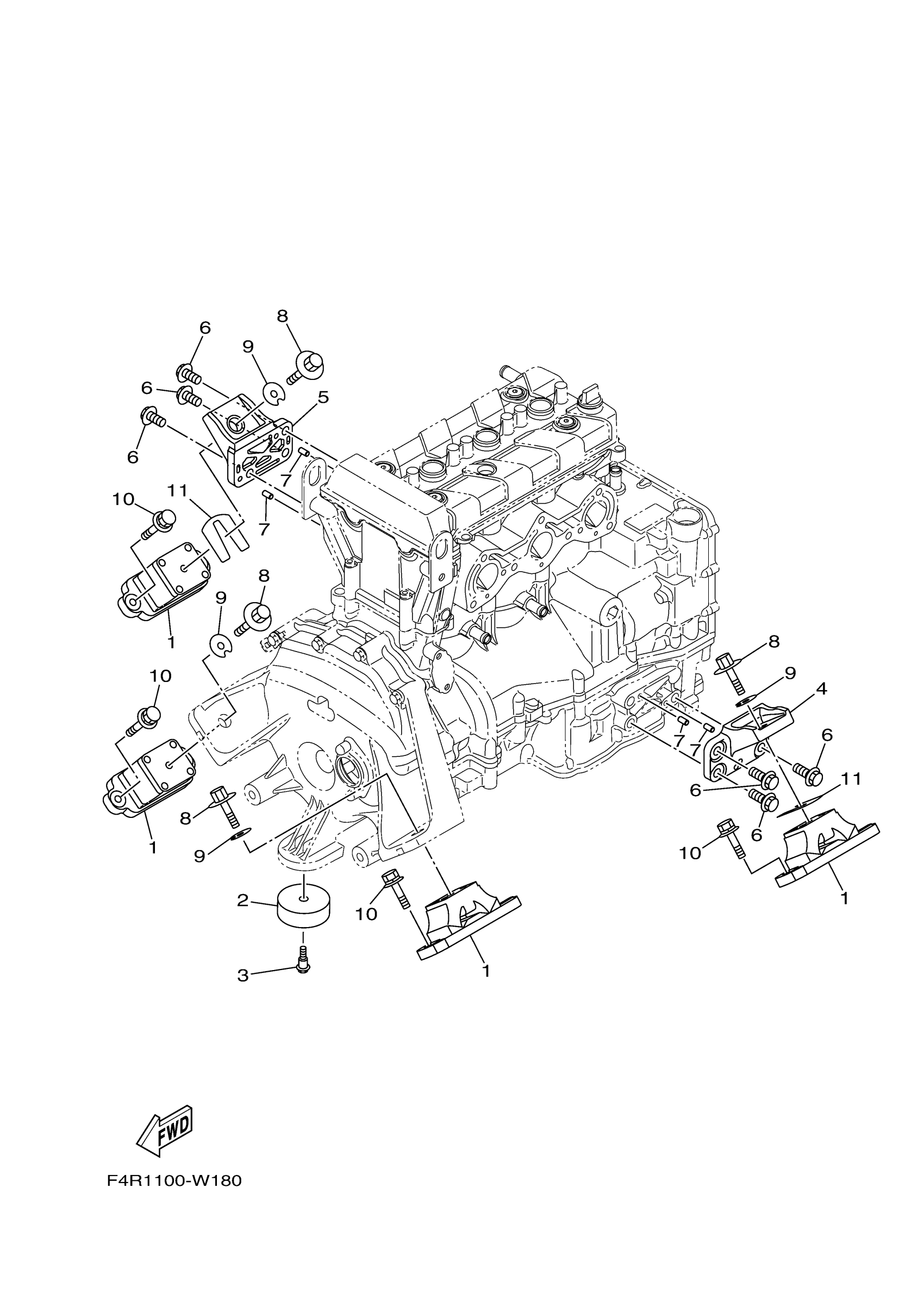

2025 Yamaha SJ1050B F4R5 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOUNT RUBBER

6GA-44517-00-00

1

$63.99

In stock

2

STOPPER, LOWER MOUNT RUBBER

6EY-44574-00-00

1

$11.99

In stock

3

BOLT

90109-06M92-00

1

$5.38

In stock

4

BRACKET 1

6EY-41661-10-00

1

$46.49

In stock

5

BRACKET 2

6EY-41662-00-00

1

$46.49

In stock

6

—

$10.68

In stock

7

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

8

BOLT, WITH WASHER

90119-08904-00

1

$3.11

In stock

9

PLATE

EU0-67324-00-00

1

$10.99

In stock

10

BOLT, WITH WASHER

90119-08904-00

1

$3.11

In stock

11

SHIM (T=0.5)

EU0-67354-C0-00

1

$4.45

In stock

11

SHIM (T=1.0)

EU0-67354-D0-00

1

$4.00

In stock
← Engine Hatch Exhaust 1 →
