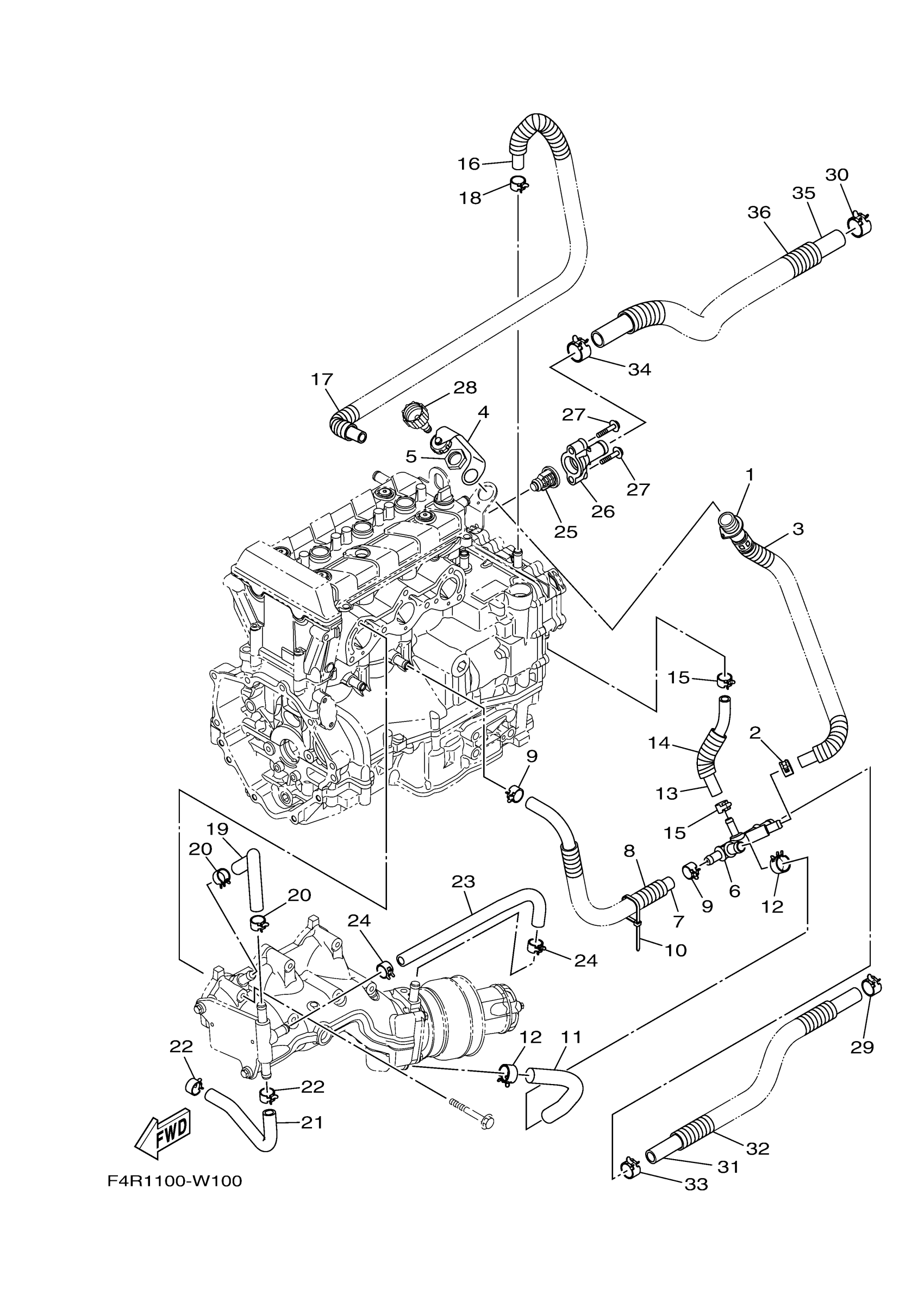

Yamaha SJ1050B F4R5 2025 EXHAUST 2 Diagram

#

Description
Price

1

JOINT ASSY

6EY-12580-00-00

$49.49

2

CLIP

90467-150A5-00

$2.64

3

HOSE (L420)

90446-24M89-00

$9.08

4

CAP,1

6EY-84385-00-00

$10.36

5

NUT

EU0-61652-00-00

$11.48

6

JOINT, HOSE 3

6EY-12584-00-00

$12.86

7

HOSE (L400)

90445-18012-00

$24.98

8

TUBE (L300)

90447-19014-00

$5.14

9

CLIP

90467-160A0-00

$2.95

10

CLAMP(3XW)

90464-35132-00

$6.77

11

HOSE (L170)

90445-21015-00

$13.99

12

CLIP

90467-200A3-00

$5.92

13

HOSE (L160)

90445-16019-00

$7.27

14

HOSE (L70)

90446-24M44-00

$3.64

15

CLIP

90467-141A3-00

$2.73

16

HOSE (L910)

90445-16026-00

Unavailable

17

TUBE (L760)

90447-19018-00

$9.08

18

CLIP

90467-160A0-00

$2.95

19

HOSE 2

6EY-12577-00-00

$14.38

20

CLIP

90467-160A0-00

$2.95

21

HOSE 4

6S5-12579-00-00

$14.44

22

CLIP

90467-160A0-00

$2.95

23

HOSE (L370)

90445-18018-00

$16.99

24

CLIP

90467-160A0-00

$2.95

25

THERMOSTAT

6D3-12411-00-00

$95.40

26

COVER, THERMOSTAT

6EY-12413-00-00

$15.49

27

BOLT, FLANGE

90105-06035-00

$2.27

28

CONDUCTION ASSY

67X-12590-A0-00

Unavailable

29

CLAMP

90465-06029-00

Unavailable

30

CLAMP

90465-06030-00

Unavailable

31

HOSE (L605)

90445-21016-00

Unavailable

32

TUBE (L530)

90447-22018-00

Unavailable

33

CLIP

90467-200A3-00

$5.92

34

CLIP

90467-240A0-00

$6.82

35

HOSE (L800)

90445-25005-00

$53.02

36

TUBE (L700)

90447-28009-00

$14.38
