Find the part on the Handlebar diagram for your 1983 Kawasaki Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

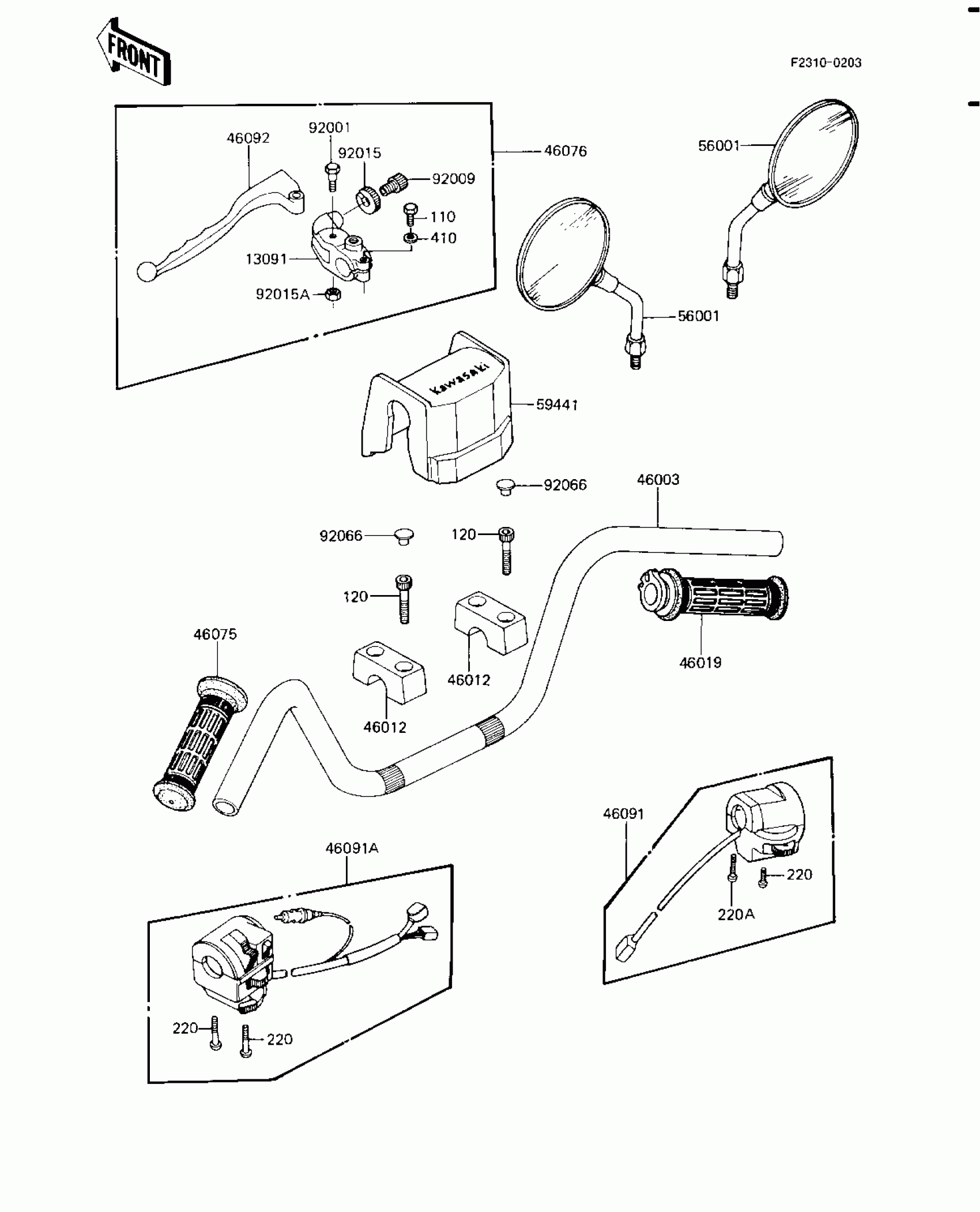

1983 Kawasaki Shaft Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

1

$51.67

In stock

46003

HANDLEBAR

46003-1076

1
Out of stock

46012

HOLDER-HANDLE

46012-1027

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1015

1

$46.19

In stock

46075

GRIP,LH

46075-1022

1

$13.34

In stock

46076

1

$58.25

In stock

46091

HOUSING-ASSY-CNTRL,RH

46091-1155

1
Out of stock

46091A

HOUSING-ASSY-CNTRL,LH

46091-1183

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-1005

1

$29.09

In stock

56001

MIRROR-ASSY

56001-1346

1
Out of stock

59441

COVER-HANDLE

59441-1010

1
Out of stock

92001

BOLT,CLUTCH LEVER

92001-1075

1

$8.03

In stock

92009

1

$12.92

In stock

92015

1

$7.04

In stock

92015A

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

92066

PLUG

92066-1216

1

$3.69

In stock

110

BOLT,6X22

110N0622

1
Out of stock

120

BOLT-SOCKET,8X30

120S0830

1
Out of stock

220

UNAVAILABLE IN PRICE BOOK

220B053SA

1
Out of stock

220A

SCREW-PAN-CROS

220B0540

1
Out of stock

410

1

$1.19

In stock
