1983 Kawasaki Shaft Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1983 Kawasaki Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

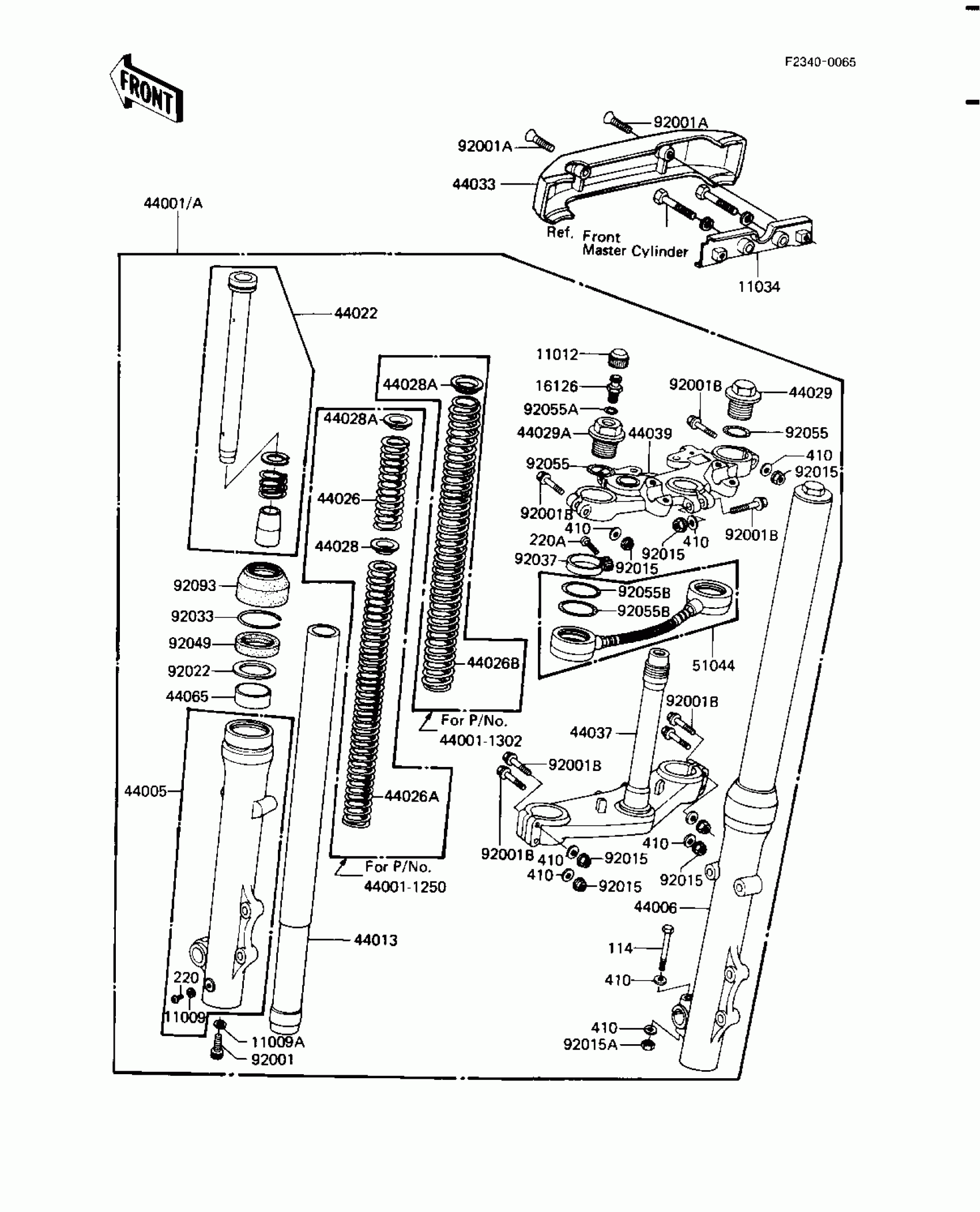

1983 Kawasaki Shaft Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FORK DRAIN PLUG

44045-002

1
Out of stock

11009A

GASKET

44045-057

1
Out of stock

11012

CAP,AIR VALVE

11012-1241

1
Out of stock

11034

BRACKET,FORK COVER

11034-1842

1
Out of stock

16126

VALVE,AIR

16126-1052

1
Out of stock

44001

FORK-FRONT

44001-1302

1
Out of stock

44001A

FORK-FRONT

44001-1302

1
Out of stock

44005

TUBE,LH,FORK OUTER

44005-1067

1
Out of stock

44006

TUBE,RH,FORK OUTER

44006-1067

1
Out of stock

44013

PIPE-FORK INNER

44013-1064

1
Out of stock

44022

CYLINDER-FORK

44022-1045

1
Out of stock

44026

SPRING-FR FORK,UPP

44026-1082

1
Out of stock

44026A

SPRING-FRONT FORK

44026-1113

1
Out of stock

44026B

SPRING-FRONT FORK

44026-1114

1
Out of stock

44028

GUIDE-FORK SPRING

44028-029

1
Out of stock

44028A

GUIDE-FORK SPRING

44028-1004

1
Out of stock

44029

CAP,FORK TOP

44029-1015

1
Out of stock

44029A

SEAT-FORK SPRING

44029-1026

1
Out of stock

44033

COVER,FORK

44033-1054

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1074

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1046

1
Out of stock

44065

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

1
Out of stock

51044

TUBE ASSY,AIR FORK

51044-1008

1
Out of stock

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

1
Out of stock

92001A

SCREW-CSK-RD-CROS

222C0518

1
Out of stock

92001B

BOLT,FLANGED,8X57

92001-1358

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1022

1
Out of stock

92015A

NUT,LOCK,8MM

92015-1124

1
Out of stock

92022

WASHER,FORK OUTER PIPE

92022-1262

1
Out of stock

92033

RING-SNAP,FORK

92033-1047

1
Out of stock

92037

CLAMP,FRONT FORK

92037-1277

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

1
Out of stock

92055

RING-O,FORK TOP CAP

92055-1051

1
Out of stock

92055A

"0" RING,AIR VALVE

92055-1094

1
Out of stock

92055B

RING-O,ROD

92055-1369

1
Out of stock

92093

SEAL

92093-1051

1
Out of stock

114

BOLT,HEX HEAD,8X55

114G0855

1
Out of stock

220

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

220A

SCREW-PAN-CROS

220B0414

1
Out of stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock
