1980 Kawasaki Shaft Swing Arm/shock Absorbers Diagram

← All diagrams

Find the part on the Swing Arm/shock Absorbers diagram for your 1980 Kawasaki Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

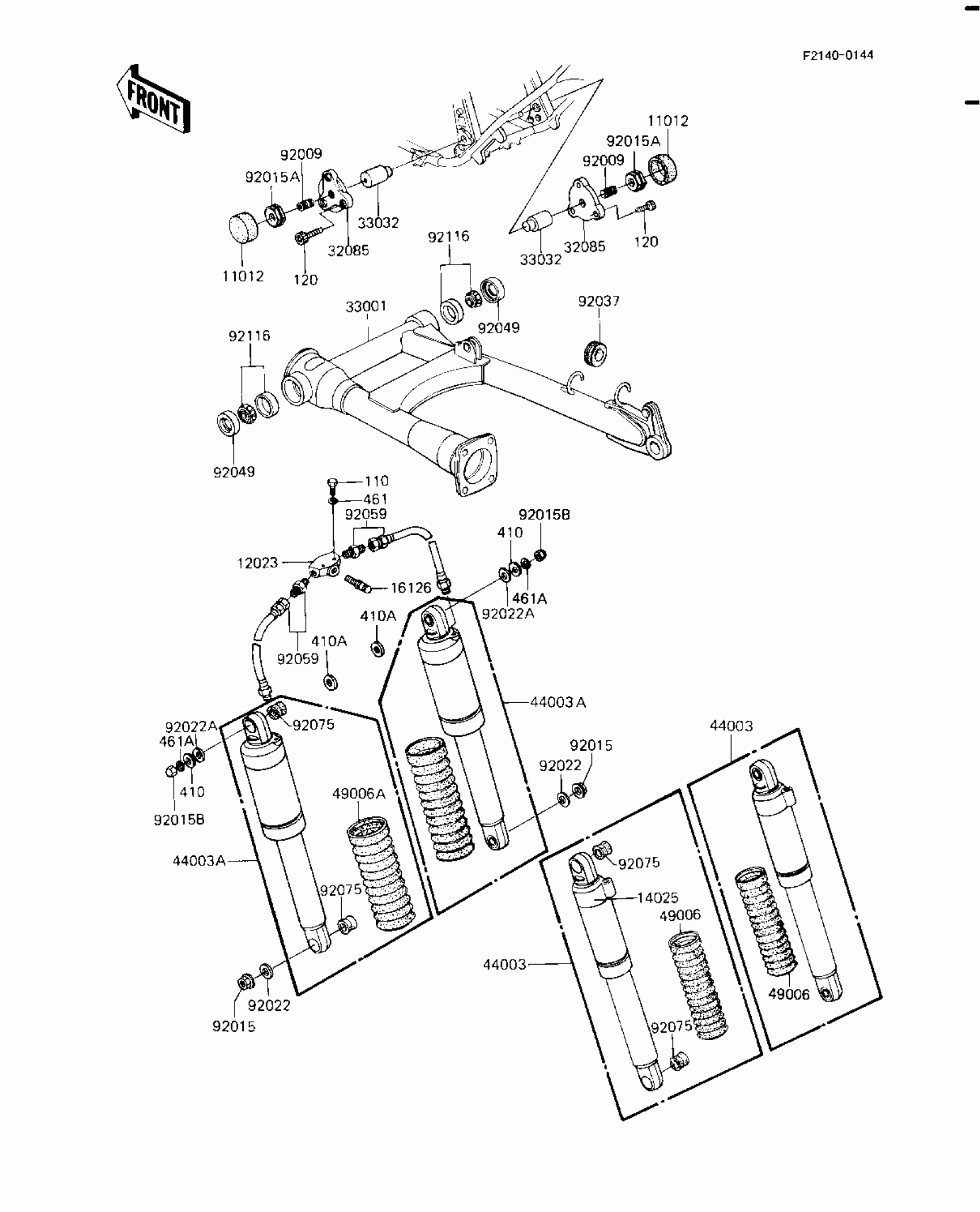

1980 Kawasaki Shaft Swing Arm/shock Absorbers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP,SWING ARM

11012-1069

1
Out of stock

2

BOLT-SOCKET,8X20

120S0820

1
Out of stock

3

STOPPER,SWING ARM

32085-1035

1
Out of stock

4

ARM,SWING

33001-1029

1
Out of stock

5

SHAFT,SWING ARM

33032-1008

1
Out of stock

6

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

7

NUT,SWING ARM FITTING

92015-1066

1
Out of stock

8

SEAL-OIL,26406

92049-1030

1
Out of stock

9

BEARING-ROLLER,4T30203E1

92116-1001

1
Out of stock

10

SHOCK ABSBR RR

45014-1029

1
Out of stock

10

SHOCK ABSBR RR

45014-1045

1
Out of stock

11

BUSHING,SHOCK ABSORBER

45017-020

1
Out of stock

12

DAMPER,SHOCKABSORBER

92075-1141

1
Out of stock

13

WASHER-PLAIN-SMALL,12MM

410B1200

1
Out of stock

14

WASHER-SPRING,12MM

461F1200

1
Out of stock

15

NUT,FLANGED,10MM

92015-1415

1
Out of stock

16

NUT,CAP,12MM

92020-014

1
Out of stock

17

WASHER,PLAIN,12 X 22

92022-1057

1
Out of stock
