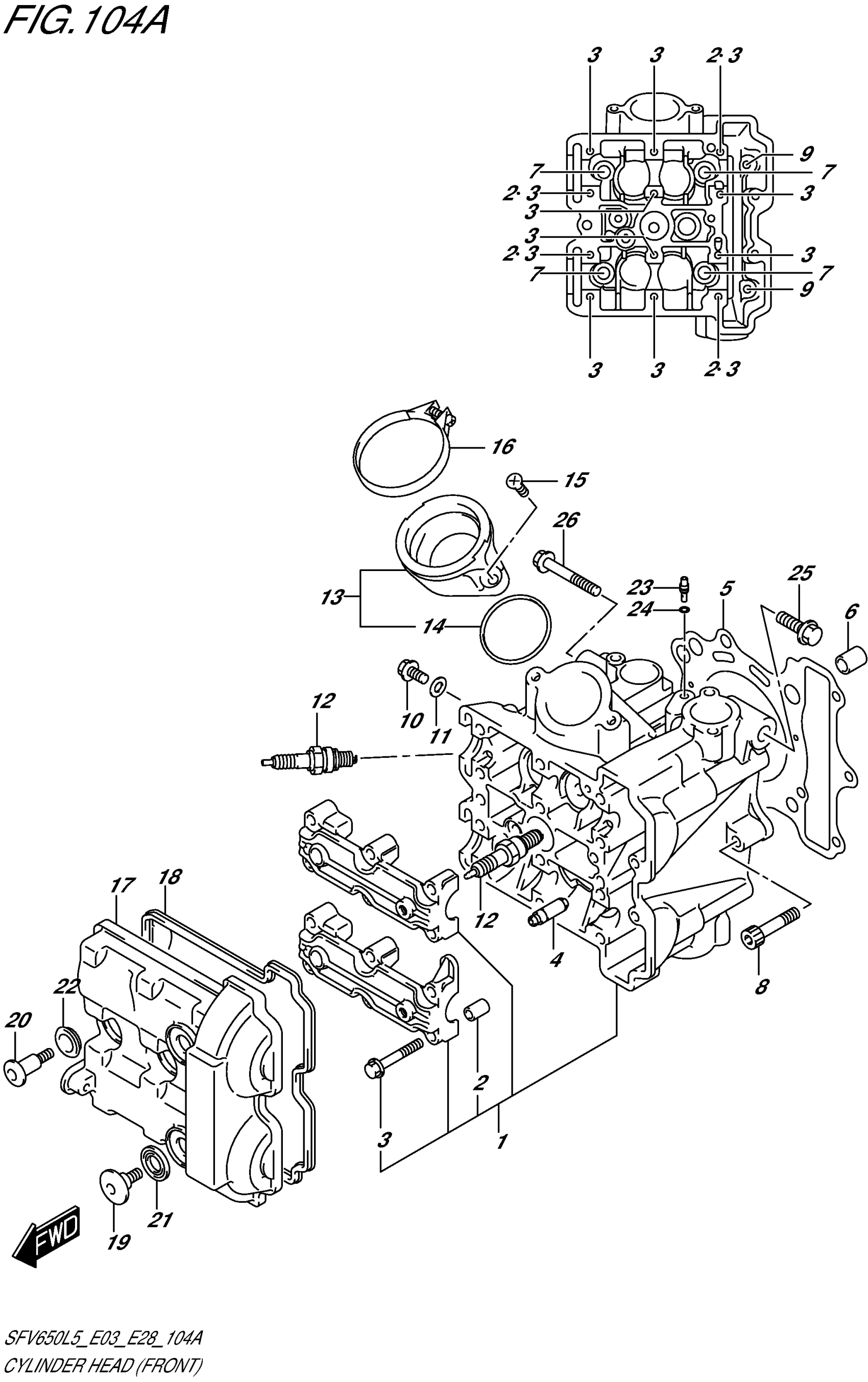

Suzuki SFV650AL5 (2015) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER FRONT This part replaces 11101-44H00.

11101-44H01

Unavailable

2

PIN (8X11)

09206-08001

$1.77

3

BOLT (6X40)

09103-06266

$2.13

4

GUIDE, VALVE (OS:0.3) | OPT

11115-18D72

$32.60

5

.GASKET,CYLINDER HEAD

11141-20F00

$40.97

6

PIN

04211-13189

$2.19

7

BOLT,CYL HEAD (L:160)

11117-44H00

$22.27

8

BOLT

07120-0640A

$3.32

9

BOLT (6X70)

09103-06103

$2.61

10

BOLT (6X12)

09103-06222

$2.28

11

GASKET (5.8X13X1.2)

09168-06023

$2.01

12

SPARK PLUG (CR8EIA-9) | NGK

09482-00556

$9.65

12

SPARK PLUG (IU24D) | DENSO

09482-00555

$16.44

12

SPARK PLUG (CR9EIA-9) | OPT NGK

09482-00558

$10.79

12

SPARK PLUG (IU27D) | OPT DENSO

09482-00557

$15.20

12

SPARK PLUG (CR7EIA-9) | OPT NGK

09482-00554

$10.64

13

PIPE ASSY,INTAKE FRONT This part replaces 13101-17G10.

13101-17G11

$62.45

14

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$6.33

15

SCREW

02122-0616B

$1.98

16

CLAMP,INTAKE PIPE

13827-40H01

$17.33

17

COVER,CYLINDER HEAD FR

11171-19F20

$170.48

18

.GASKET,CYLINDER HEAD COVER

11173-19F01

$31.21

19

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.07

20

BOLT (7X31)

09106-07010

$4.26

21

WASHER

11191-27E00

$3.72

22

CUSHION,HEAD COVER BOLT

11192-13E00

$3.97

23

JET(8)

09493-80005

$17.57

24

O RING (D:1.2,ID:4)

09280-04004

$1.76

25

BOLT (10X25)

09103-10378

$2.89

26

BOLT

01550-1070A

$4.03
